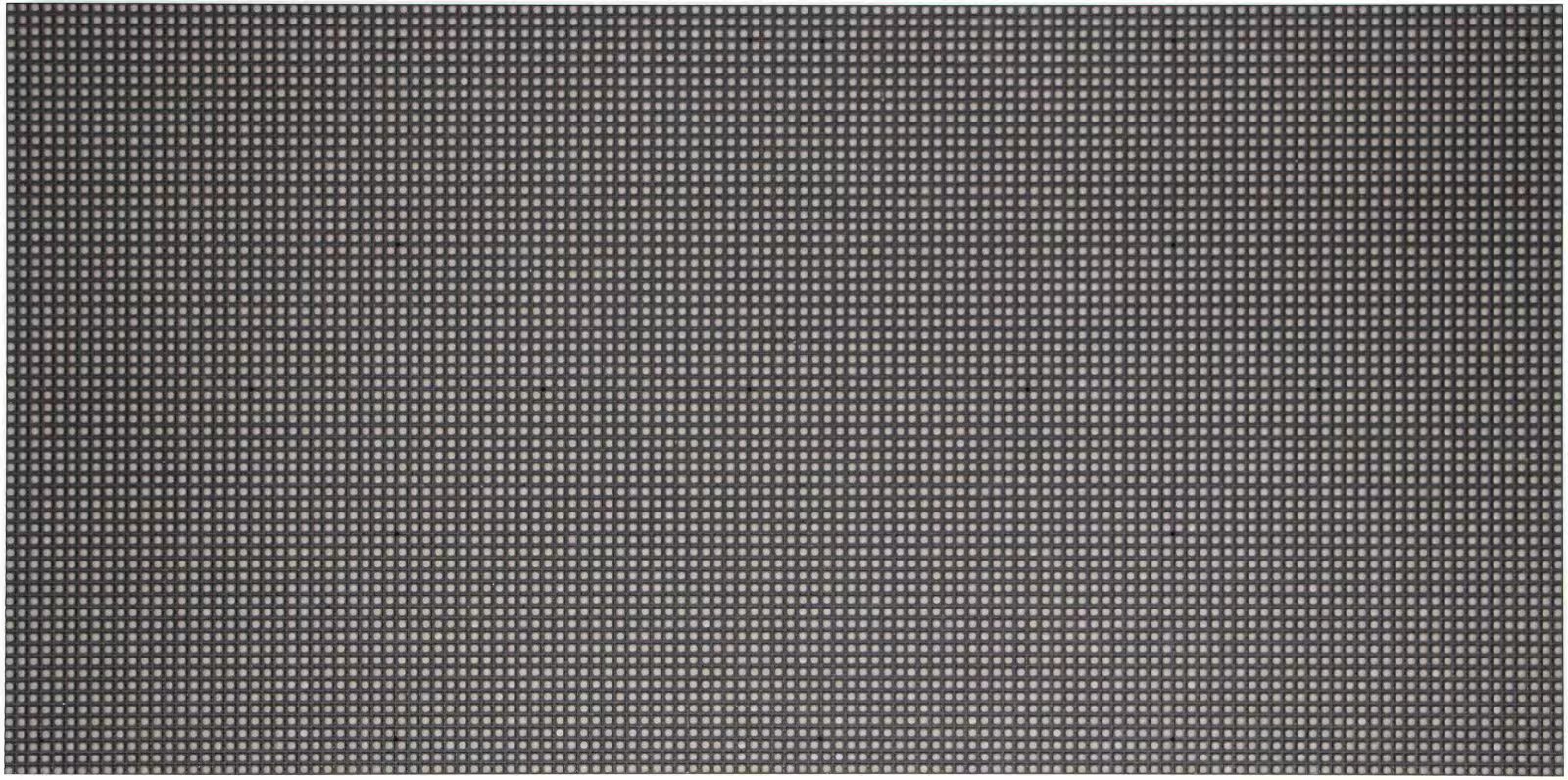

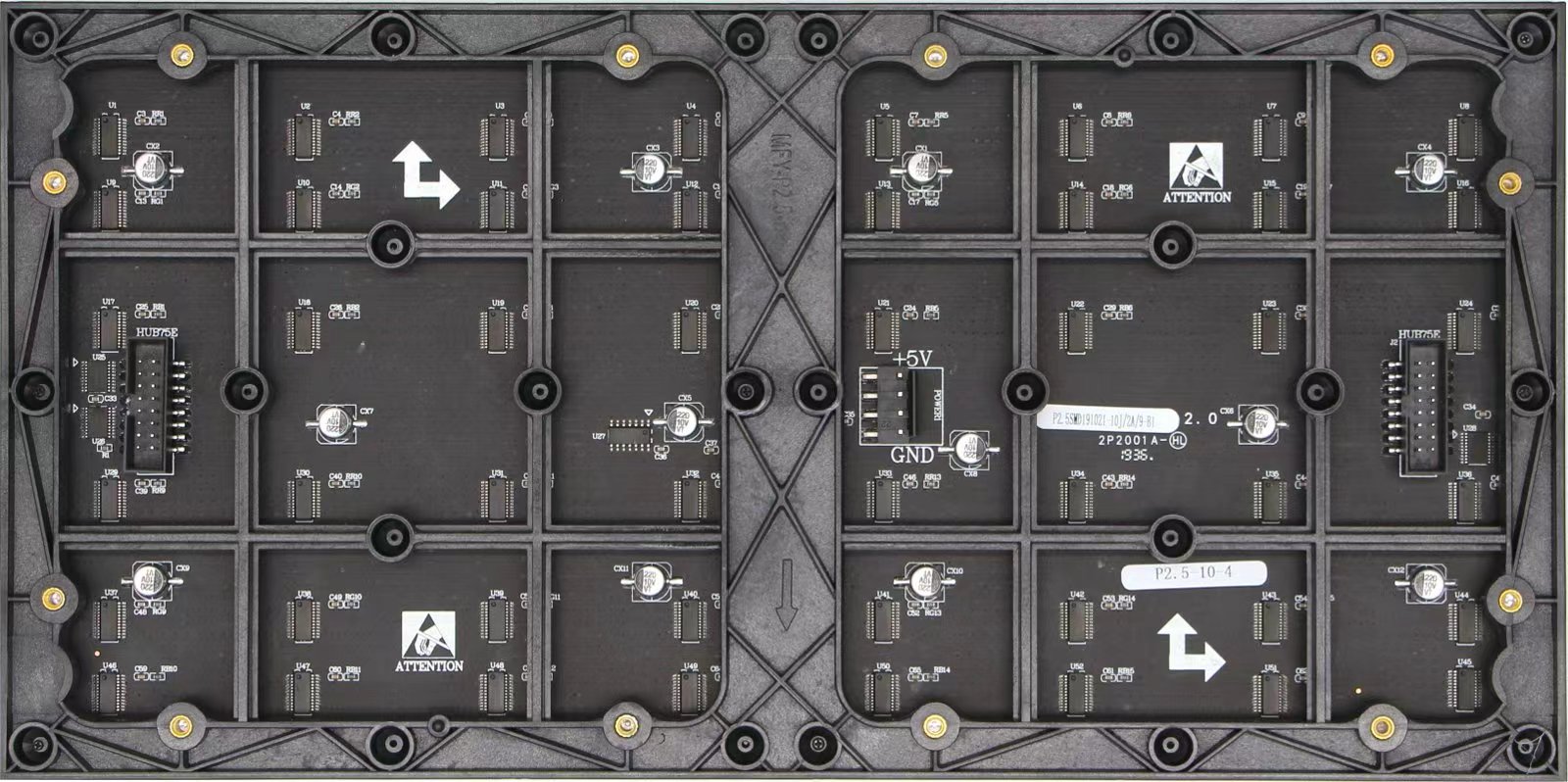

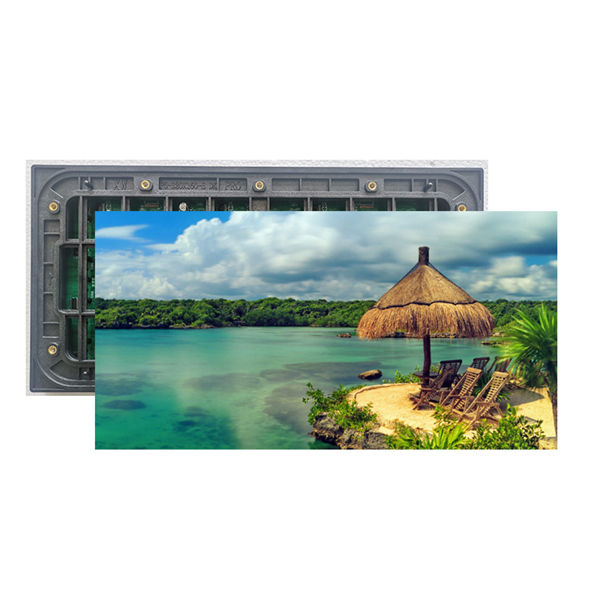

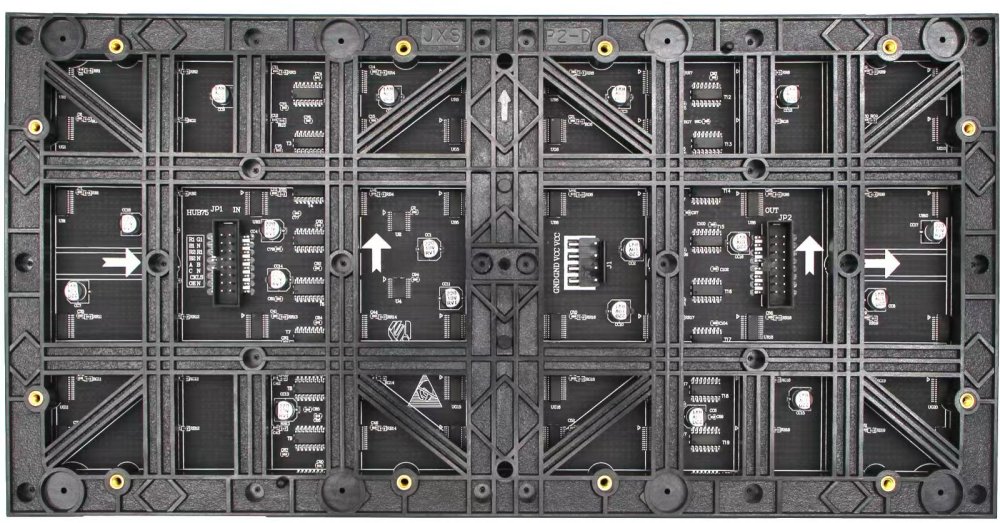

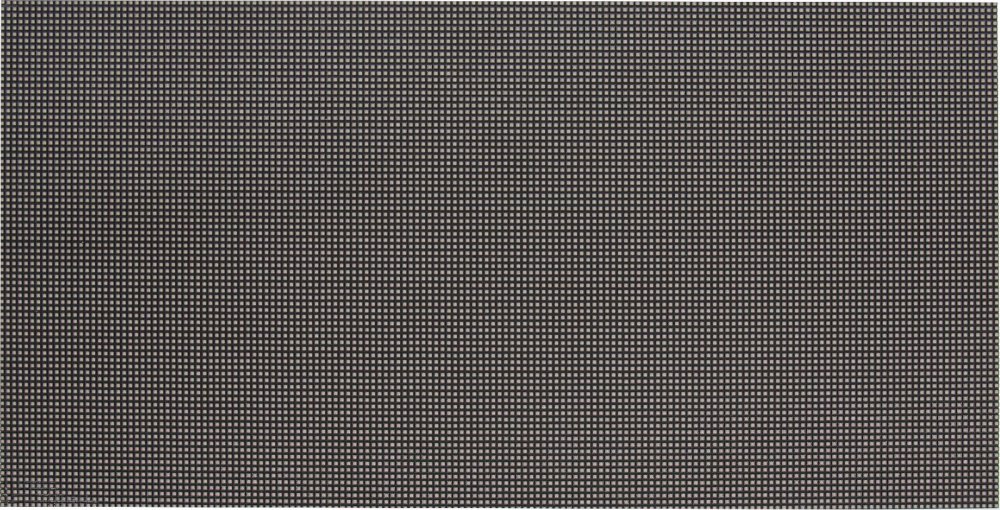

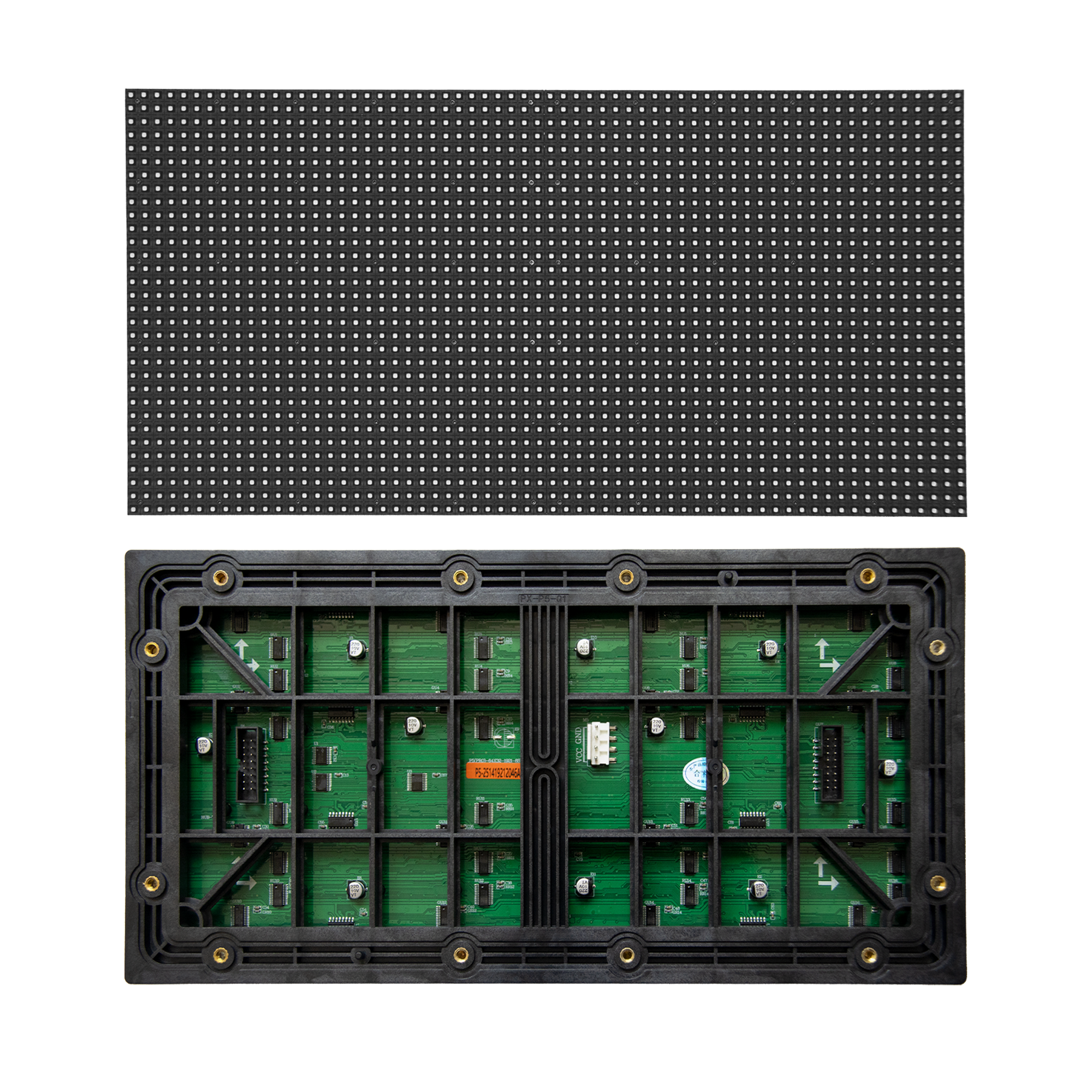

p5 outdoor 320x160mm led module

Name: p5 outdoor 320x160mm led module
Brand: Shenzhen Genesis Display Technology Co., Ltd
SKU: O-P5-3216
Price: 16 USD
Availability: InStock

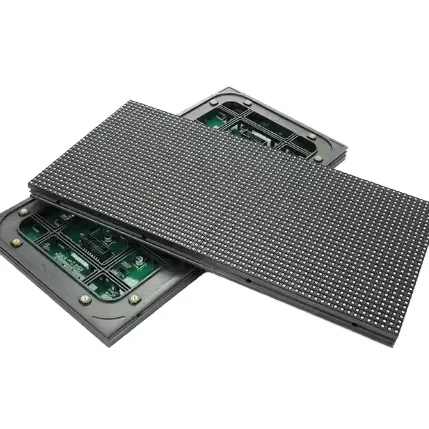

Outdoor P5 LED Module – 320×160mm

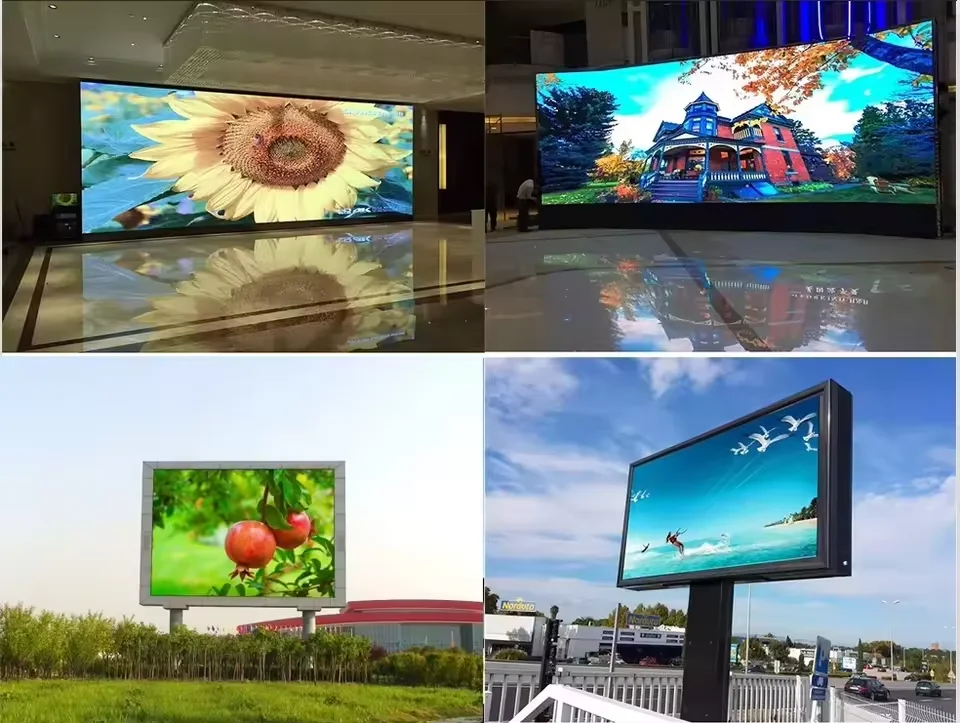

Standard-size outdoor SMD module with 5mm pixel pitch, 64×32 resolution, 4500–6500 nits brightness, IP65 waterproof, and 3840Hz+ refresh. Built for sunlight-readable fixed installations: billboards, building facades, roadside signage, and DOOH screens. Screw-lock / magnetic mount, NovaStar & Colorlight compatible.

0.0 (0 Reviews)

0 Sold

$16.00

GET $2.00 OFF ON ORDERS OVER $5.00

Get it

9EHSFFLE

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

GET 1% OFF ON ORDERS OVER $1,000.00
GET 2% OFF ON ORDERS OVER $4,000.00

Add to Favorites (0)

1/1

Description

Product Parameter

Outdoor p5 8s 320x160mm led module specifications
led lamp	1920RGB	chip color		brightness	wave length	led lamp configuration
		R		300-600 mcd	618-625 nm	copper wire, iron substrate
		G		500-1000 mcd	522-534 nm
		B		60-130 mcd	462-474 nm

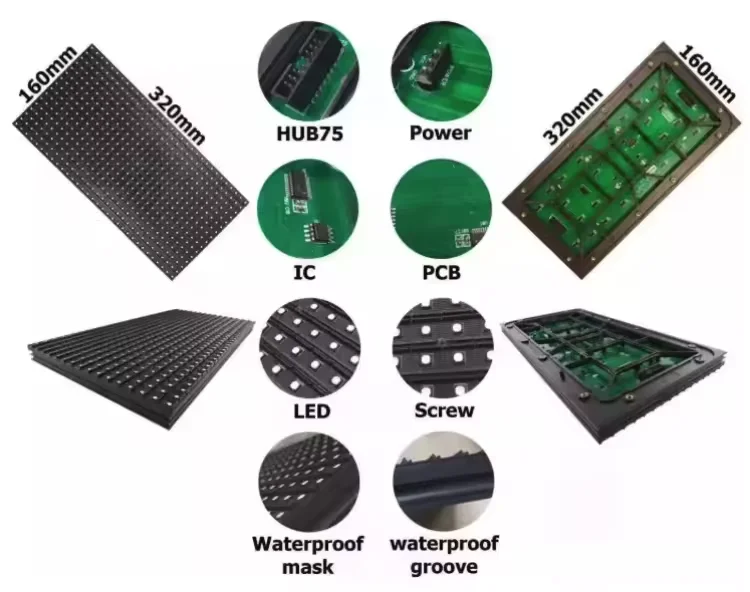

module size	320x160mm			module resolution	64x32=2048 dots
signal port	HUB75E			pixel density	40000 dots/sqm
view angle	(H/V)140°/140°			nearest view distance	>5m
driver ic	5125/16208		scan mode	8s	refresh rate		1920Hz
screw model	M4*8			brightness	>5000 cd

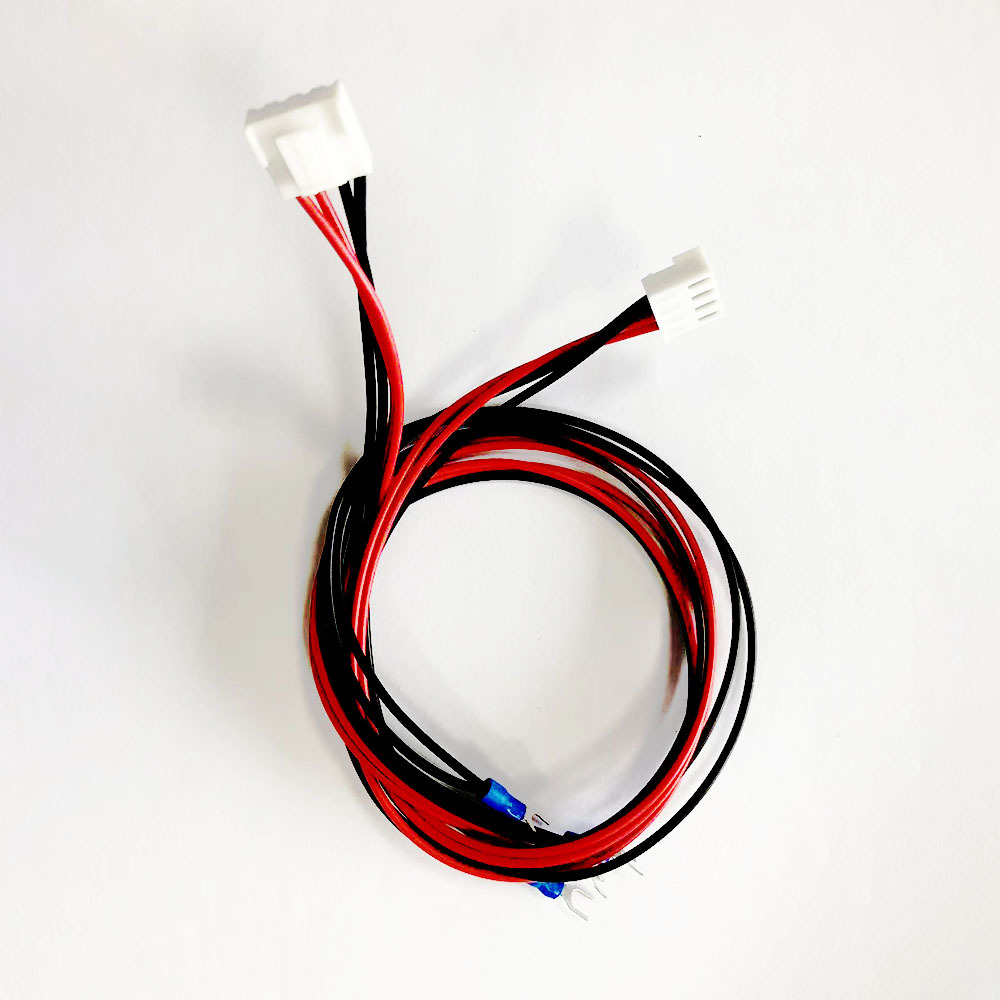

module power cable 30cm main cable with 20 cm tow cables, total 50cm
module max power supply <40W, suggest 5V40A power supply load 4 pcs modules, 5V60A power supply load <6 pcs modules
