| LED Type |
SMD1010(GOB) |
SMD1212(GOB) |
SMD1515(GOB) |
SMD1515 |
SMD1515 |
SMD1515 |
SMD2020 |
| Physical density(Dot/sqm) |
640000 |
409600 |
262144 |
160000 |
147456 |
112896 |
65536 |
| Module resolution |
200X200 |
160X160 |
128X128 |
100X100 |
96X96 |
84X84 |
64X64 |
| Module dimension(mm) |
250X250 |
250X250 |
250X250 |
250X250 |
250X250 |
250X250 |
250X250 |

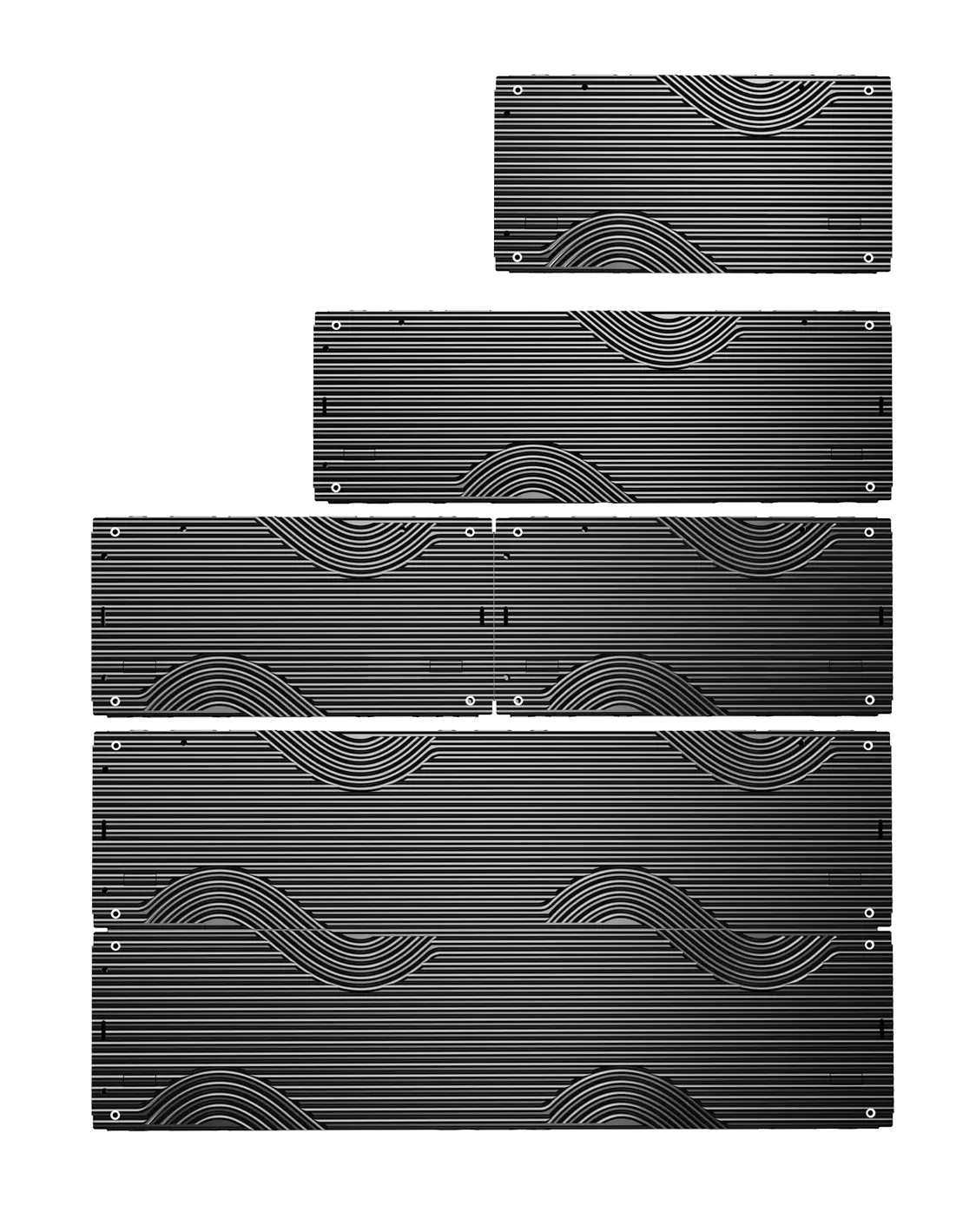

| Panel size(mm) |
1000×500×33
1000×250×33
750×250×33
500×250×33 |
1000×500×33
1000×250×33
750×250×33
500×250×33 |
1000×500×33
1000×250×33
750×250×33
500×250×33 |
1000×500×33
1000×250×33
750×250×33
500×250×33 |
1000×500×33
1000×250×33
750×250×33
500×250×33 |
1000×500×33
1000×250×33
750×250×33
500×250×33 |
1000×500×33
1000×250×33
750×250×33
500×250×33 |
| Module quantity(W×H) |
4X2/4X1/3X1/2X1 |
4X2/4X1/3X1/2X1 |
4X2/4X1/3X1/2X1 |
4X2/4X1/3X1/2X1 |
4X2/4X1/3X1/2X1 |
4X2/4X1/3X1/2X1 |
4X2/4X1/3X1/2X1 |
| Panel resolution |
800×400
800×200
600×200
400×200 |
640×320
640×160
480×160
320×160 |
512×256
512×128
384×128
256×128 |
400×200
400×100
300×100
200×100 |
384×192
384×96
288×96
192×96 |
336×168
336×84
252×84
168×84 |
256×128
256×64
192×64
128×64 |

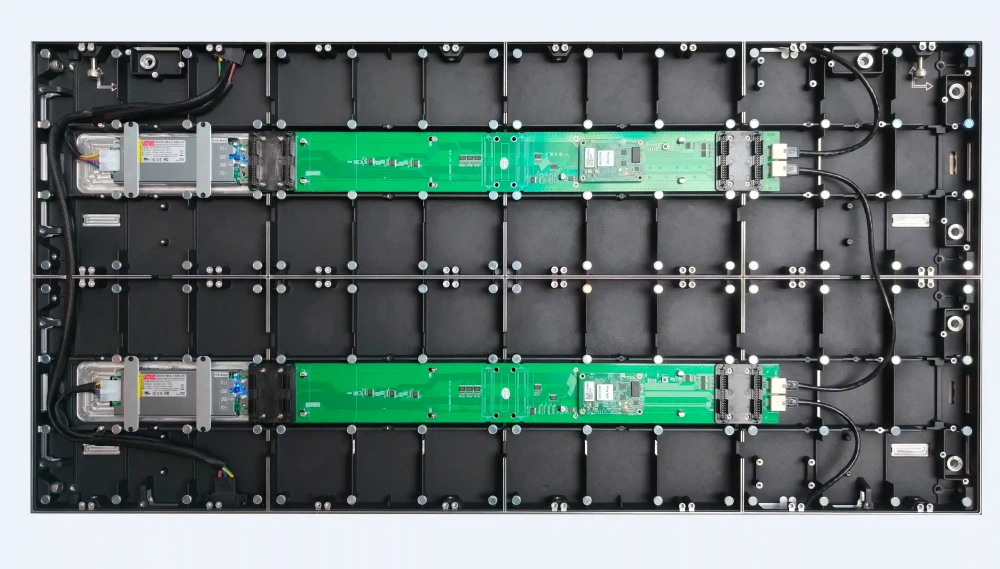

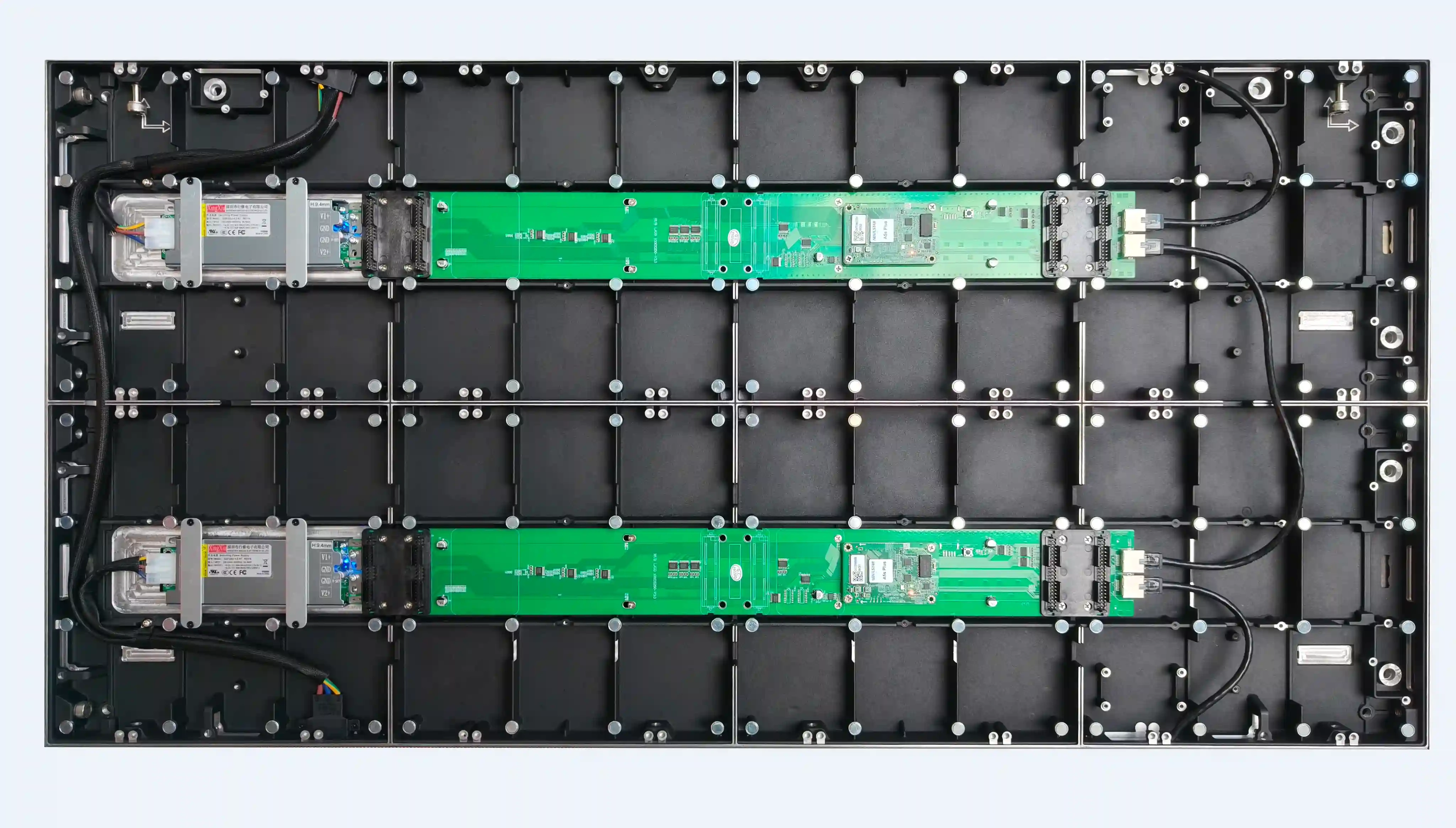

| Maintenance |
Front access |
Front access |
Front access |
Front access |
Front access |
Front access |
Front access |
| Cabinet material |
Die cast aluminum |
Die cast aluminum |
Die cast aluminum |
Die cast aluminum |
Die cast aluminum |
Die cast aluminum |
Die cast aluminum |
| Single point brightness correction |
Have |
Have |
Have |
Have |
Have |
Have |
Have |
| Brightness(Nits) |
600 |
600 |
800 |
800 |
800 |
800 |
800 |
| Color temperature(K) |
5000-12000 Optional |
5000-12000 Optional |
5000-12000 Optional |
5000-12000 Optional |
5000-12000 Optional |
5000-12000 Optional |
5000-12000 Optional |
| Viewing angle(V/H) |
160°/160° |
160°/160° |
160°/160° |
160°/160° |
160°/160° |
160°/160° |
160°/160° |
| Brightness/Color uniformity |
≥97% |
≥97% |
≥97% |
≥97% |
≥97% |
≥97% |
≥97% |
| Contrast |
10000:1 |
10000:1 |
10000:1 |
10000:1 |
10000:1 |
10000:1 |
10000:1 |
| Frame frequency |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
| Drive mode |
1/50 Scan |
1/40 Scan |
1/32 Scan |
1/25 Scan |
1/32 Scan |
1/28 Scan |
1/16 Scan |
| Gray level |
14/16 Optional |
14/16 Optional |
14/16 Optional |
14/16 Optional |
14/16 Optional |
14/16 Optional |
14/16 Optional |
| Refresh rate(Hz) |
3840 |
3840 |
3840 |
3840 |
3840 |
3840 |
3840 |
| Max. power consumption(W/sqm) |
350 |
350 |
350 |
350 |
350 |
350 |
350 |
| Avg. power consumption(W/sqm) |
100-200 |
100-200 |
100-200 |
100-200 |
100-200 |
100-200 |
100-200 |
| Protection level |
IP31 |
IP31 |
IP31 |
IP31 |
IP31 |
IP31 |
IP31 |
| Power input |
AC90-264V,47-63Hz |
AC90-264V,47-63Hz |
AC90-264V,47-63Hz |
AC90-264V,47-63Hz |
AC90-264V,47-63Hz |
AC90-264V,47-63Hz |
AC90-264V,47-63Hz |
| Working temperature/humidity(℃/RH) |
-20~60℃/10%~85% |
-20~60℃/10%~85% |
-20~60℃/10%~85% |
-20~60℃/10%~85% |
-20~60℃/10%~85% |
-20~60℃/10%~85% |
-20~60℃/10%~85% |
| Storage temperature/humidity(℃/RH) |
-20~60℃/10%~85% |
-20~60℃/10%~85% |
-20~60℃/10%~85% |
-20~60℃/10%~85% |
-20~60℃/10%~85% |
-20~60℃/10%~85% |
-20~60℃/10%~85% |
| Cert |
CCC/CE/RoHS/FCC/CB/TUV/IEC |
CCC/CE/RoHS/FCC/CB/TUV/IEC |
CCC/CE/RoHS/FCC/CB/TUV/IEC |
CCC/CE/RoHS/FCC/CB/TUV/IEC |
CCC/CE/RoHS/FCC/CB/TUV/IEC |
CCC/CE/RoHS/FCC/CB/TUV/IEC |
CCC/CE/RoHS/FCC/CB/TUV/IEC |
