| Pixel Pitch | P2.976 | P3.91 | P4.81 | P6.25 | P7.81 | P10.42 |
|---|---|---|---|---|---|---|
| SMD Type | SMD1415 | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Physical Density(dots/㎡) | 112896 | 65536 | 43264 | 25600 | 16384 | 9216 |
| Module Resolution | 168X84 | 128X64 | 104X52 | 80X40 | 64X32 | 48X24 |
| Module Size (mm) | 500X250 | 500X250 | 500X250 | 500X250 | 500X250 | 500X250 |
| Panel Dimension(W×H/mm) | 1000X1000X83 (Customizable for 1500 width and 500/750 height) | 1000X1000X83 (Customizable for 1500 width and 500/750 height) | 1000X1000X83 (Customizable for 1500 width and 500/750 height) | 1000X1000X83 (Customizable for 1500 width and 500/750 height) | 1000X1000X83 (Customizable for 1500 width and 500/750 height) | 1000X1000X83 (Customizable for 1500 width and 500/750 height) |
| Panel Resolution | 336X336 | 256X256 | 208X208 | 160X160 | 128X128 | 96X96 |

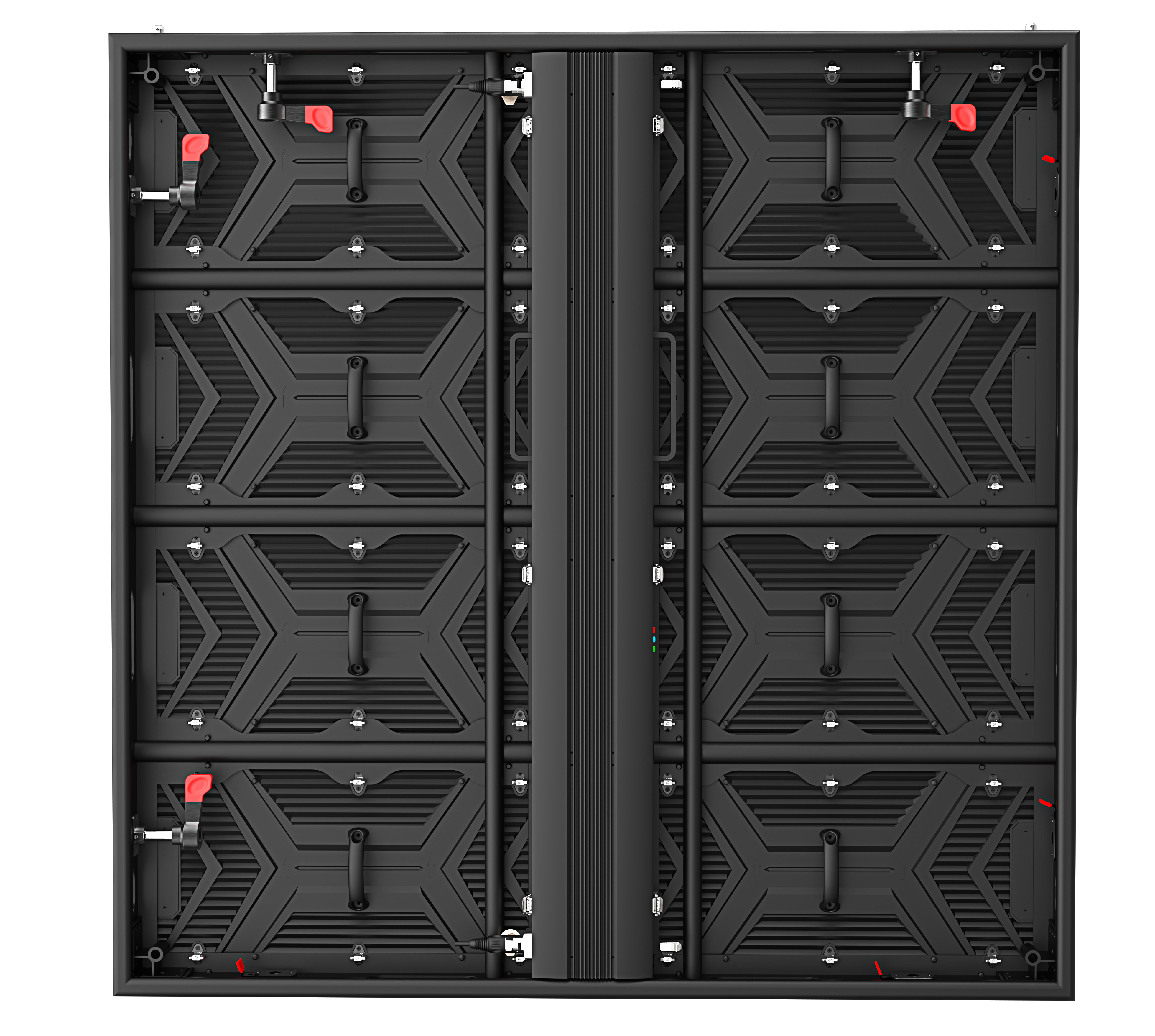

| Module quantity(W×H) | 2X4 | 2X4 | 2X4 | 2X4 | 2X4 | 2X4 |
| Panel Weight(kg) | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 |

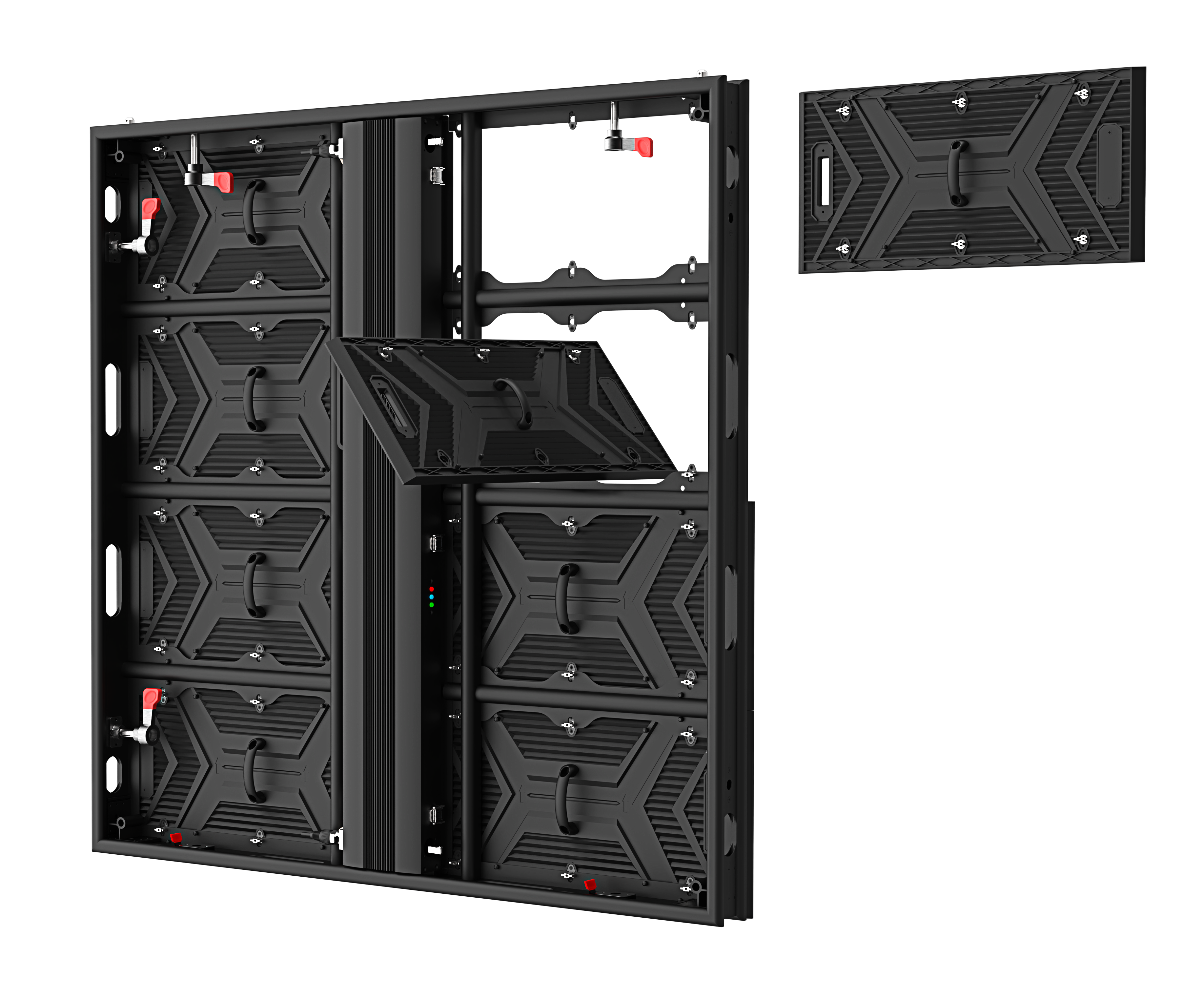

| Maintenance Mode | Front & Rear | Front & Rear | Front & Rear | Front & Rear | Front & Rear | Front & Rear |
| Cabinet material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Brightness(Nits) | 4500 | 5500-10000(Optional) | 5500-10000(Optional) | 5500-10000(Optional) | 5500-10000(Optional) | 5500-10000(Optional) |
| Color temperature(K) | 5000-12000 Optional | 5000-12000 Optional | 5000-12000 Optional | 5000-12000 Optional | 5000-12000 Optional | 5000-12000 Optional |
| Viewing Angle(H/V) | 140°/160° | 140°/160° | 140°/160° | 140°/160° | 140°/160° | 140°/160° |
| Best viewing distance | 3-100m | 4-100m | 4-100m | 6-150m | 8-150m | 10-200m |
| Contrast Ratio | 5000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 |
| Frame-changing Frequency(Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Driving Mode | 1/21 Scan | 1/16 Scan | 1/13 Scan | 1/8 Scan | 1/4 Scan | 1/2 Scan |
| Grey Level | 16bit | 16bit | 16bit | 16bit | 16bit | 16bit |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 |
| Max power consumption(W/㎡) | 650 | 650 | 650 | 650 | 650 | 650 |
| Avg power consumption(W/㎡) | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 |
| Grade | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Power supply requirements | AC90-264V,47-63Hz | AC90-264V,47-63Hz | AC90-264V,47-63Hz | AC90-264V,47-63Hz | AC90-264V,47-63Hz | AC90-264V,47-63Hz |
| Working Temp/Humidity(℃/RH) | -20-60℃/10%-85% | -20-60℃/10%-85% | -20-60℃/10%-85% | -20-60℃/10%-85% | -20-60℃/10%-85% | -20-60℃/10%-85% |
| Storage Temp/Humidity(℃/RH) | -20-60℃/10%-85% | -20-60℃/10%-85% | -20-60℃/10%-85% | -20-60℃/10%-85% | -20-60℃/10%-85% | -20-60℃/10%-85% |
| Cert | CCC/CE/RoHS/FCC/CB/TUV/IEC | CCC/CE/RoHS/FCC/CB/TUV/IEC | CCC/CE/RoHS/FCC/CB/TUV/IEC | CCC/CE/RoHS/FCC/CB/TUV/IEC | CCC/CE/RoHS/FCC/CB/TUV/IEC | CCC/CE/RoHS/FCC/CB/TUV/IEC |
