Laser Cutting Machines Accessories , Laser tube, Laser Xenon Lamp
Details:
MOQ : 1pc
Product Size : standard production, status is 100%new
Warranty : available（All parts have been checked by our QC before ship out）
Compatible for : For YAG Laser Cutting Machines Parts
Suitable for laser equipment such as advertising welding, mold welding, jewelry welding, etc. For YAG laser, it can be used in military, medical, industrial and other fields.
We provide for YAG laser rod with a stable high optical homogeneity, high consistency, more precision, long life characteristics.
You can choose different sizes ( If you need other sizes models, please kindly contact me before placing order )

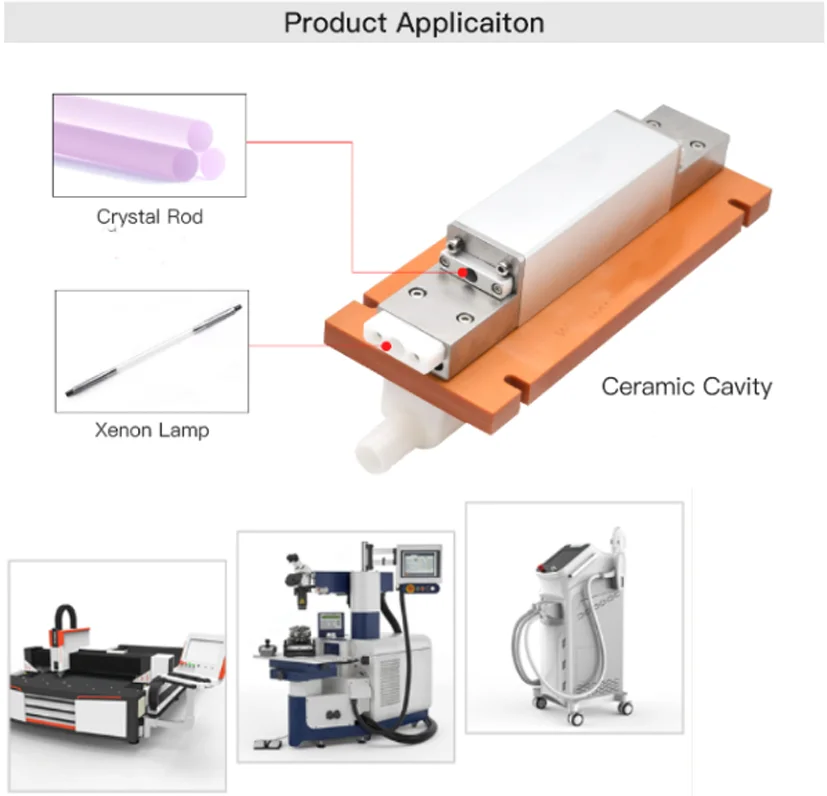

Application Field:
It is widely used in laser inner engraving machine, laser welding machine, laser beauty machine. Laser cutting machine
Product Features:
Pulsed argon lamp chooses high-quality UV-filtering quartz tube as the lamp material, and high-density electrode as the electrode of the argon lamp. It has the characteristics of strong load capacity, high pumping efficiency, good laser beam quality and long life.
Product Performance:
1、 Lamp tube material: It is decorated with quartz tube
2、 Lamp type: Xenon lamp
3、 Input energy: less than 100J
4、 Repetition frequency: 1~~400Hz
5、 Working voltage: 300-1700V
6、 Average power: 4KW
7、 Peak power: 300~3000KW
8、 Preignition voltage: greater than 800V
9、 Ignition voltage: greater than 500V
10、 Pre ignition maintenance current: 50-160MA
11、 Lifetime:>1 million times
Xenon lamp, as a commonly used light source in laser equipment, is commonly referred to as laser Xenon lamp or pulse Xenon lamp. Xenon lamp is a Phototube or flash lamp filled with Xenon lamp. Xenon lamp is chemically inactive, unable to burn or support combustion. It is the natural Noble gas with the largest molecular weight and highest density. Xenon lamp high-pressure lamps emit strong ultraviolet radiation, which can be used for medical purposes, making spectrometers, spectra, and various industrial laser equipment.
Reminder:The working life of a lamp is closely related to water cooling. If the flow rate of cooling water is too small, it will affect the lifespan of the lamp; If there is scale deposition on the lamp tube, the light from the lamp cannot pass through. Therefore, the water must be clean, not tap water, distilled water or deionized water should be used, and the water should be changed frequently.
The lower the water temperature of the cooling water, the more favorable it is for the use of the lamp. However, considering the energy consumption of the refrigeration equipment at 20 ° C and 5 ° C, it is recommended for normal water temperature. In summer, it can still be used normally at around 20 ° C-30C. But when the water temperature exceeds 30 ° C, consider opening the control equipment to lower the water temperature to the recommended temperature
Matters Needing Attention
1. Do not contaminate the quartz bubble shell and keep it clean. Before use, wipe it with alcohol cotton before turning on the light.
2. Due to the high current, the contact between the lamp holder and the lamp holder must be good, and the contact points must be kept clean during use.
3. Due to the high-pressure gas inside the lamp, collision should be avoided during loading, unloading, and transportation, especially during installation. During operation, it should be placed in a well cooled hood to prevent explosion, strong light, and strong ultraviolet rays from burning the skin and eyes.
4. It must be used in conjunction with a dedicated DC power supply and trigger. The ripple coefficient of the DC power supply should not exceed 7%, and the working current should be within the specified range when ignited. Otherwise, it will affect the lifespan of the lamp and even damage it.

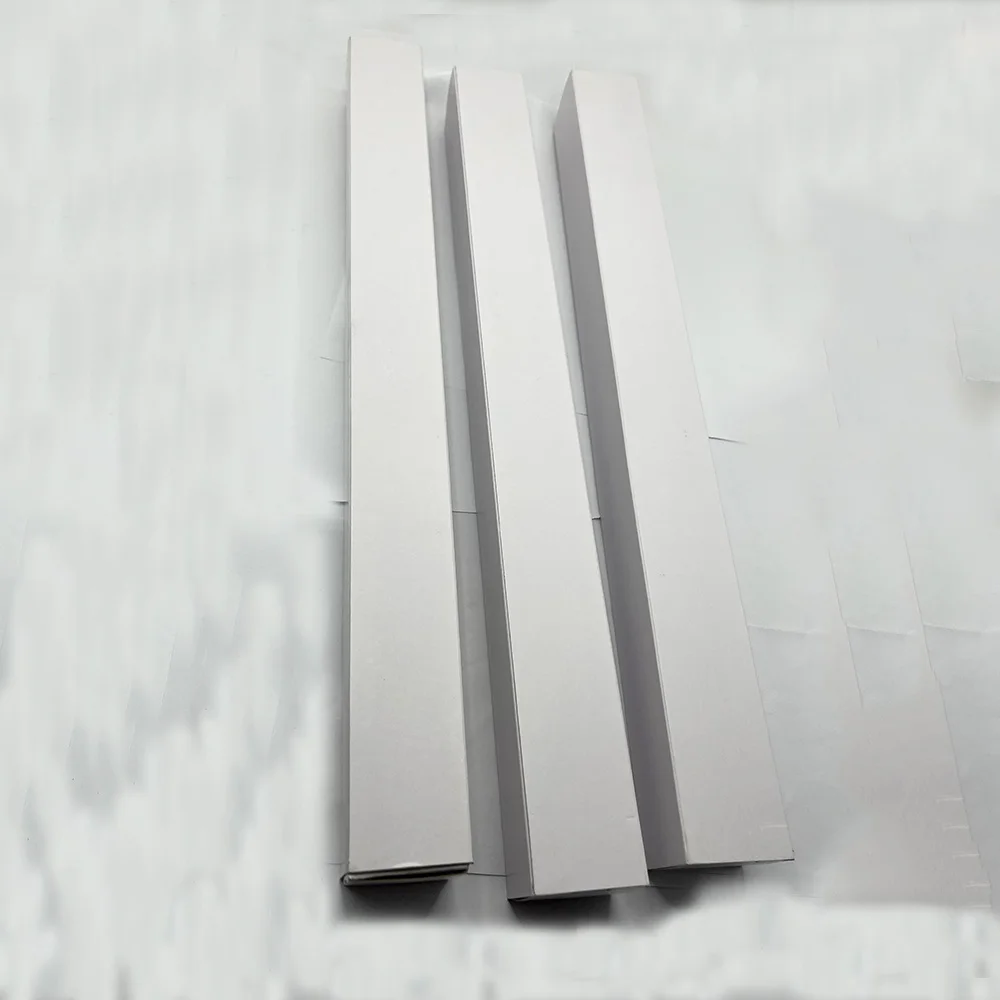

Product Packing：
Related Laser Cutting Parts
If you are interested the parts in the pictures below shown then you can click the below picture directly , or please contact with us.
Doped aluminum garnet - (Nd: YAG) is currently a widely used solid-state laser material. It is also an important laser crystal for comprehensive performance applications. Its superior basic properties make it often used in near-far infrared solid-state lasers and their frequency doubling and tripling, and it has been widely used in scientific research, medical treatment, industrial and military lasers. The Nd: YAG sold by the company is from the leading manufacturer of Nd: YAG laser products in China. It has a crystal production line on a Chinese scale, whose crystal billet size and crystal quality are in line with the international advanced level. It stocks high-quality Nd: YAG crystal components of various specifications, and provides large-sized high-quality Nd: YAG crystal rods, crystal Flat noodles and crystal discs for high-power and ultra high-power lasers. It has the advantages of high laser efficiency, high damage threshold, good thermal conductivity, and can realize multiple working modes (continuous, pulse, Q-switching, mode locking, frequency doubling, etc.). Among them, the continuous type is a very good working mode of Nd: YAG laser. Its continuous laser output has reached the Kilopower level. As one of the solid laser crystal materials with good comprehensive performance, it is widely used in industry, scientific research and other fields
