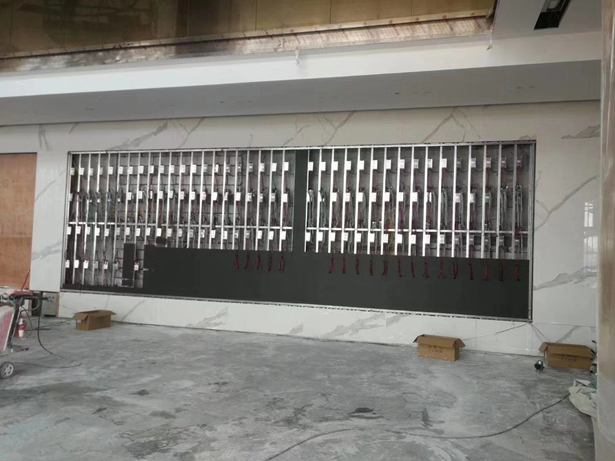

Indoor led display has the cheapest installation method, that's using magnets to fix led modules on steel pipes instead of using led cabinets. |
|

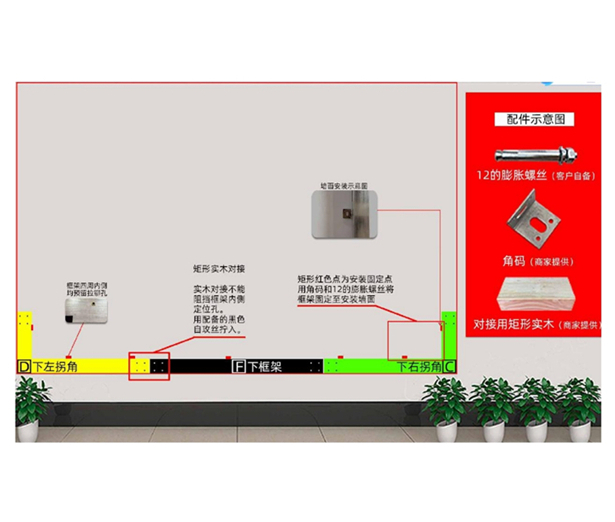

1. First, insert rectangular solid wood into the tubes at both ends of the lower frame DFC, and screw them in with self-tapping screws. 2. Then fasten the D.F.C to the pre-installed wall with corners and screws through the screw holes on the inner wall of the frame. |
 |
 |

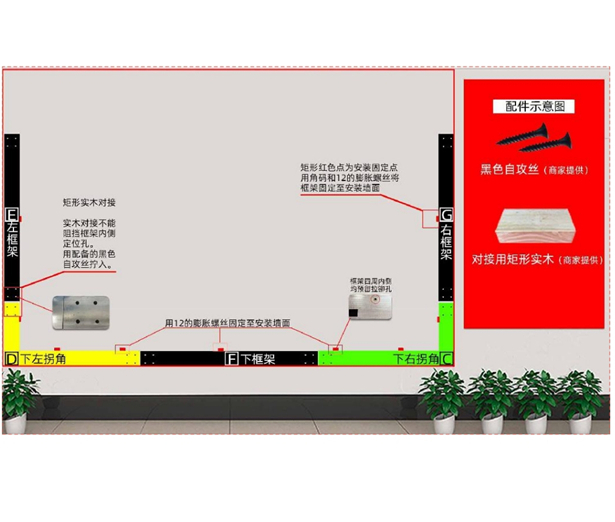

Fixed EG 1. Docking the left frame E and the right frame G. 2. E and G must be perpendicular to the wall. |
|

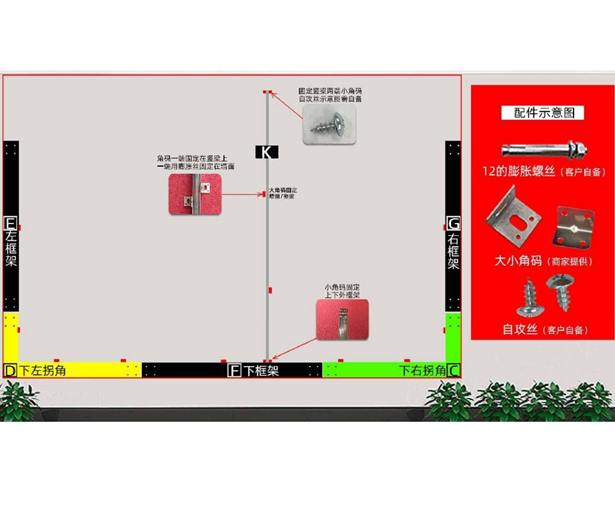

Fixed vertical beam K The two ends of the vertical ladder K should be connected to the upper frame and the down side frame with small connetion plates. The middle of the vertical ladder should fix to the wall with a large connetion plate. |
 |
 |

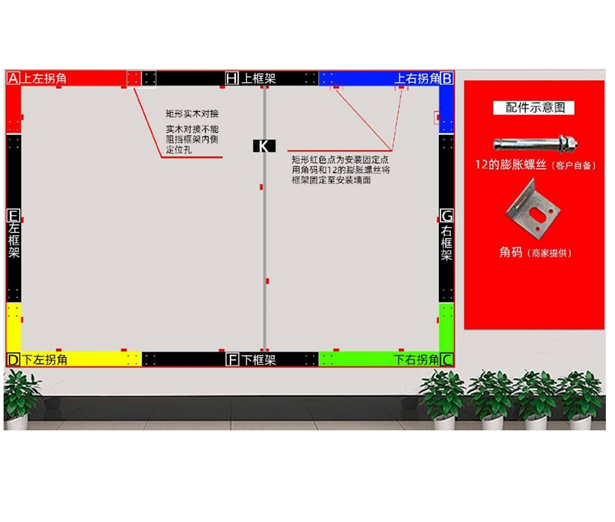

Fixed AHB 1. Insert the solid wood into the AHB and fix it with screws. 2. Fix the AHB on the wall. |
|

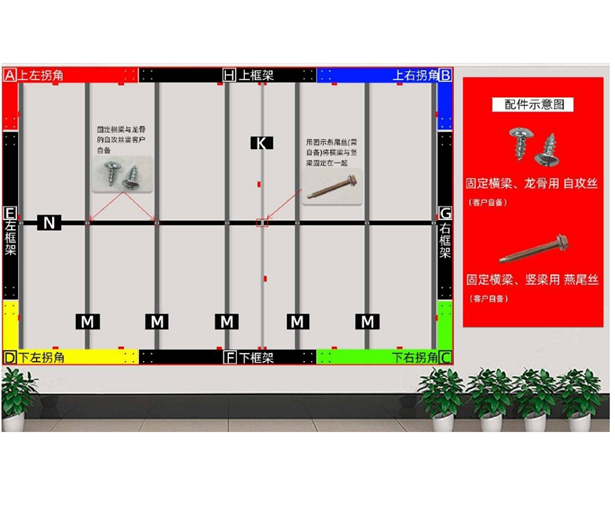

Fixed M, N 1. All keels M are introduced from top to bottom 2. Pass through the beam N from left to right. 3. Fix the M and N junctions with screws. Screws are provided by the customer 4. Secure the junction of K and M with dovetail screws. |
 |
 |
 |
 |
 |
|

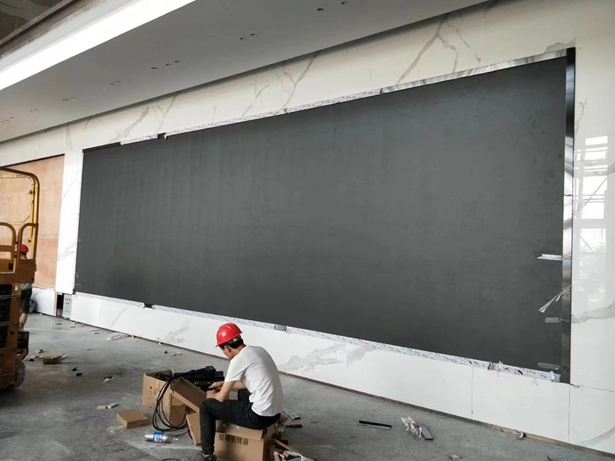

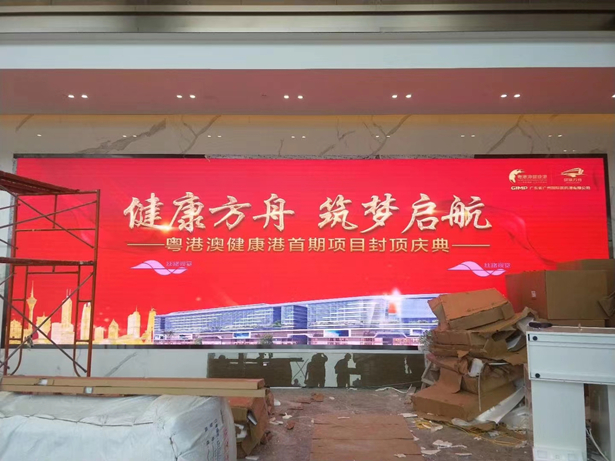

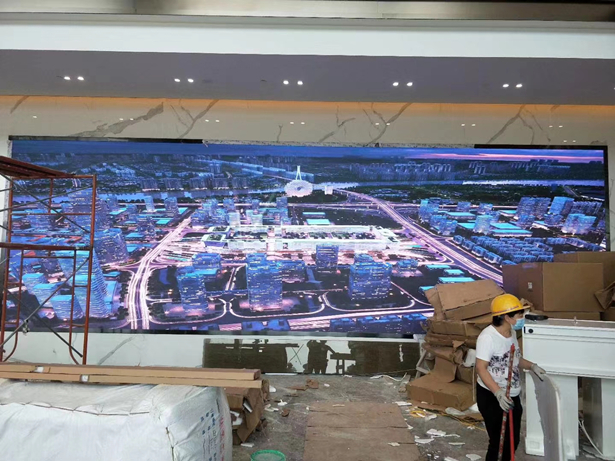

Indoor led display video wall installed by the solderless steel pipes structure can have very slim thickness, usually it's within 100mm thickness, and it can adjust the splicing seams between modules to make screen has perfect flatness. |
|

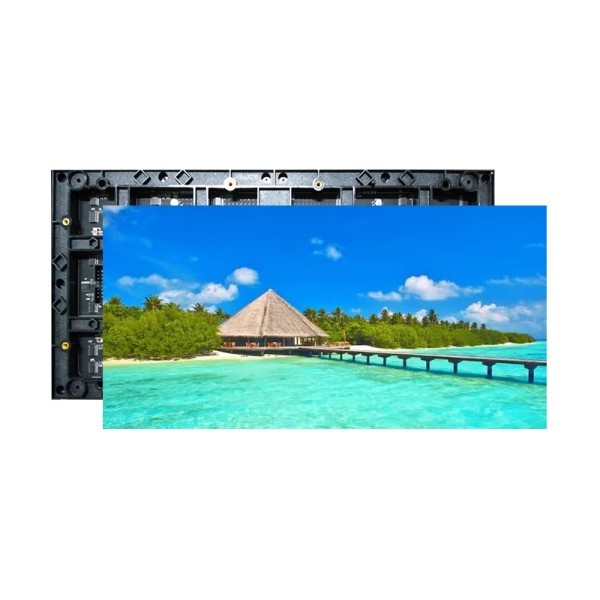

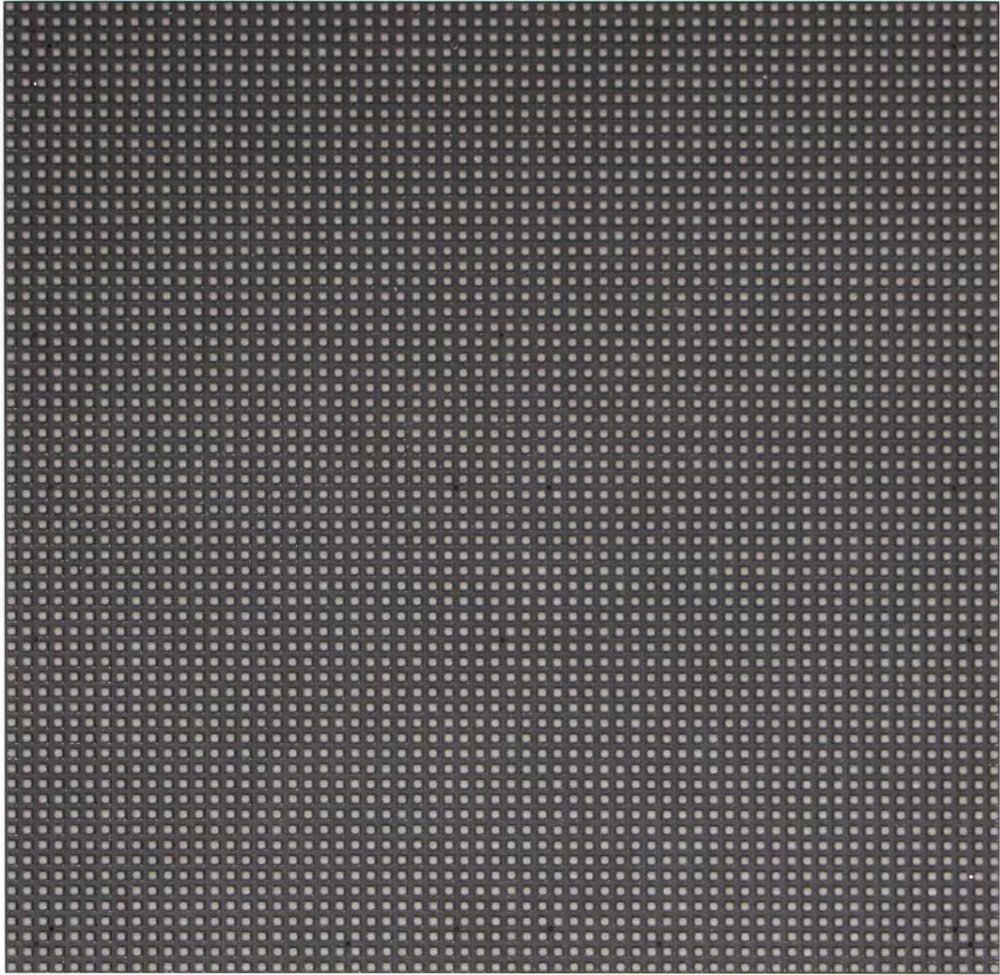

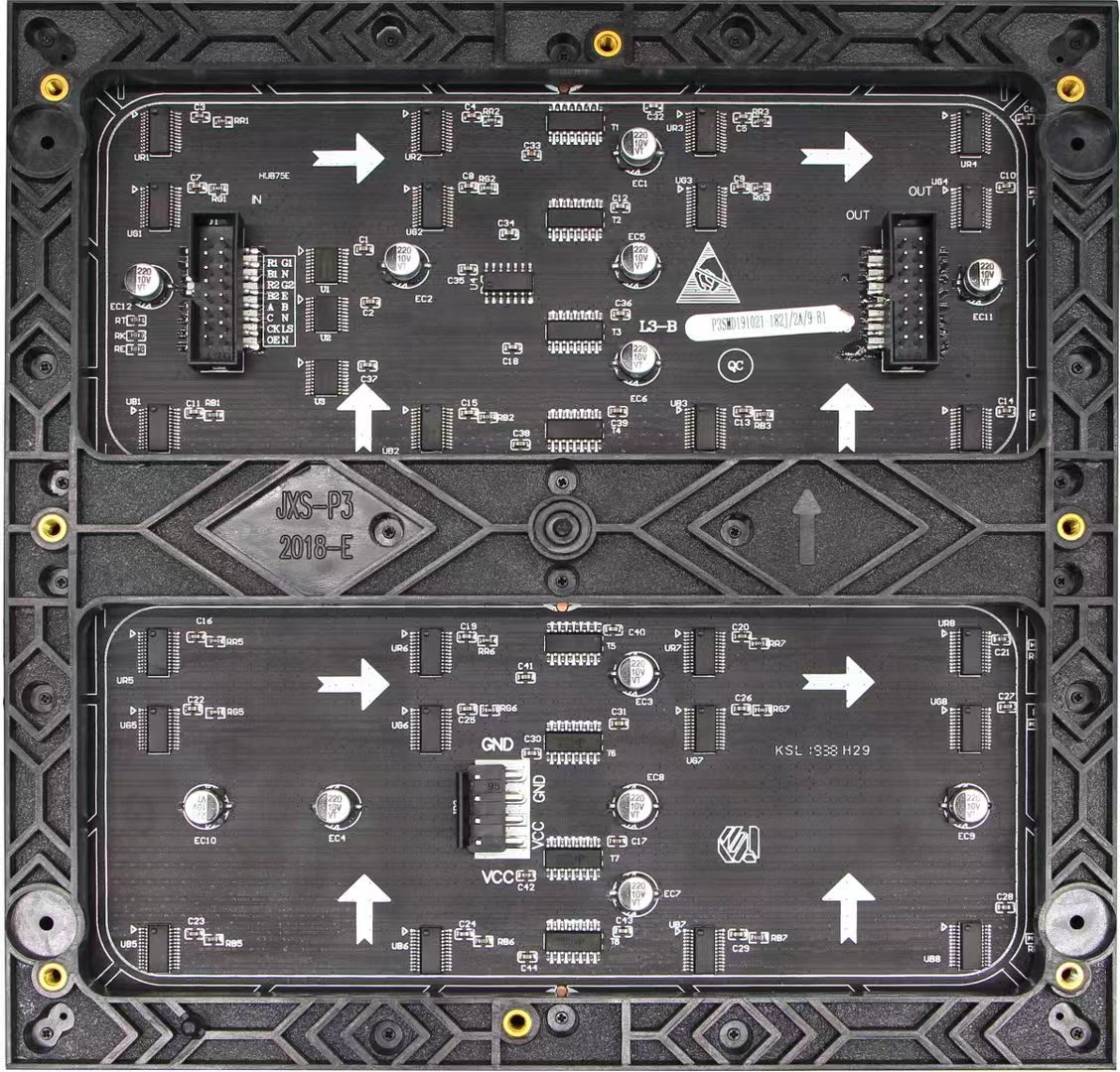

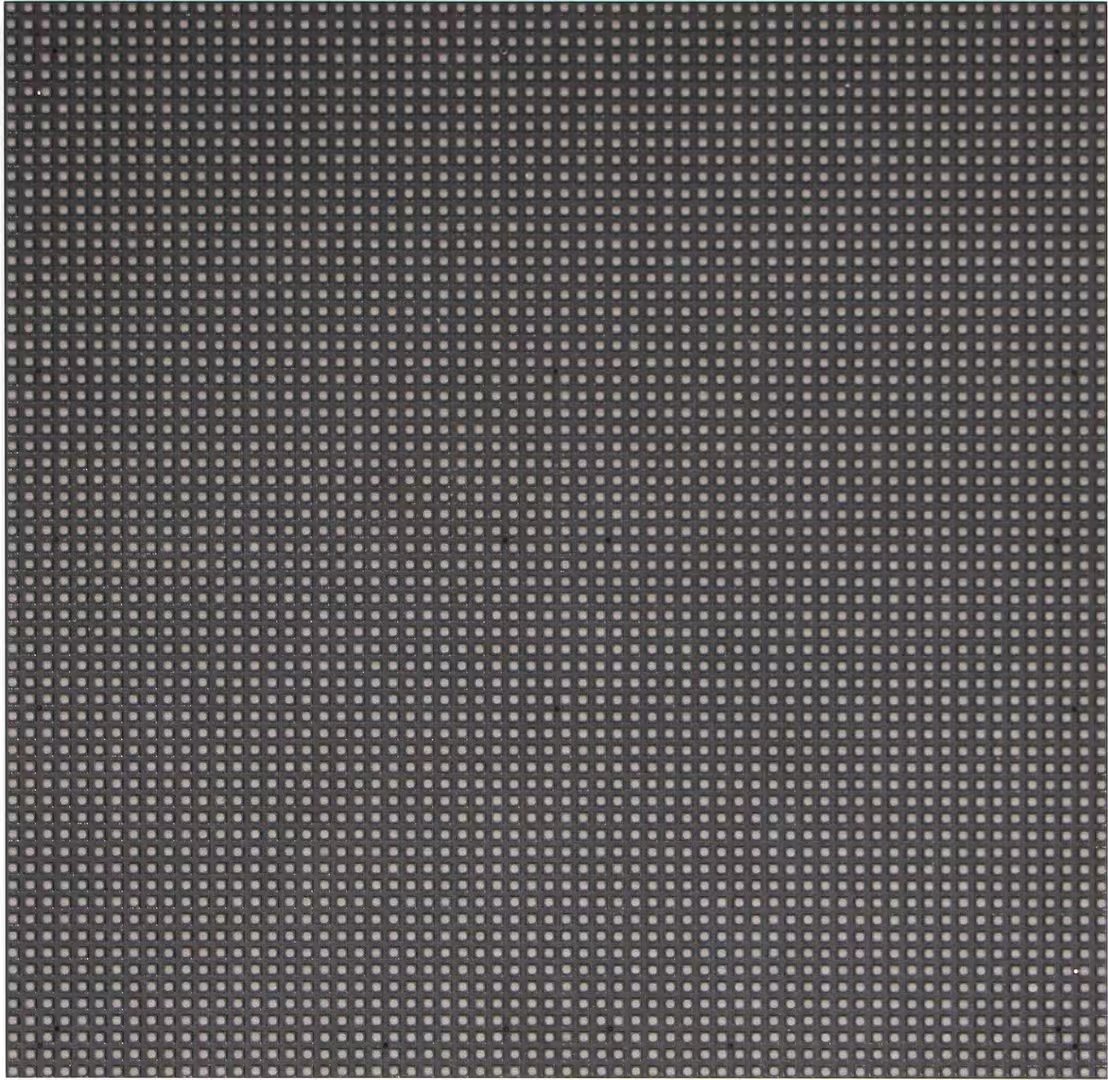

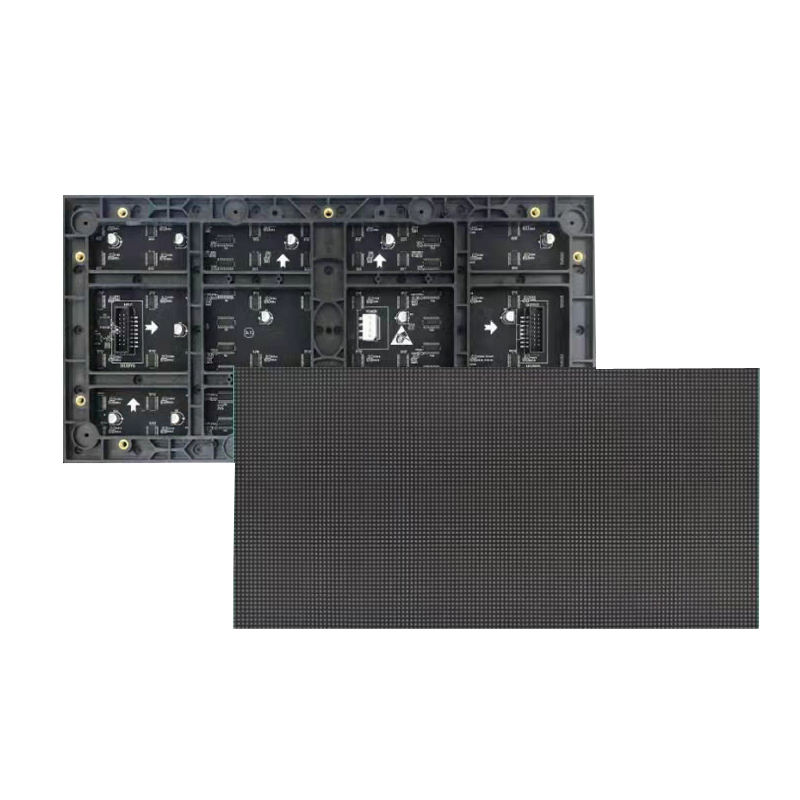

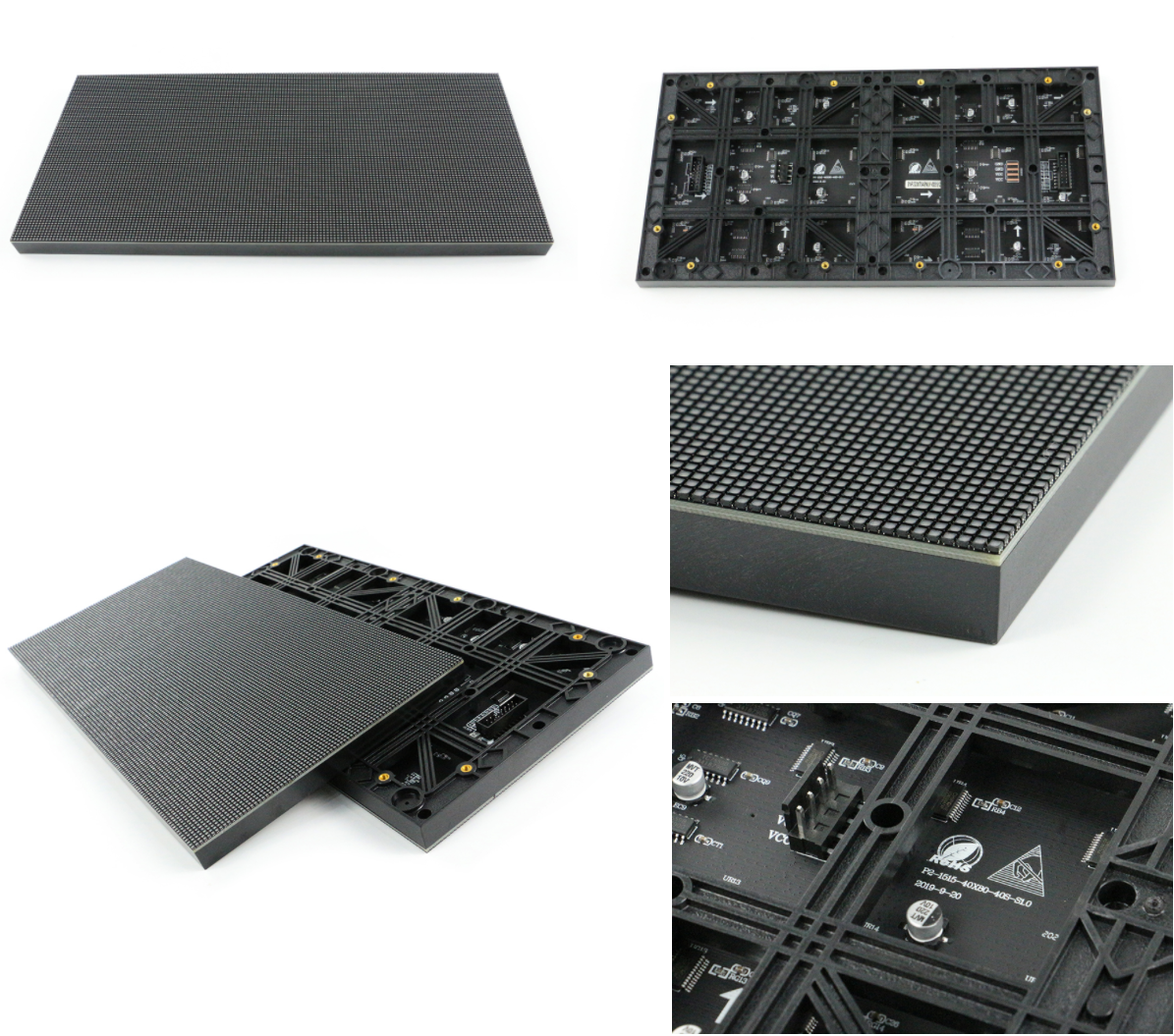

| Indoor p3.076 26s 320x160mm led module specifications | |||||||
| led lamp | 2020RGB | chip color | brightness | wave length | led lamp configuration | ||
 |
R | 40-80 mcd | 618-625 nm | copper wire, iron substrate | |||
| G | 120-200 mcd | 522-534 nm | |||||
| B | 25-50 mcd | 462-474 nm | |||||
| module size | 320x160mm | module resolution | 104x52=5408 dots | ||||

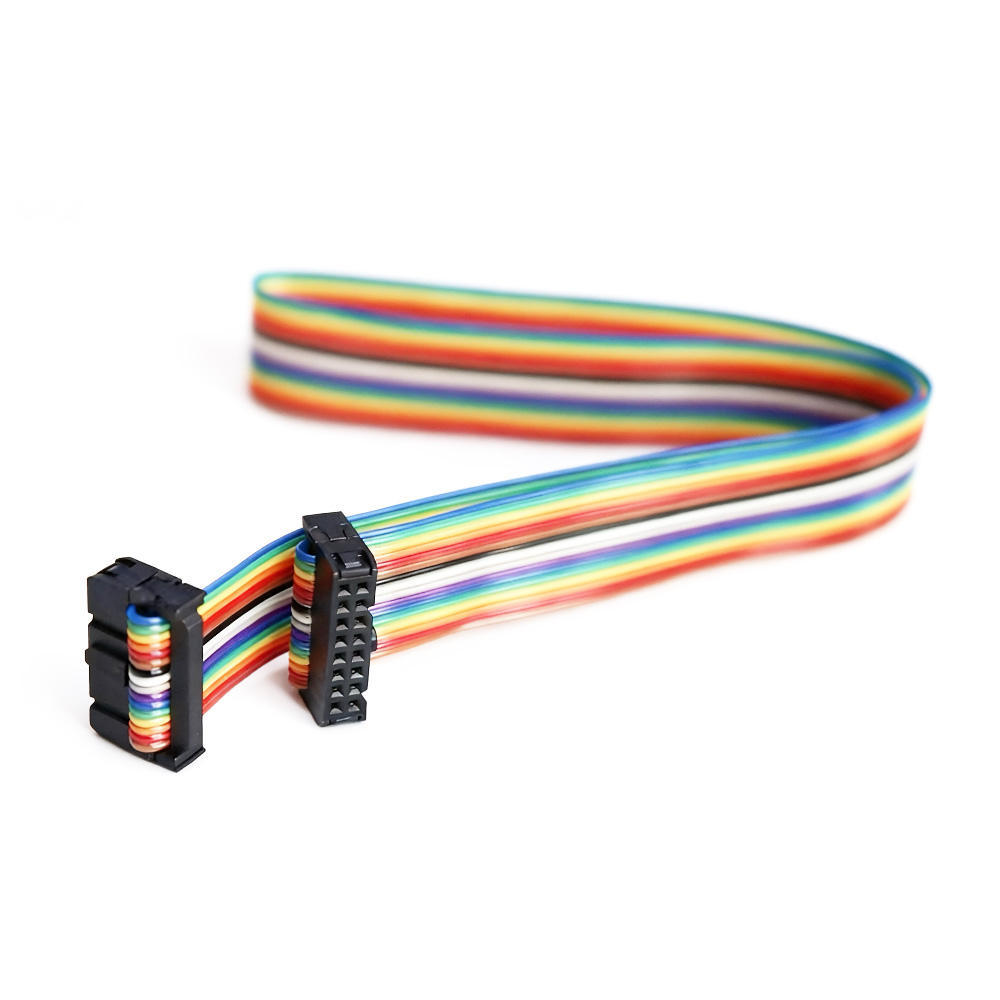

| signal port | HUB75E | pixel density | 105625 dots/sqm | ||||
| view angle | (H/V)140°/140° | nearest view distance | >3m | ||||
| driver ic | 6363/3265s/16380 | scan mode | 26s | refresh rate | 3840Hz | ||
| magnet model | M4-1317 | brightness | < 800 CD | ||||

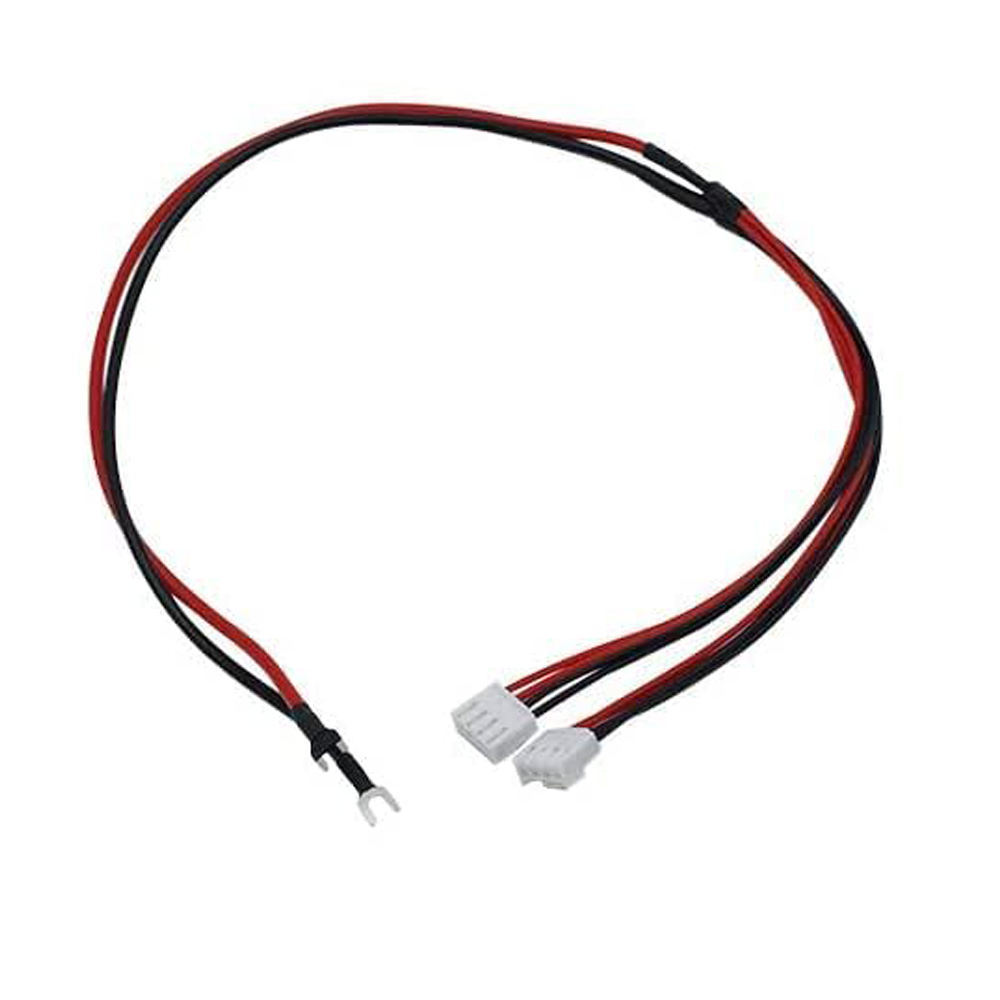

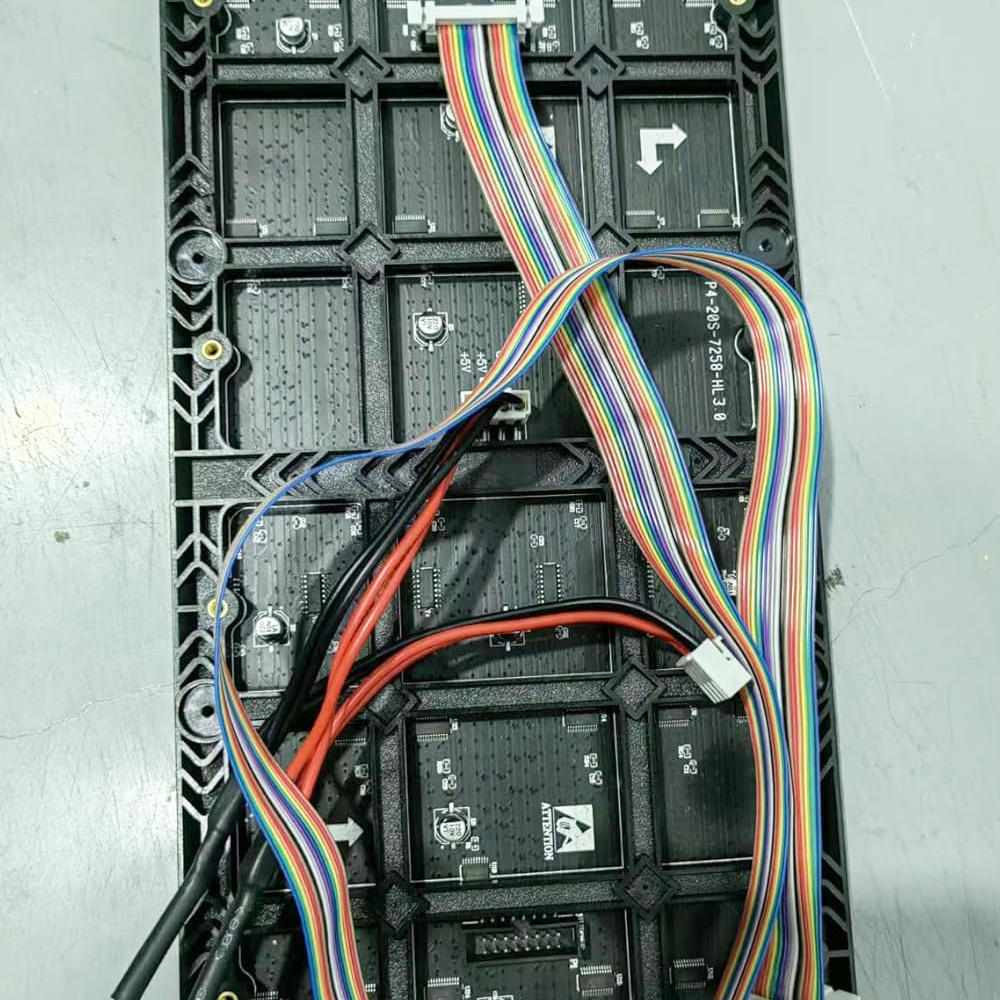

| module power cable 30cm main cable with 20 cm tow cables, total 50cm | |||||||
| module max power supply <25W, suggest 5V40A power supply load <6 pcs modules, 5V60A power supply load <8 pcs modules | |||||||
