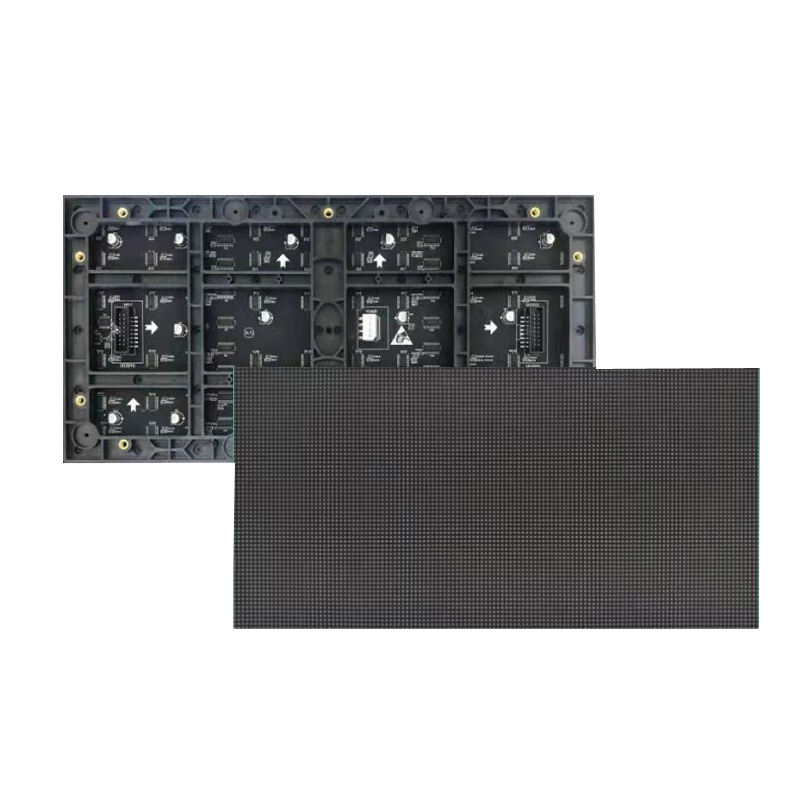

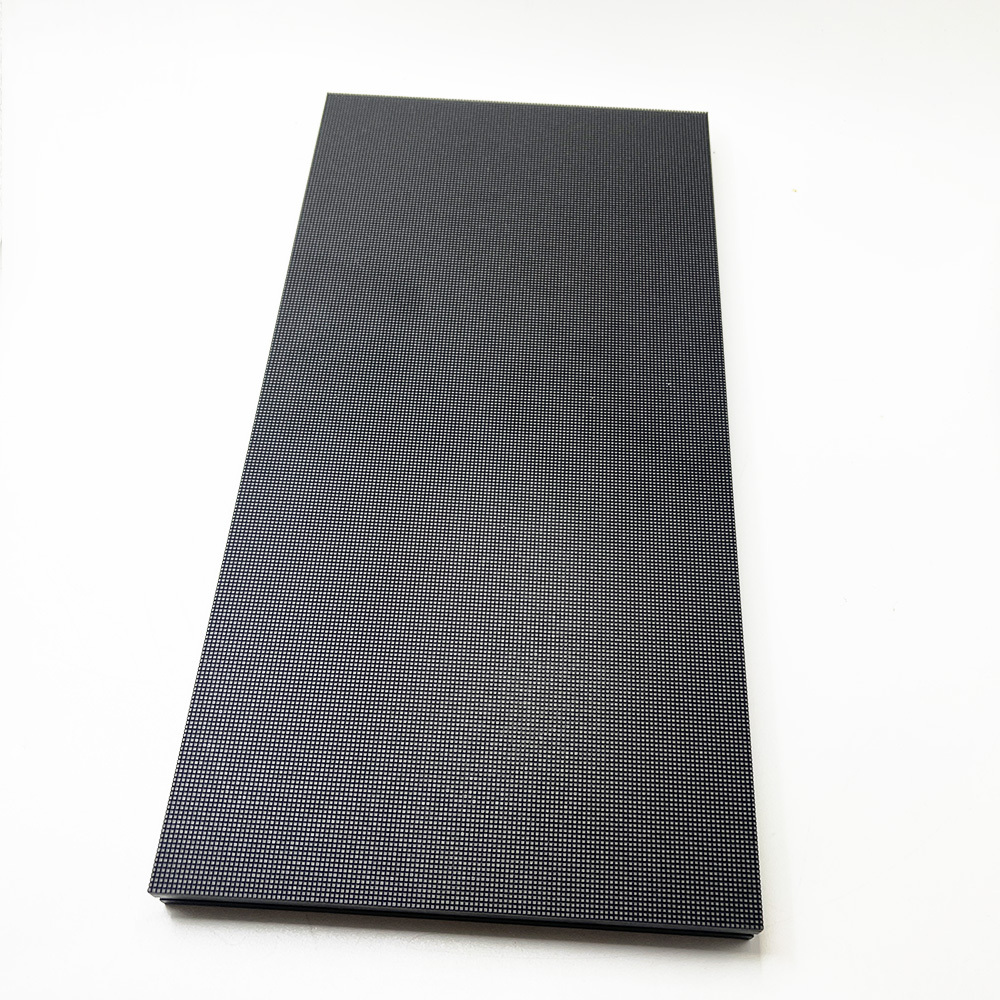

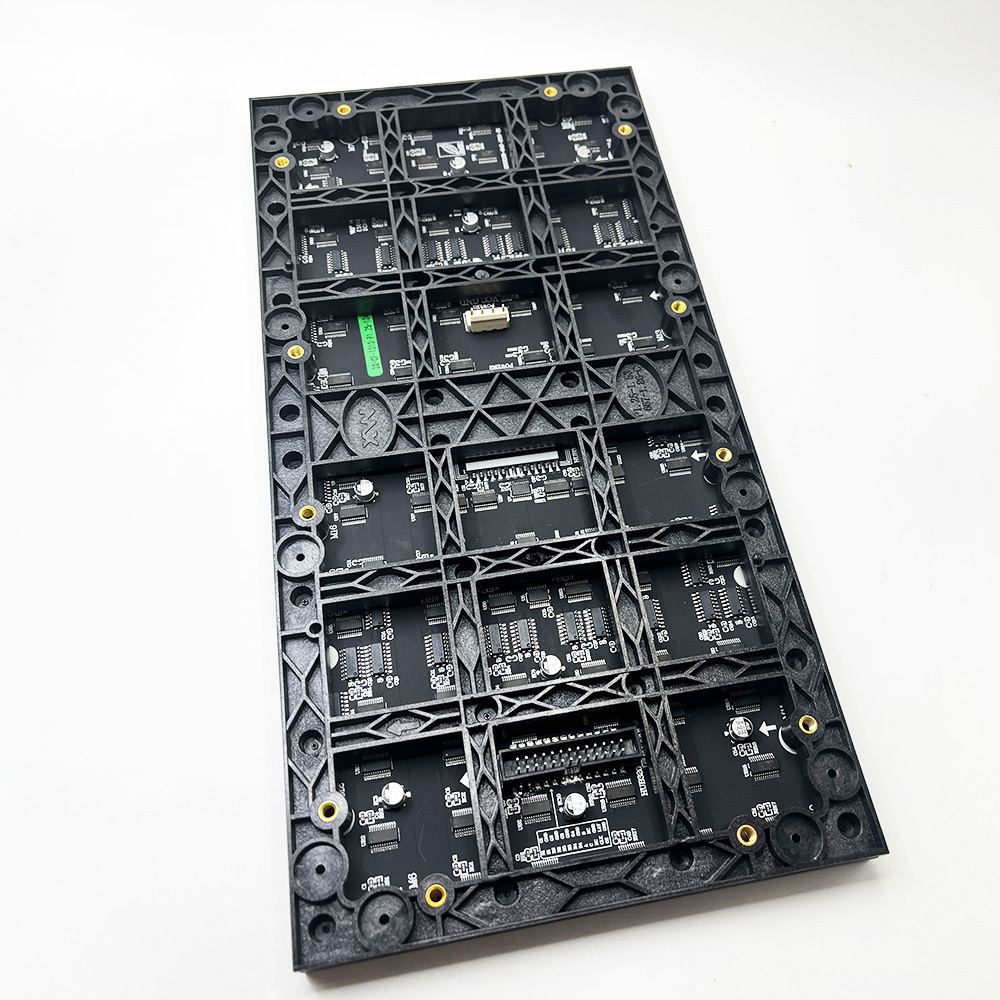

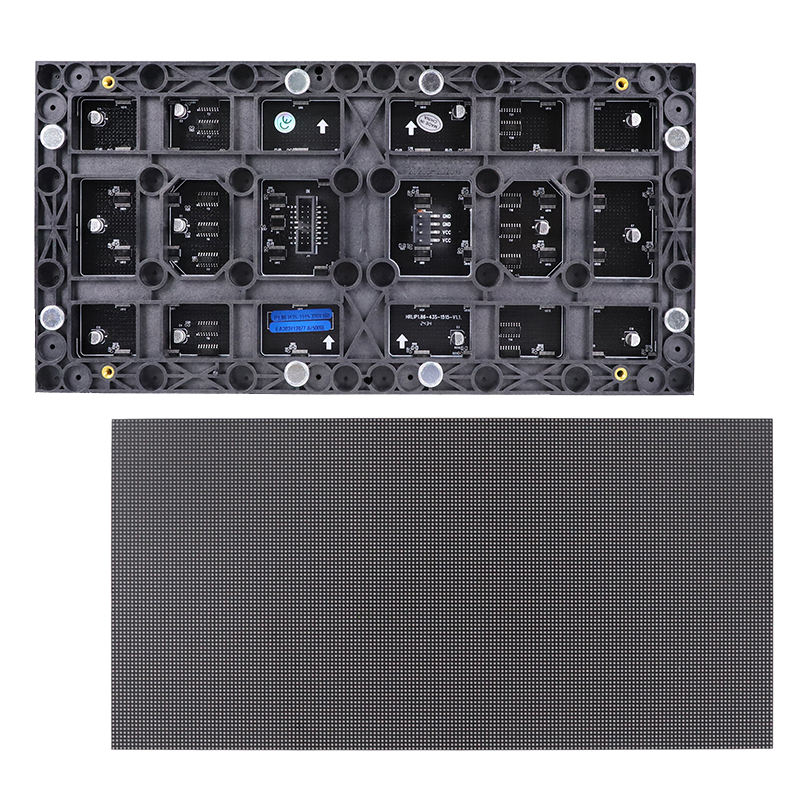

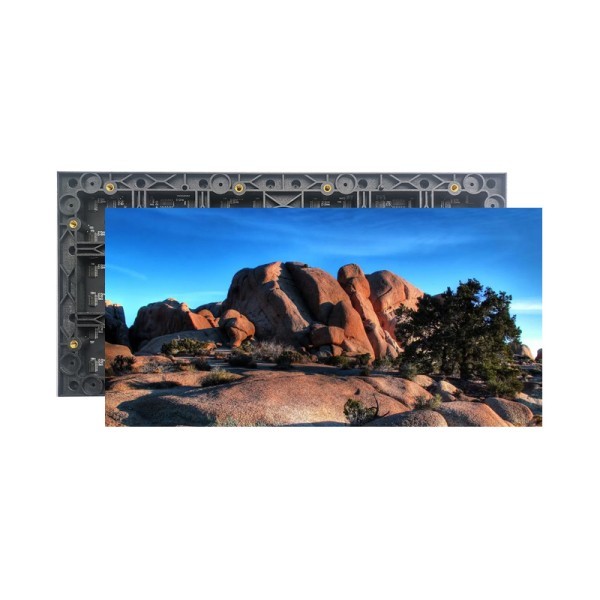

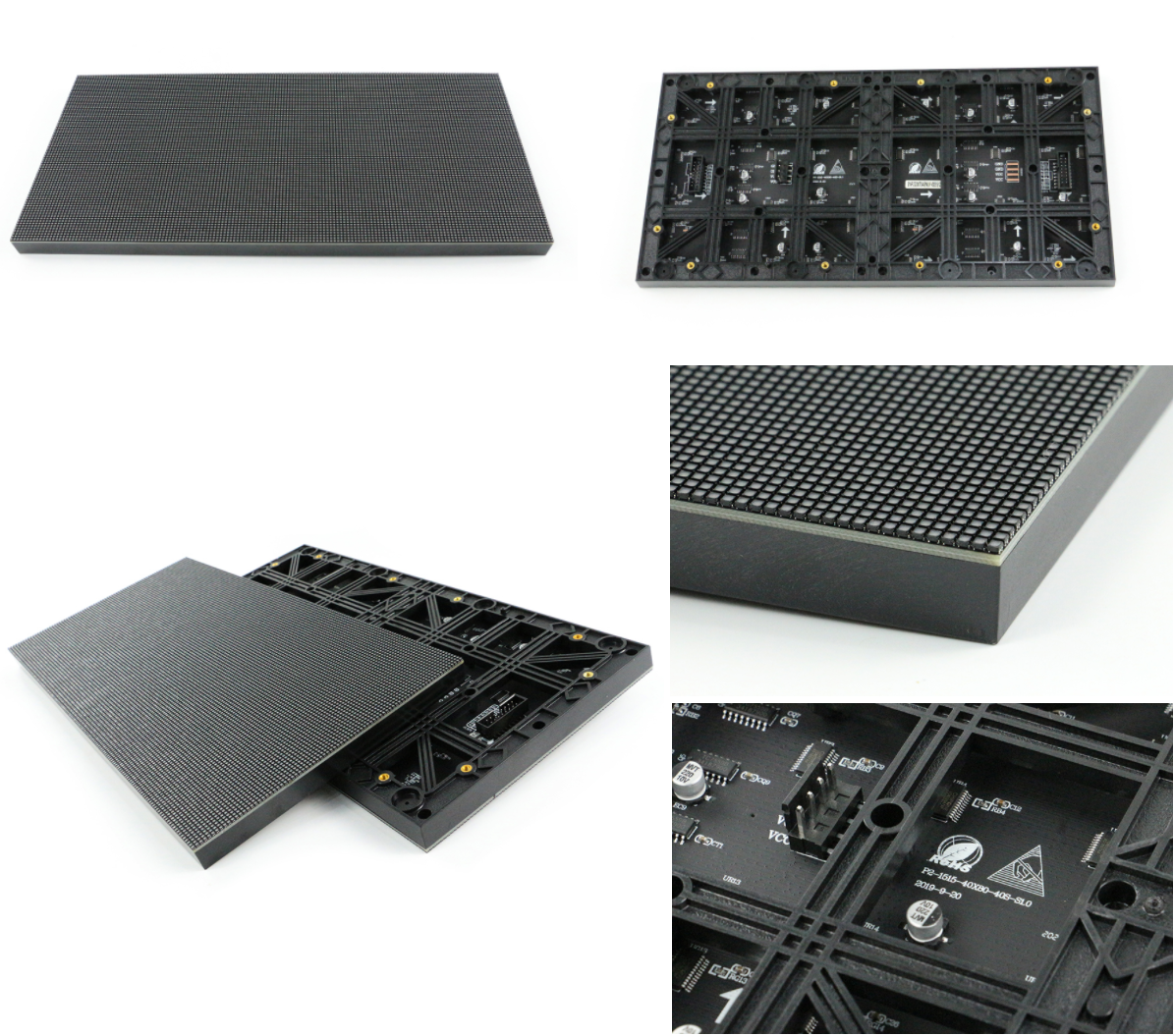

indoor p1.538 320x160mm led module Indoor LED Display Module, Fine Pitch SMD Full Color LED Screen Panel for Indoor Video Wall led Display module LED display module wall LED display module manufacturer

1. First, insert rectangular solid wood into the tubes at both ends of the lower frame DFC, and screw them in with self-tapping screws.

2. Then fasten the D.F.C to the pre-installed wall with corners and screws through the screw holes on the inner wall of the frame.

Fixed vertical beam K

The two ends of the vertical ladder K should be connected to the upper frame and the

down side frame with small connetion plates.

The middle of the vertical ladder should fix to the wall with a large connetion plate.

Fixed AHB

1. Insert the solid wood into the AHB and fix it with screws.

2. Fix the AHB on the wall.

Fixed M, N

1. All keels M are introduced from top to bottom

2. Pass through the beam N from left to right.

3. Fix the M and N junctions with screws. Screws are provided by the customer

4. Secure the junction of K and M with dovetail screws.

Indoor led display video wall installed by the solderless steel pipes structure can have very slim thickness, usually it's within 100mm thickness, and it can adjust the splicing seams between modules to make screen has perfect flatness.
