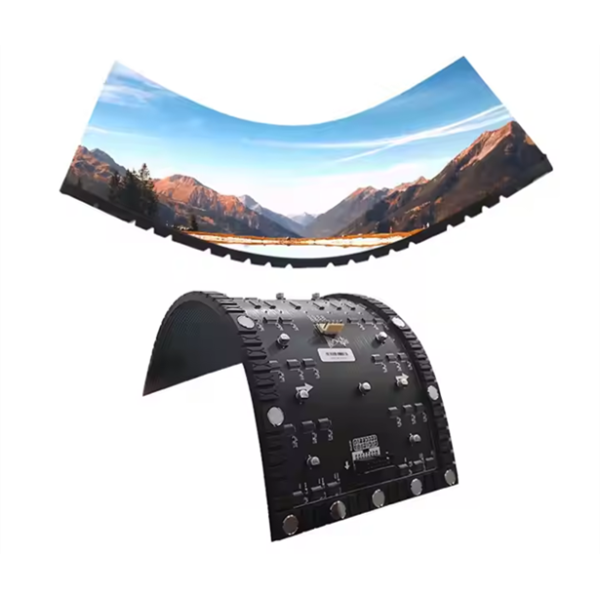

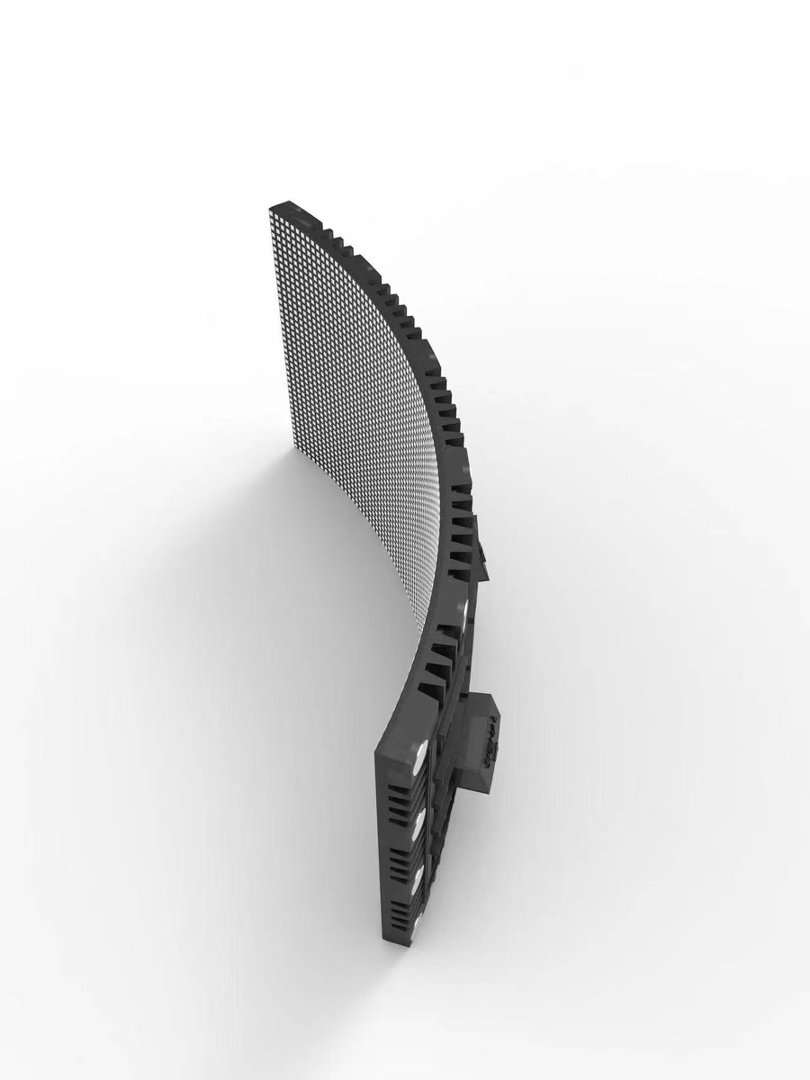

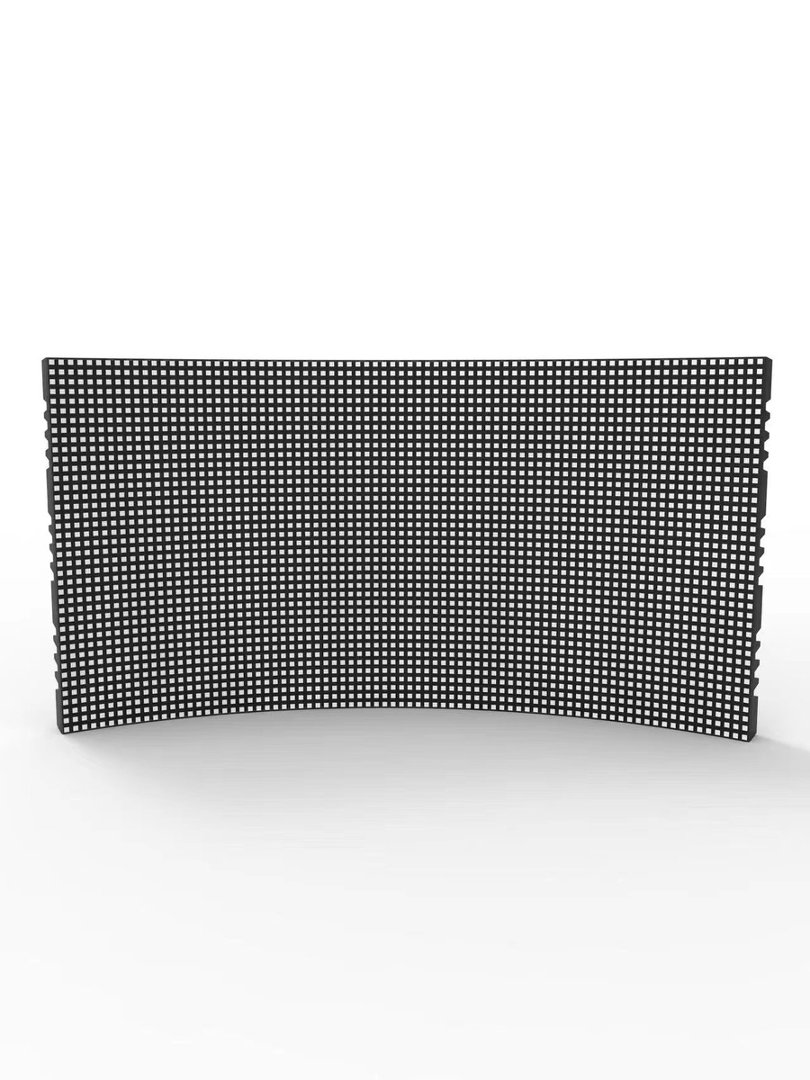

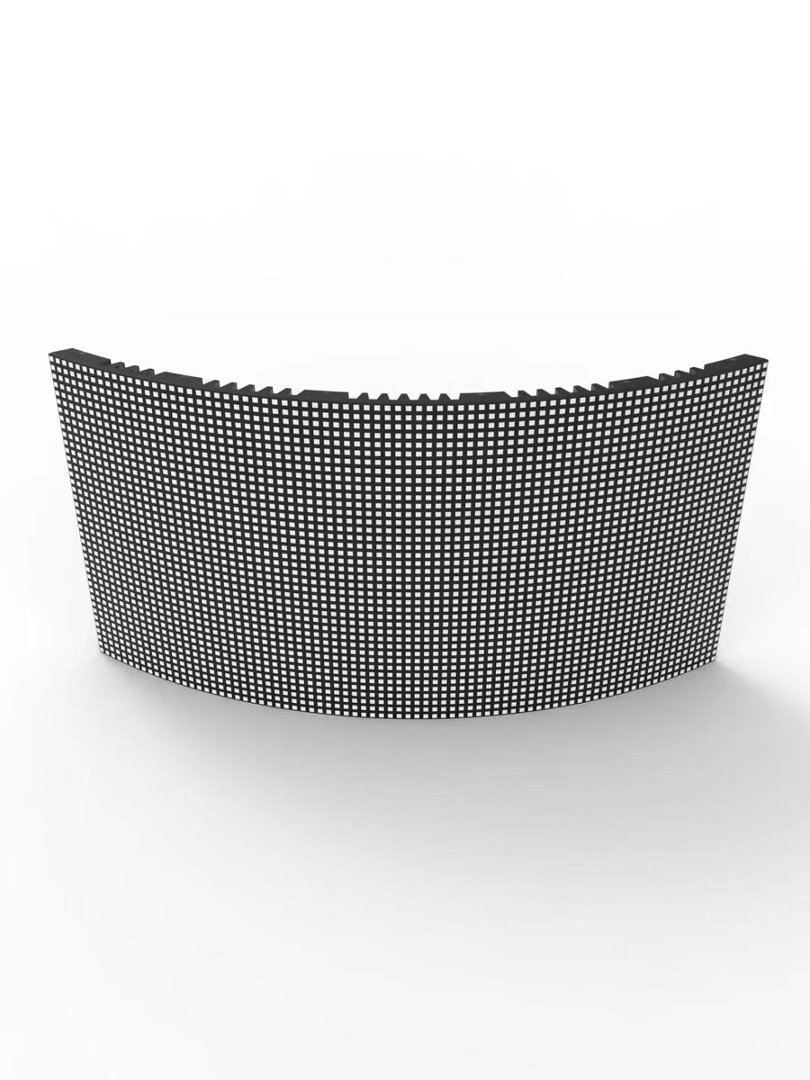

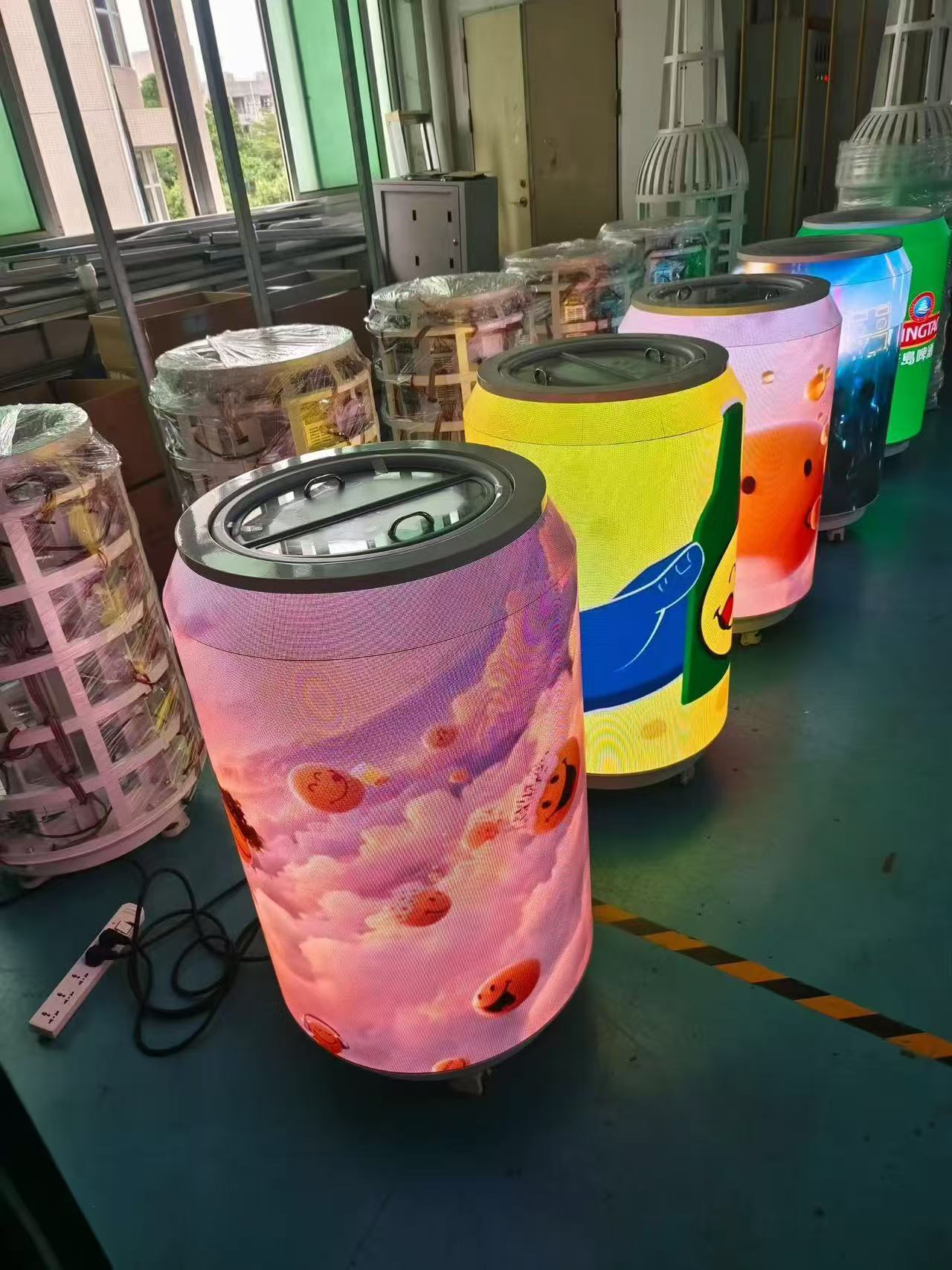

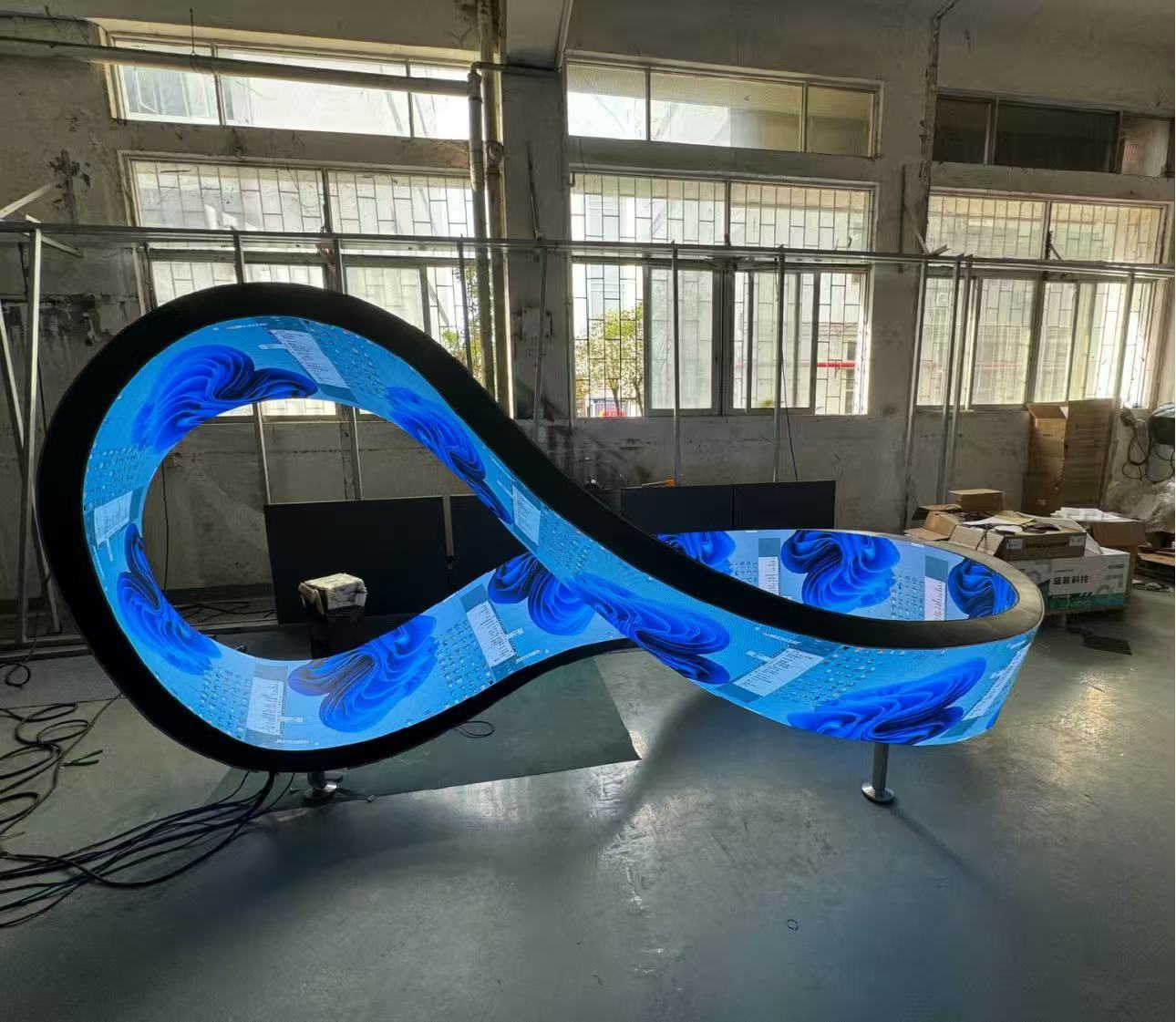

The flexible led modules combined with customized arc-shape cabinets can be used for making special artistic shapes led display.
|
|
 |
|
 |
|
 |
|
|

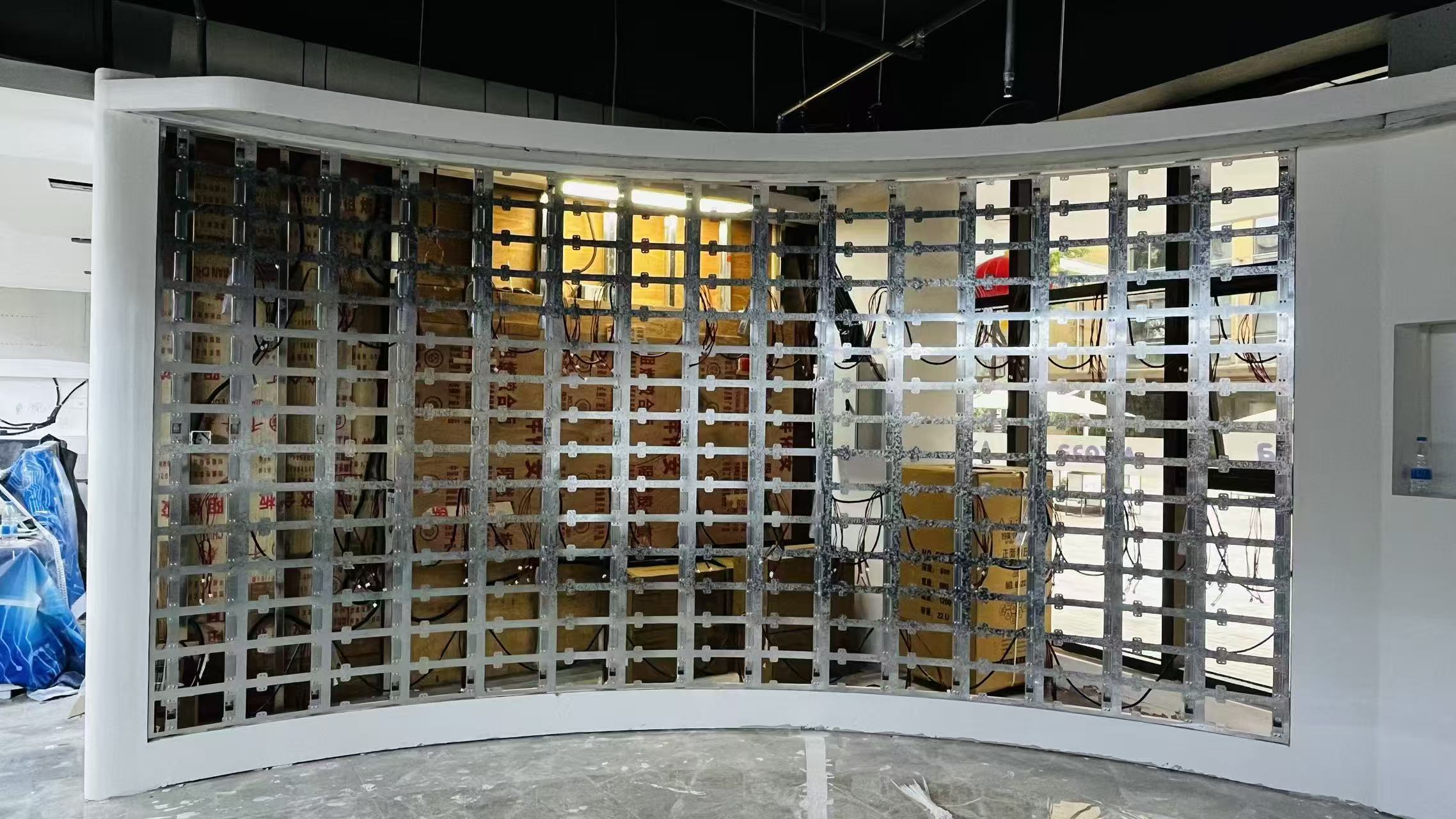

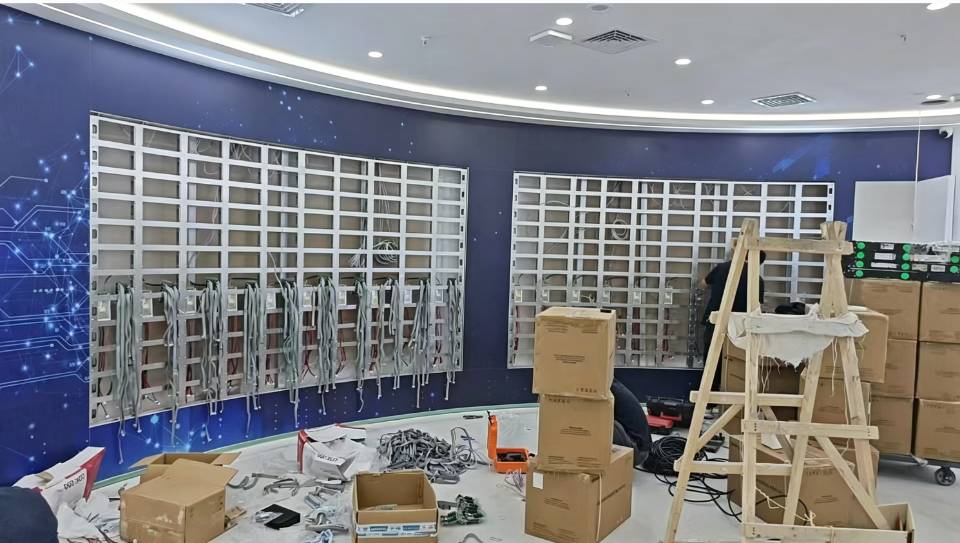

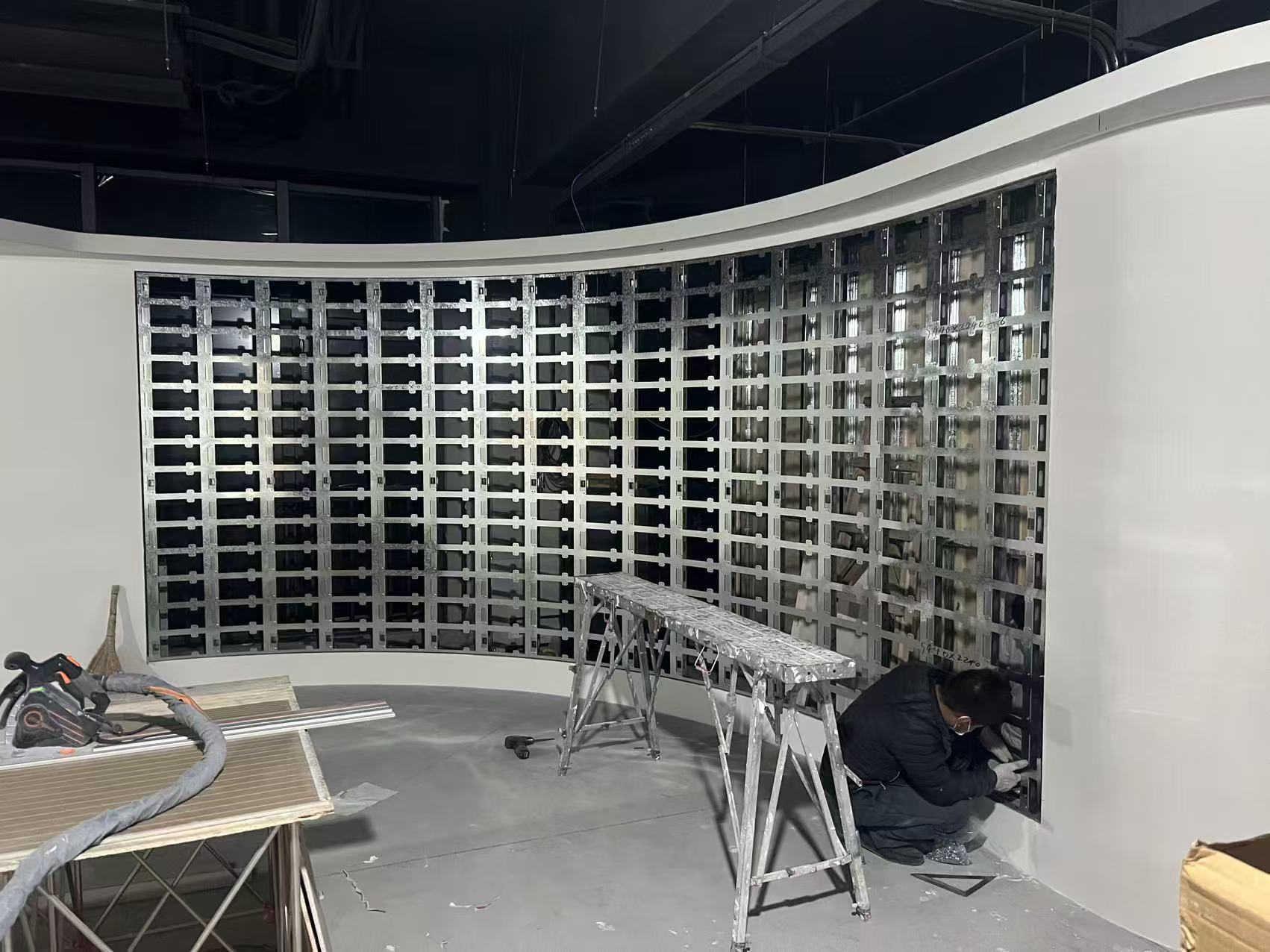

We also can use flexible led modules with bendable iron sheets and pipes to make indoor inner curved or outter curved led video wall, clients don't have to measure accurate curvature of the wall at the led screen installation site , because clients can adjust the pipes and iron sheets installation to make led display installation fit the wall, the whole installation thickness is within 55mm, and there are no welding operation during installation, all the frame are fixed on the wall by screws. |
|
| Indoor flexible led modules specifications | ||||||||
| item | p5 | p4 | p3.076 | p2.5 | p2 | p1.86 | p1.538 | p1.25 |
| module size | 320 x 160 mm | |||||||
| scan mode | 16s | 20s | 26s | 32s | 40s | 43s | 52s | 64s |
| pixel density | 40000 dots/sqm | 62500 dots/sqm | 105625 dots/sqm | 160000 dots/sqm | 250000 dots/sqm | 289444 dots/sqm | 422500 dots/sqm | 640000 dots/sqm |

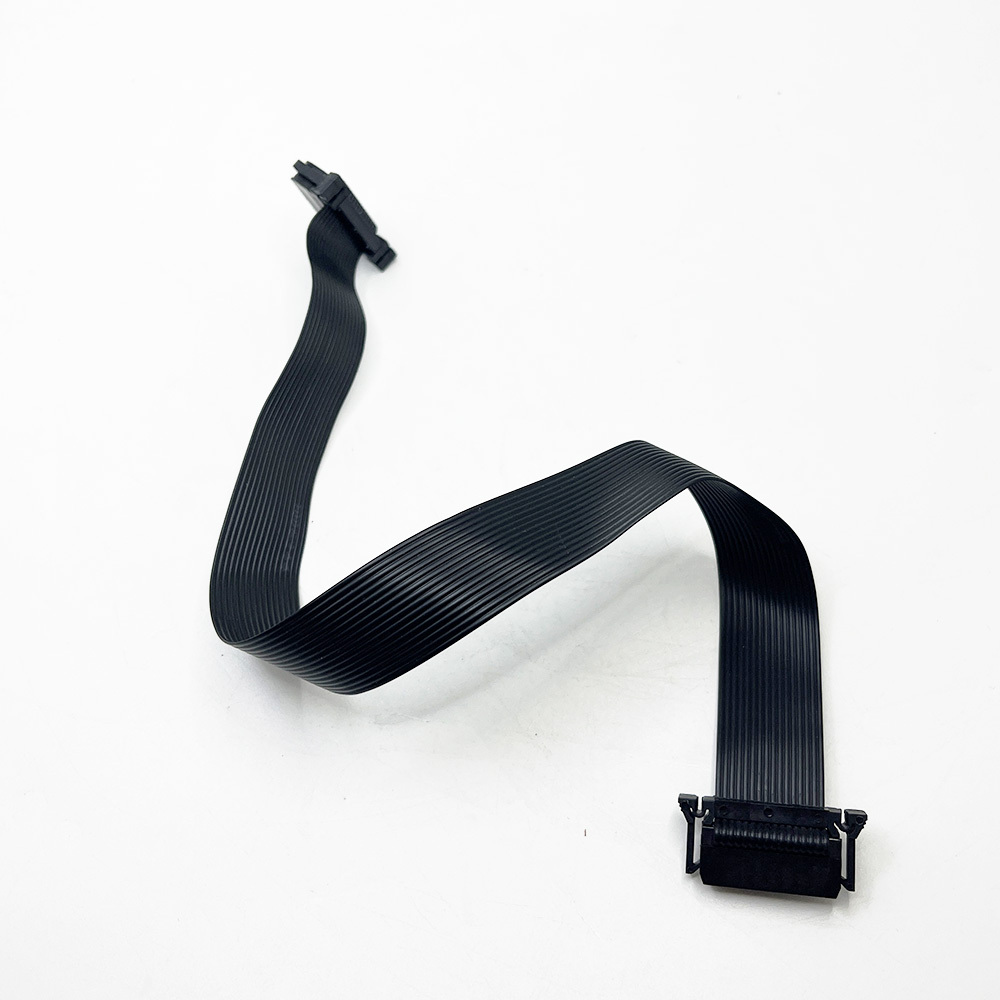

| signal port | HUB75 | HUB320 | ||||||

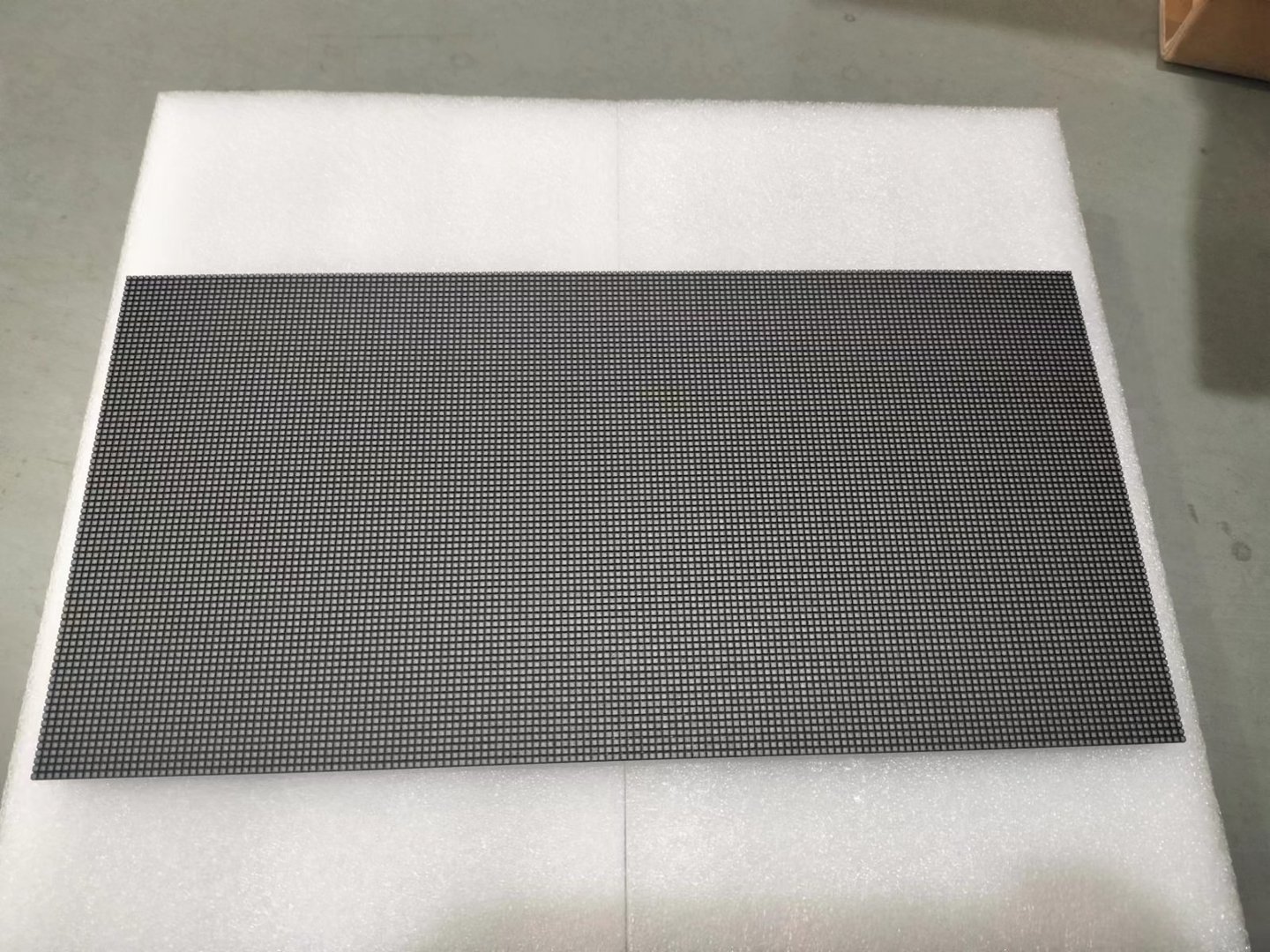

| module surface | Flexible led modules are with SMD surface by default, we strongly suggest clients accept GOB process for p2.5,p2,p1.86,p1.538,p1.25 modules | |||||||
| refresh rate | 3840Hz | |||||||
| brightness | <800 cd/sqm | <600 cd/sqm | ||||||

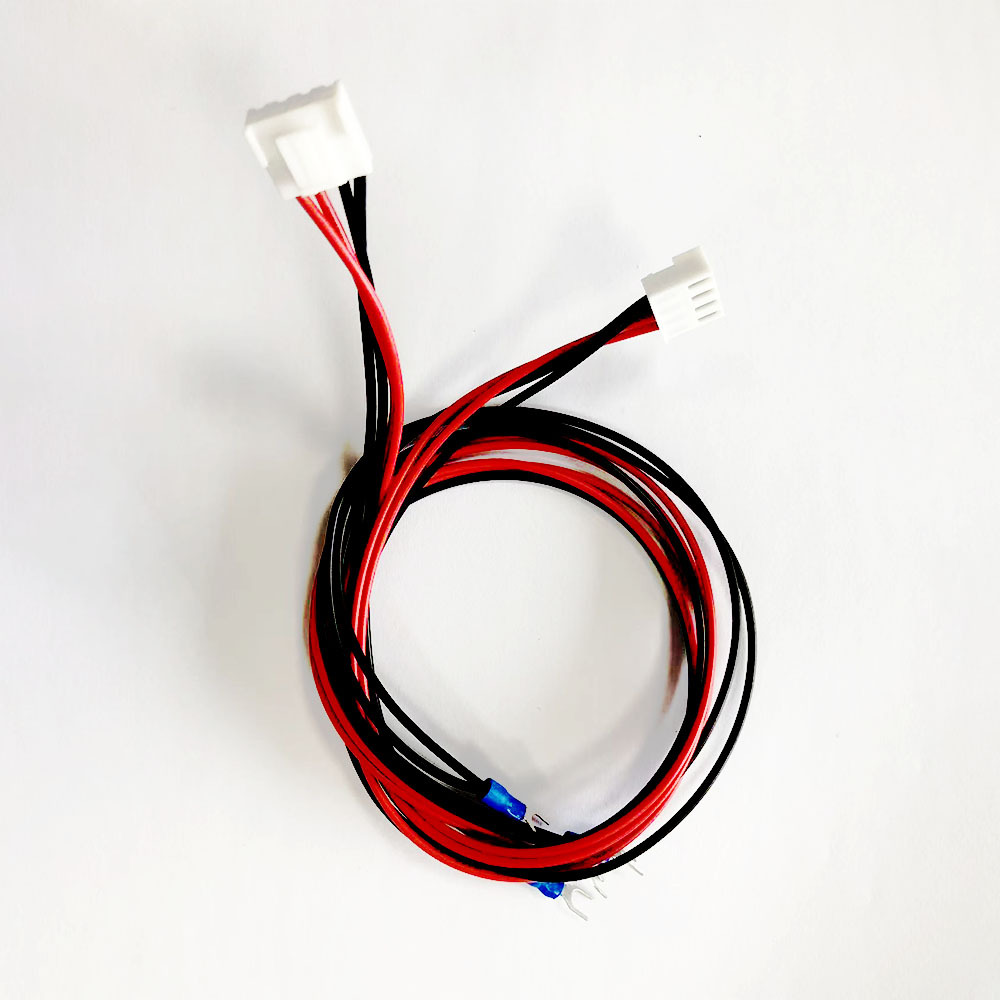

| power supply loading suggestion | Considering the module power cable length and module max power consumption, we suggest 200W power supply load 6 pcs modules. | |||||||

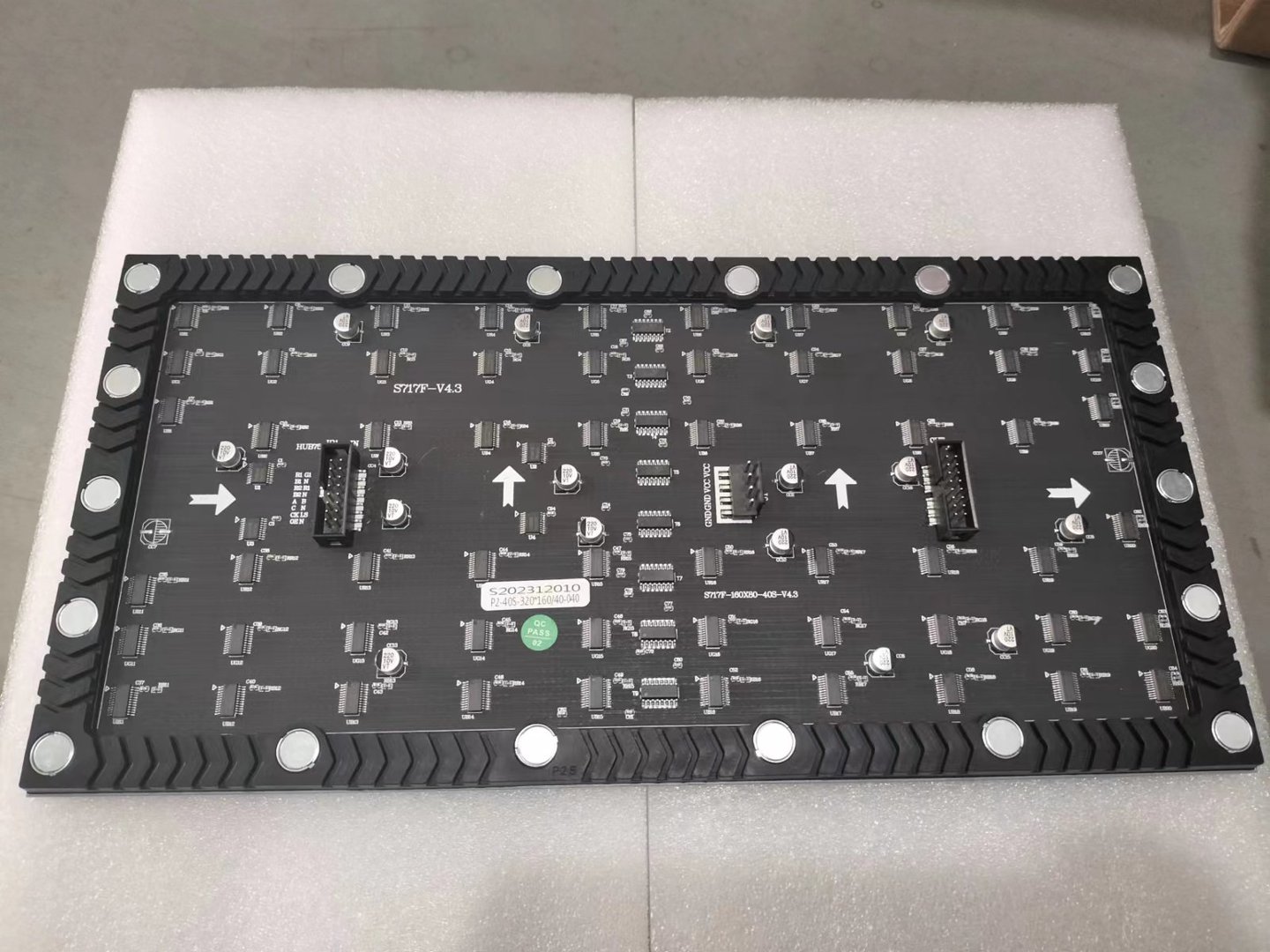

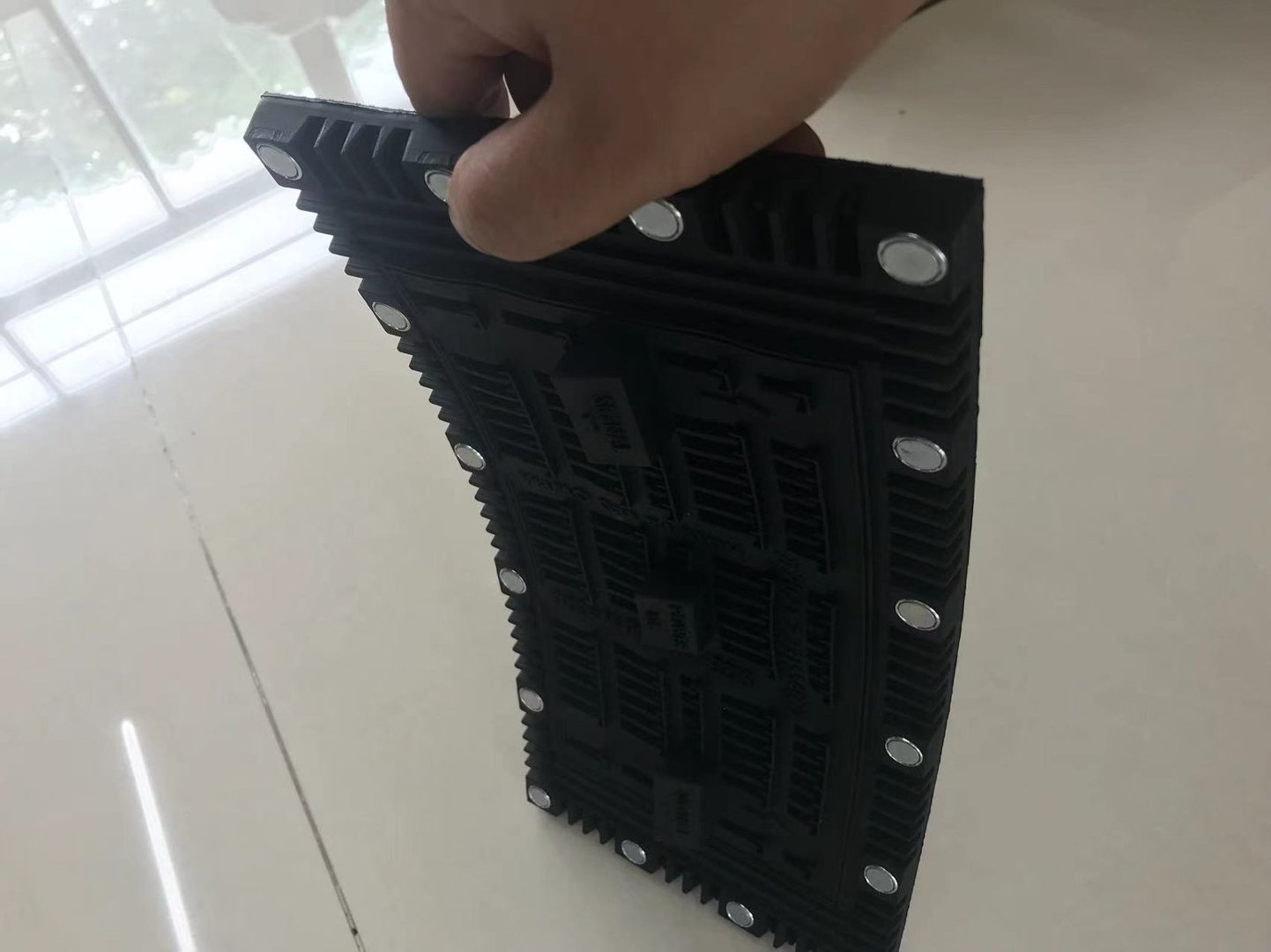

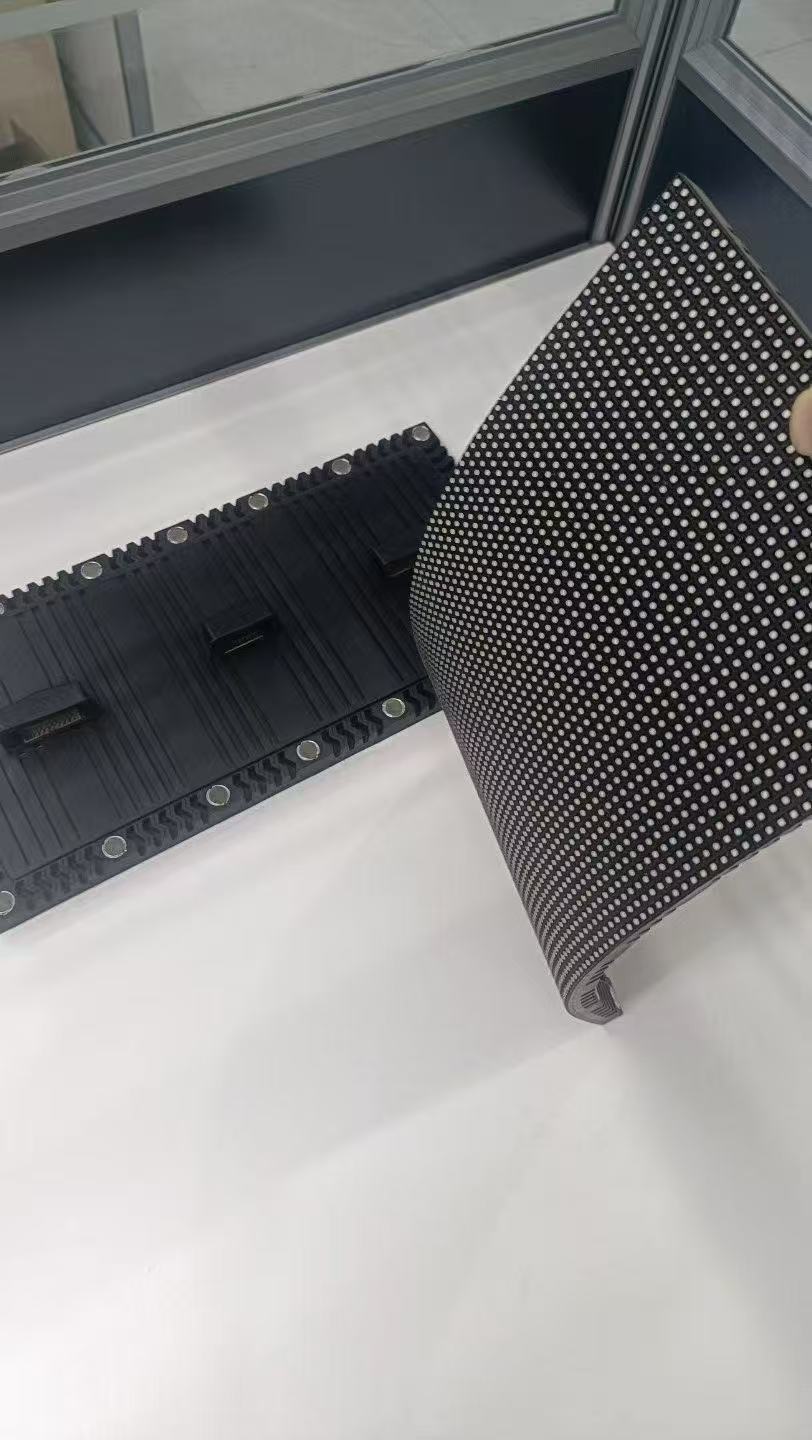

| maintenance | The flexible led modules have built-in strong magnets on bottom for front installation and service. | |||||||
