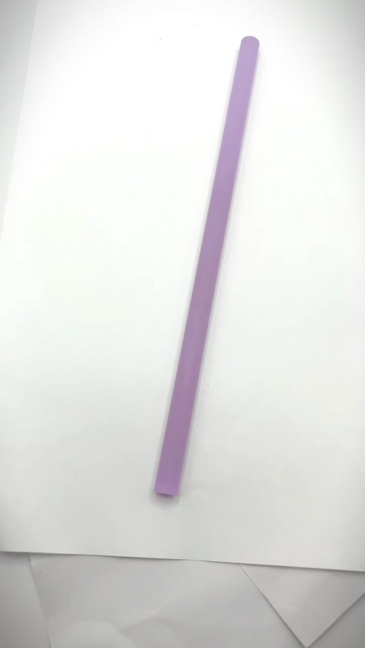

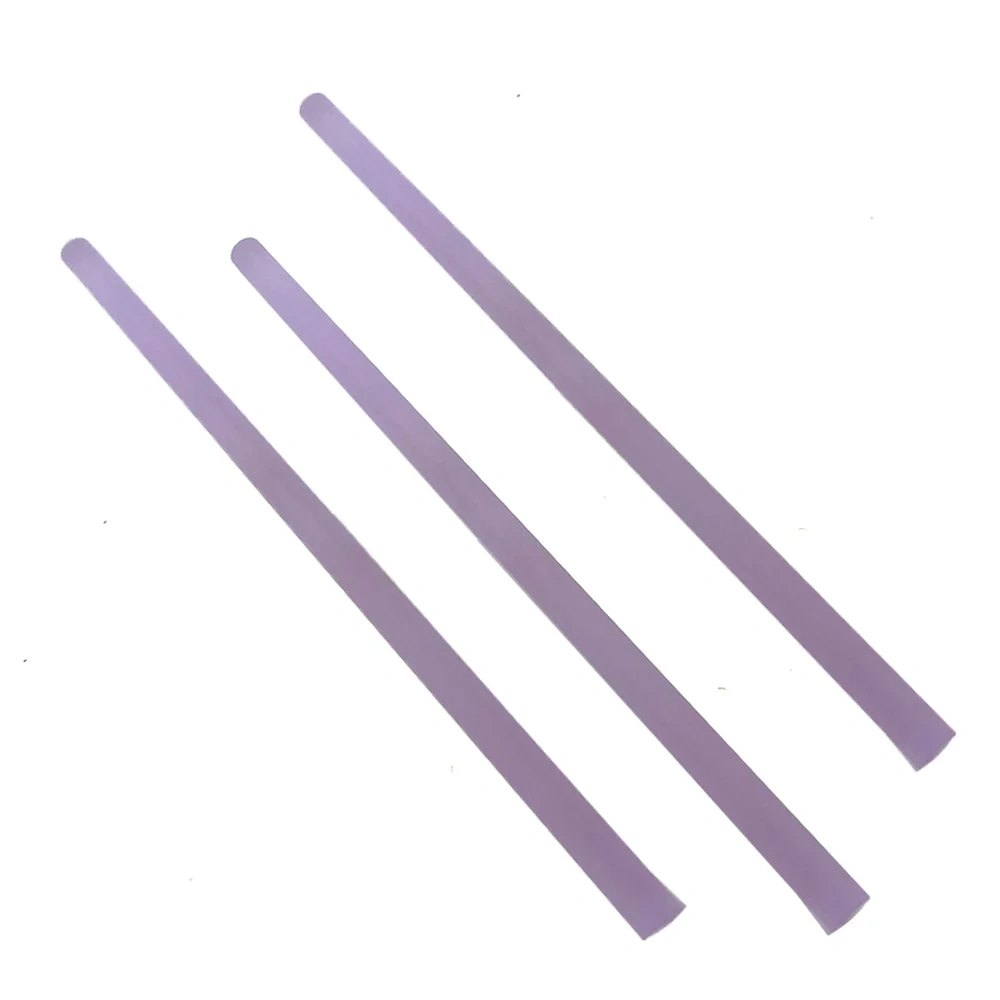

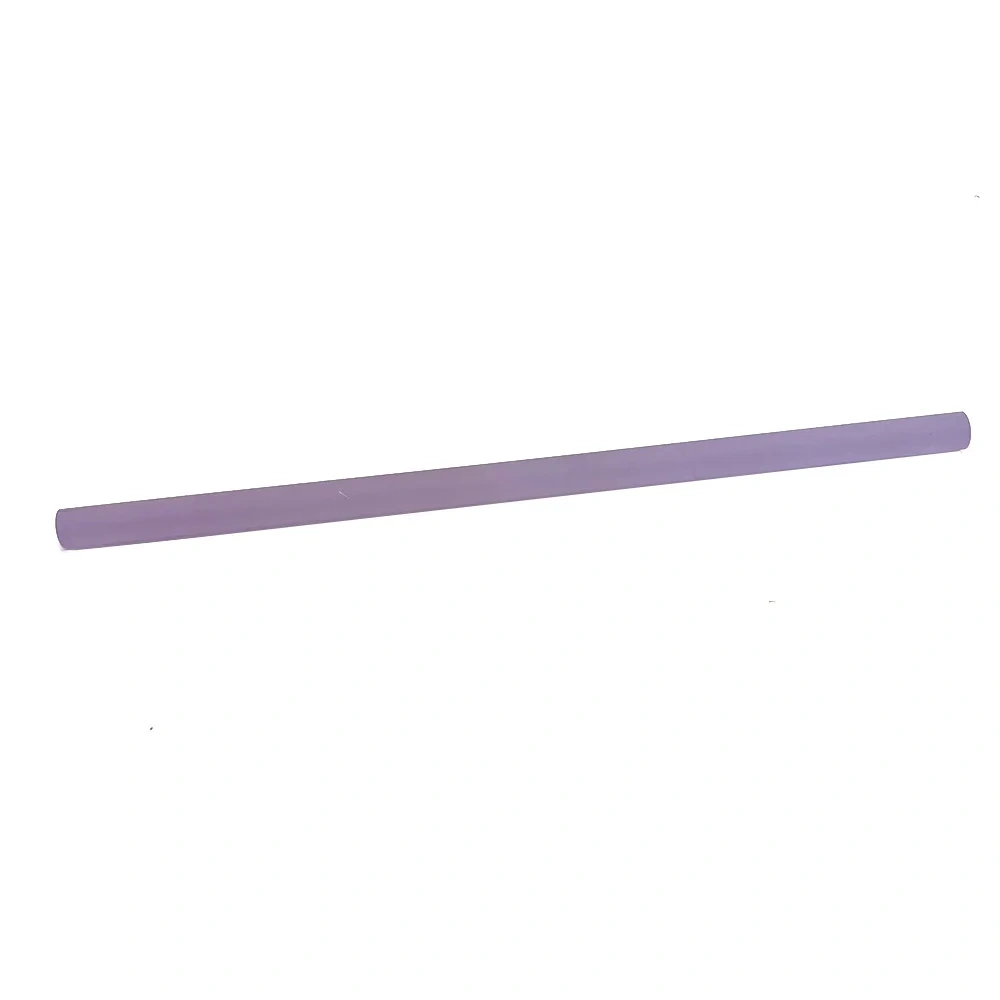

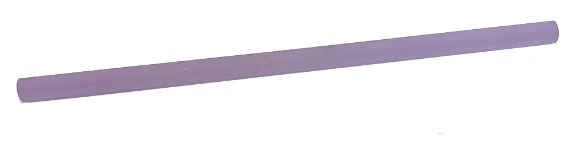

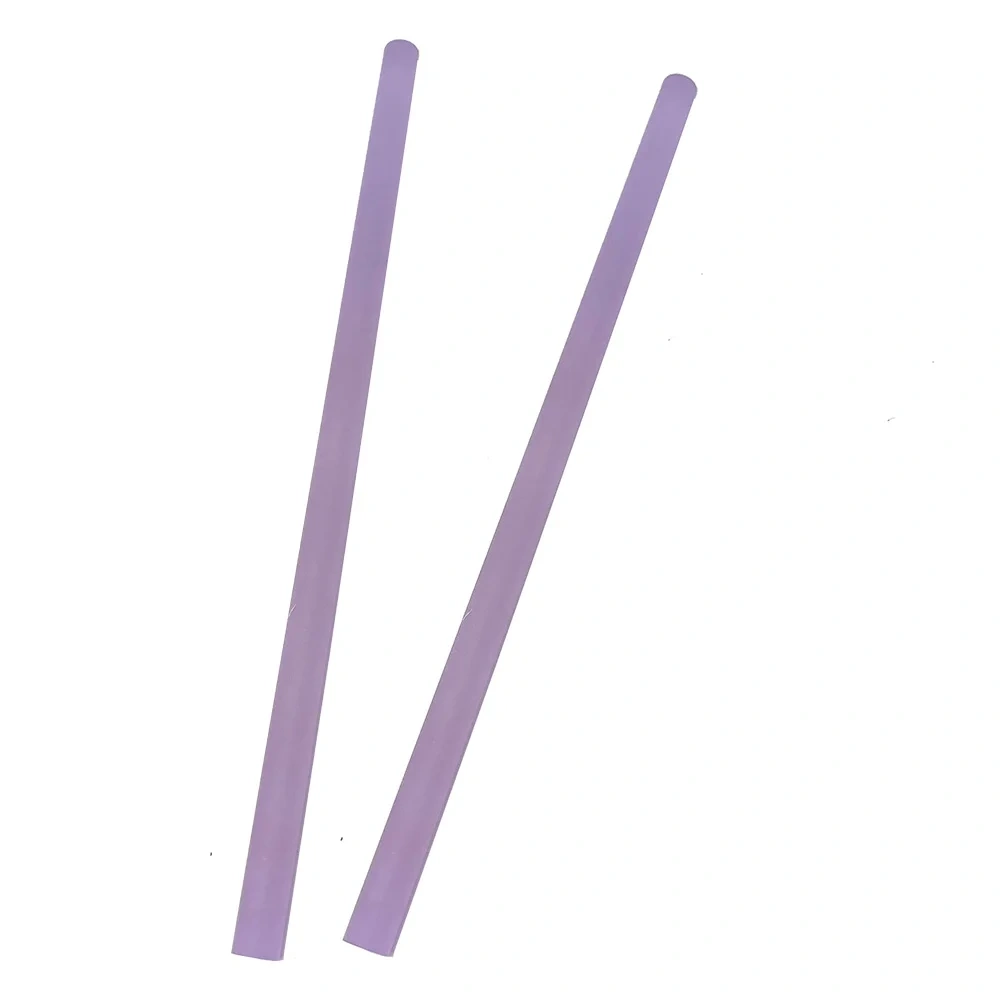

Laser Cutting Machines Accessories , Laser Crystal Rod
Details:
MOQ : 1pc
Product Size : standard production, status is 100%new
Warranty : available（All parts have been checked by our QC before ship out）
Compatible for : For YAG Laser Cutting Machines Parts
Suitable for laser equipment such as advertising welding, mold welding, jewelry welding, etc
Nd: for YAG laser, it can be used in military, medical, industrial and other fields.
We provide for YAG laser rod with a stable high optical homogeneity, high consistency, more precision, long life characteristics.
Product type: Laser crystal
Operation mode: repetitive pulse type
Output form: optical pump type
Working substance: solid
Excitation method: power type
Light path: reflective light external path
Color: pink, purple, yellow
Transmission model: dual power supply type
Transfer speed: High speed
Strong welding power suitable for laser equipment such as advertising welding, mold welding, jewelry welding, etc
Material: | Nd: YAG crystal | Concentration range: | 1.0at%±0.1 |
|
Coating requirements: | AR/AR@1064 |
|
Machining accuracy | Parallelism：＜ 10″ | Scratch/Dig：20/10（MIL-0-13830A） |
|
Perpendicularity：＜ 5′ | Flatness：λ/10 |
|

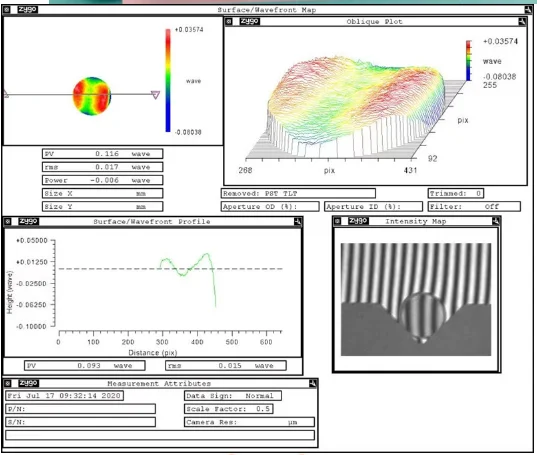

Extinction ratio: | 33.4（dB） | Interferogram: |
|
|
Interference fringes: | 0.029（λ/inch） |
|
|
|
|
You can choose different sizes ( If you need other sizes models, please kindly contact me before placing order )
Diameter 3mm,length 67mm, Diameter 5mm,length 85mm.
Diameter 6mm,length 100mm, Diameter 6mm,length 120mm, Diameter 6mm,length130 mm, Diameter 6mm,length 145mm, Diameter 6mm,length 150mm, Diameter 6mm, length 155mm, Diameter 6mm, length 160mm, Diameter 6mm,length 165mm.
Diameter 6.35mm,length 130mm.
Diameter 7mm,length 110mm, Diameter 7mm,length 130mm, Diameter 7mm, length 140 /145mm, Diameter 7mm, length 150 / 155 mm, Diameter 7mm, length 160/ 165 / 185mm.
Diameter 8mm,length 100mm, Diameter 8mm,length 110mm, Diameter 8mm,length 125mm, Diameter 8mm, length 140mm, Diameter 8mm, length 145mm, Diameter 8mm,length 150mm, Diameter 8mm, length 155mm, Diameter 8mm, length 160mm, Diameter 8mm,length 165mm, Diameter 8mm,length 185mm, Diameter 8mm,length 195mm, Diameter 8mm,length 215mm ect...
Advantages:

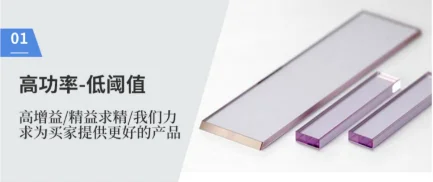

1. High gain, low threshold, high efficiency
2. High optical quality, low loss

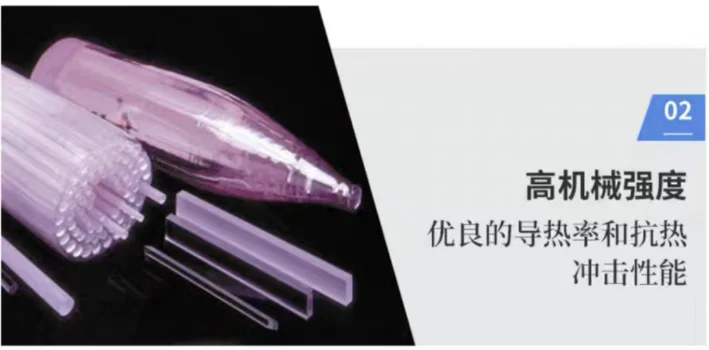

3. High mechanical strength, excellent thermal conductivity and thermal shock resistance

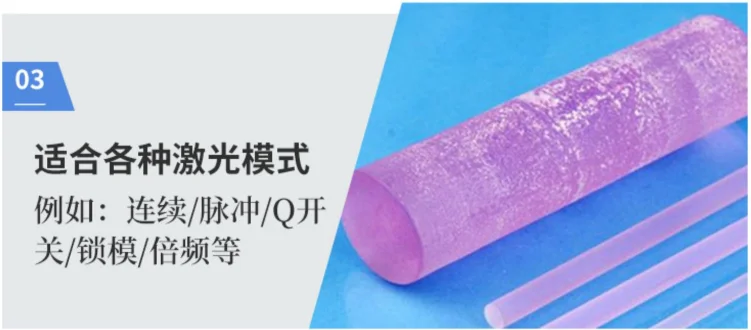

4. Suitable for a variety of laser work mode (continuous, pulse, Q switch, clamping, multiplier, etc.)
5. Suitable for high average power solid-state lasers
Technical parameters:
Doping concentration: Nd: 0.1-1.3at%
Crystal orientation: 111 o'clock [100], within 5 "in the morning
Crystal rod size: diameter: 2-15mm, length: 3-200mm, can be customized according to customer requirements
Dimensional tolerance: diameter:+0.00/-0.05mm, length: 0.5mm
Cylinder processing: 400 # grinding, please grind or polish
Straightness between end face and rod shaft, flatness of end face, surface quality
Inverted edge: 0.15 soil 0.05mm
Reflectivity of Anti-reflective coating: less than or equal to 0.25% @ 1064nm
Film layer resistance to laser damage reading value:>500WR/cm2
Optical spectral characteristics:
Laser wavelength: 1064nm
Fluorescence lifetime: 230 u s@1at %Nd
Diode pumped absorption wavelength: 808nm
Pump absorption bandwidth: 1nm
Main pump band range: 400-850nm
Refractive index: 1.8197@1064nm

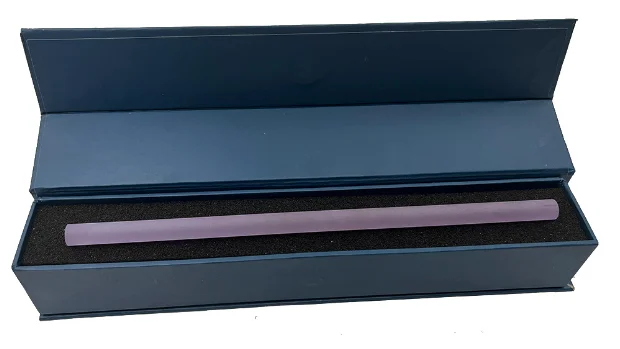

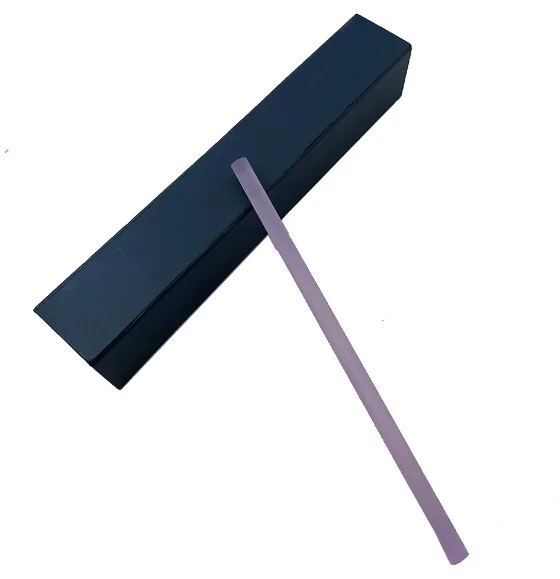

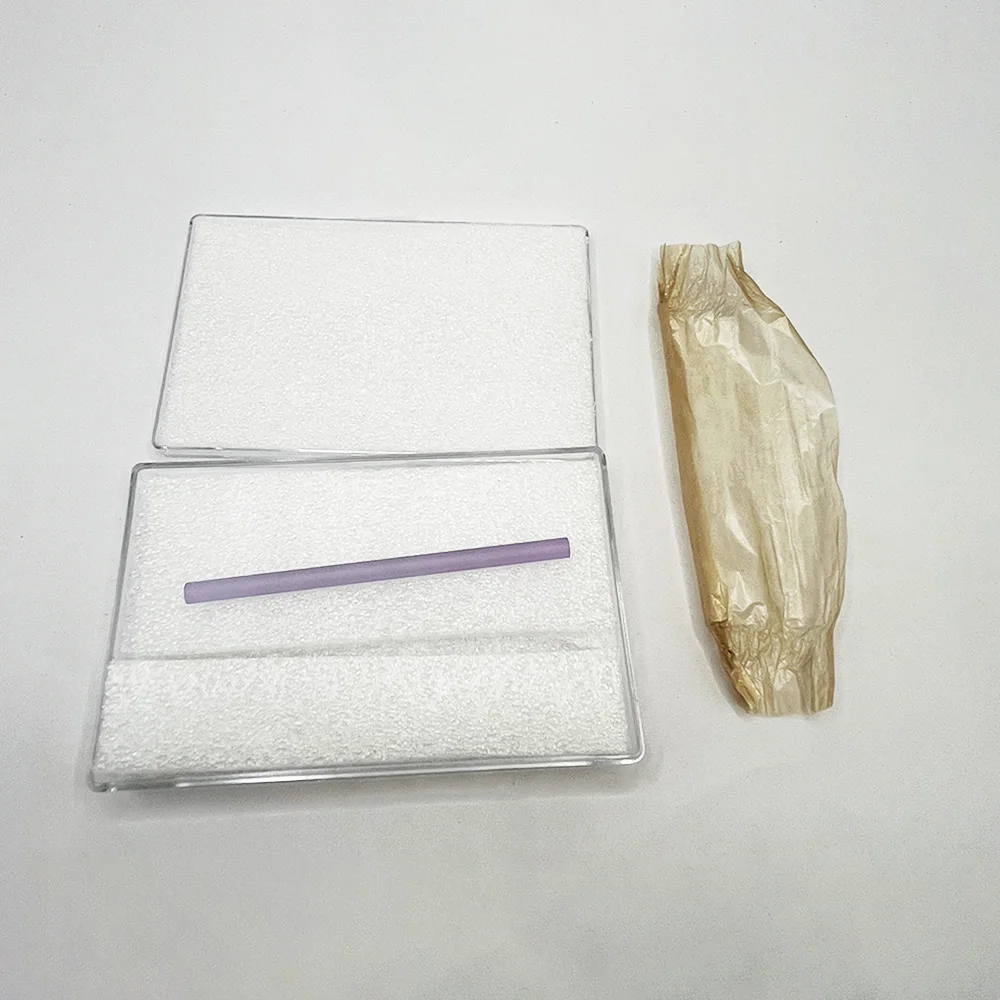

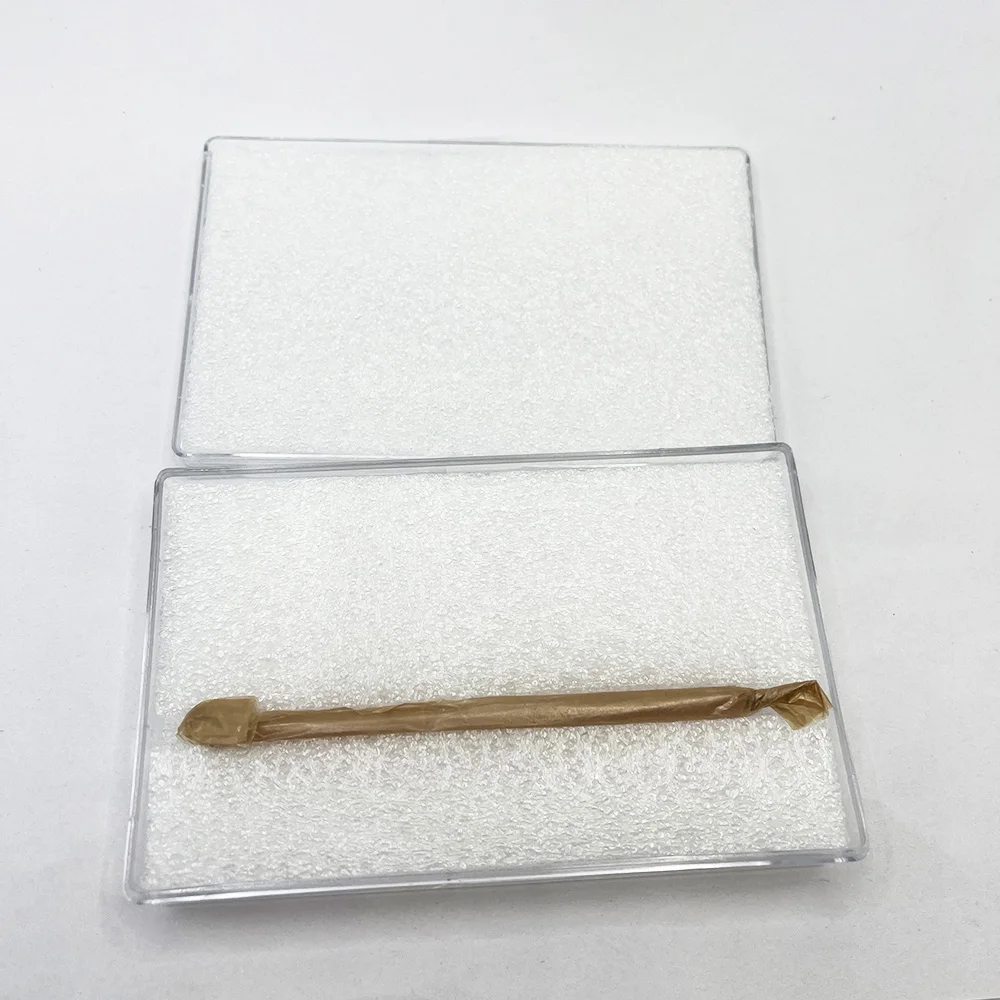

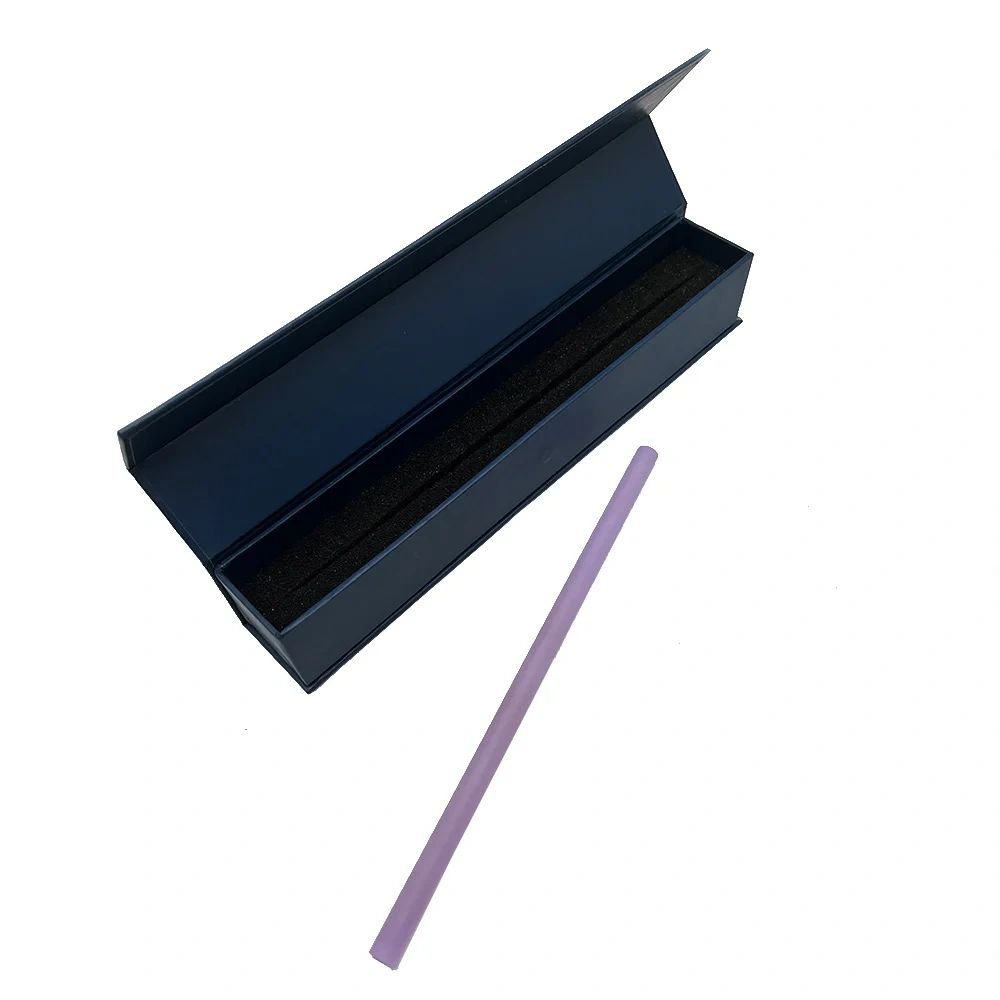

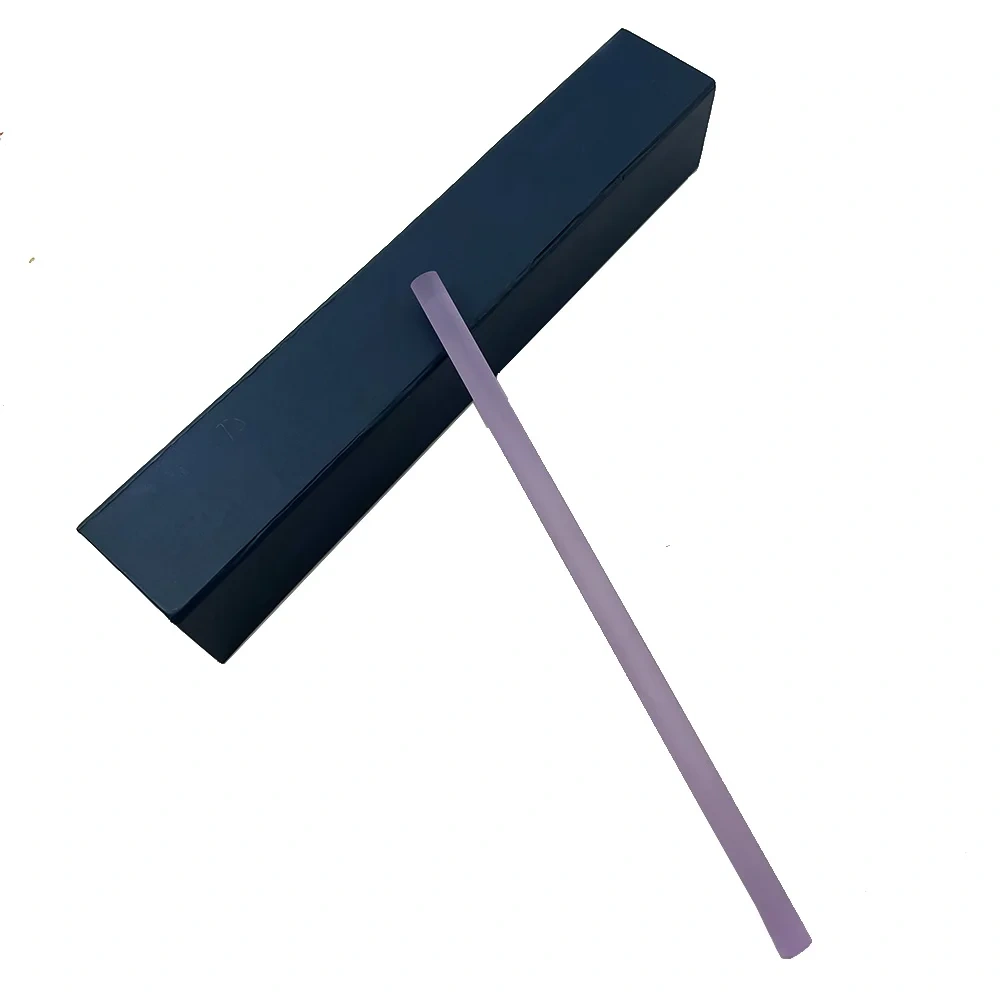

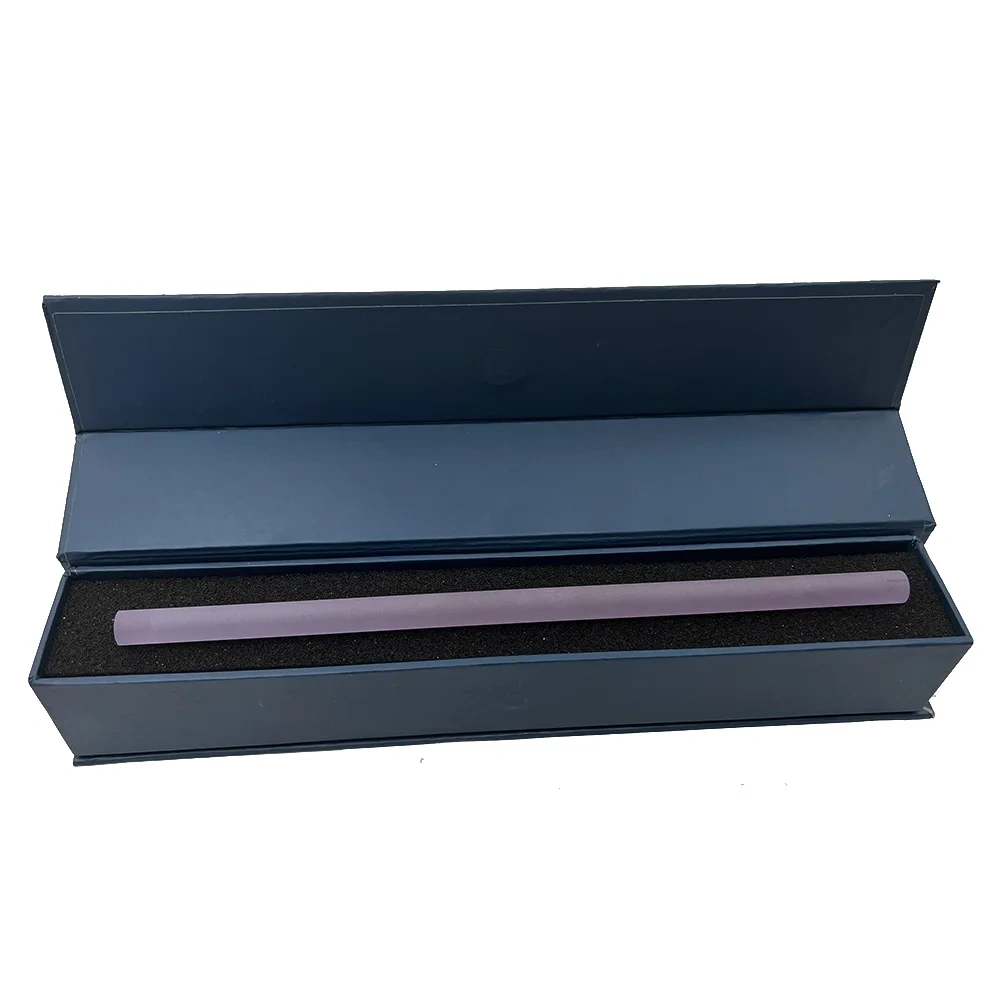

Product boxes are randomly sent for your order, Available in dark box and transparent box colors. Please be informed before placing an order, Don't mind!
Note:
The length of the Laser Crystal Rod we usually ship is more longer, because if the Laser Crystal Rod need maintenance, they can be cut. After cutting, the Laser Crystal Rod can continue to be used. And the Laser Crystal Rod are longer, their energy will also be higher. For general customer orders, we usually send longer Laser Crystal Rod because we want them to be easier to repair in the future. If they are shorter, the energy will weaken when the repair and cutting are done, and they may not be suitable for that cavity anymore.
Related Laser Cutting Parts
If you are interested the parts in the pictures below shown then you can click the below picture directly , or please contact with us.
Doped aluminum garnet - (Nd: YAG) is currently a widely used solid-state laser material. It is also an important laser crystal for comprehensive performance applications. Its superior basic properties make it often used in near-far infrared solid-state lasers and their frequency doubling and tripling, and it has been widely used in scientific research, medical treatment, industrial and military lasers. The Nd: YAG sold by the company is from the leading manufacturer of Nd: YAG laser products in China. It has a crystal production line on a Chinese scale, whose crystal billet size and crystal quality are in line with the international advanced level. It stocks high-quality Nd: YAG crystal components of various specifications, and provides large-sized high-quality Nd: YAG crystal rods, crystal Flat noodles and crystal discs for high-power and ultra high-power lasers. It has the advantages of high laser efficiency, high damage threshold, good thermal conductivity, and can realize multiple working modes (continuous, pulse, Q-switching, mode locking, frequency doubling, etc.). Among them, the continuous type is a very good working mode of Nd: YAG laser. Its continuous laser output has reached the Kilopower level. As one of the solid laser crystal materials with good comprehensive performance, it is widely used in industry, scientific research and other fields
