Product Parameter

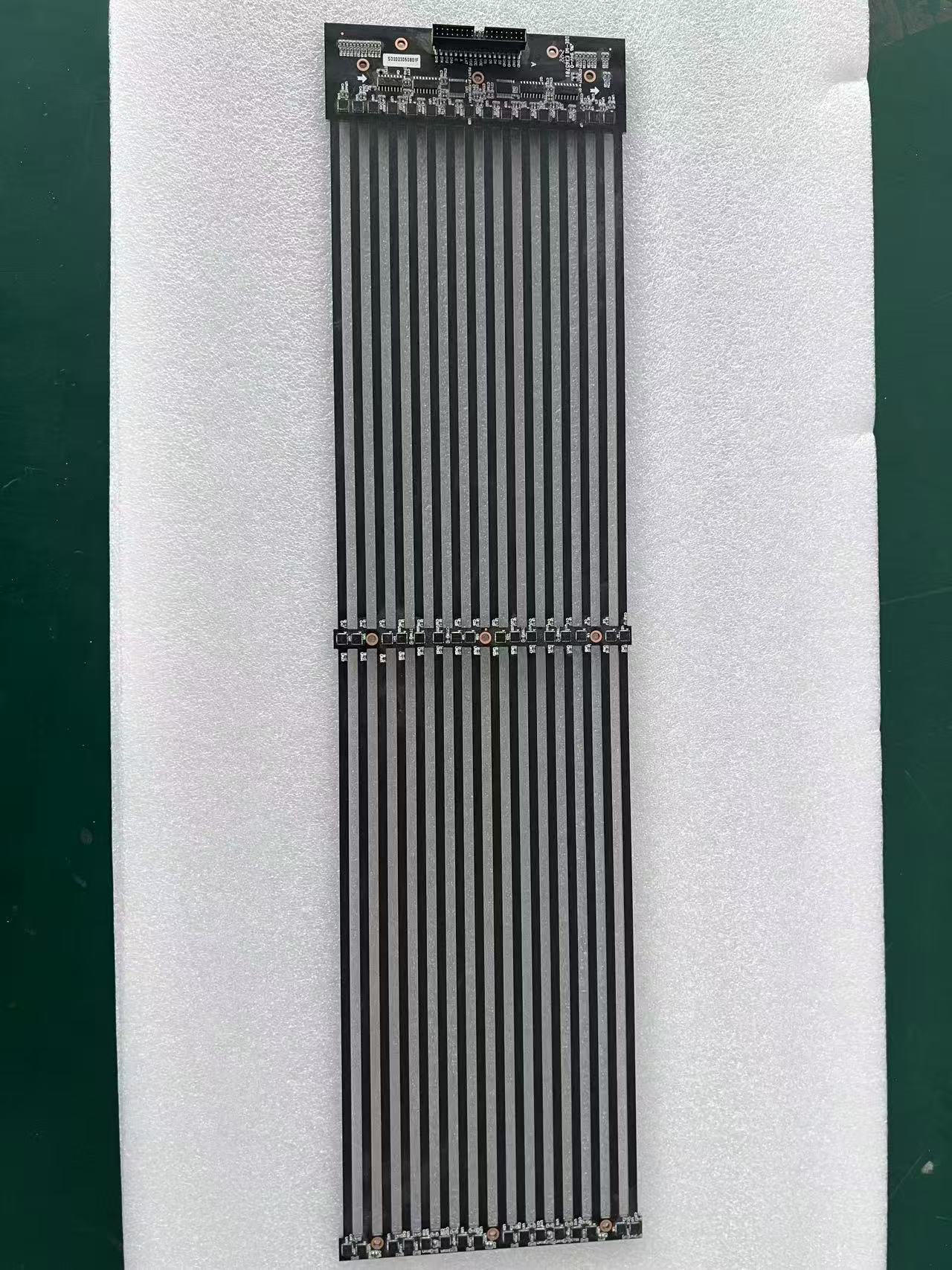

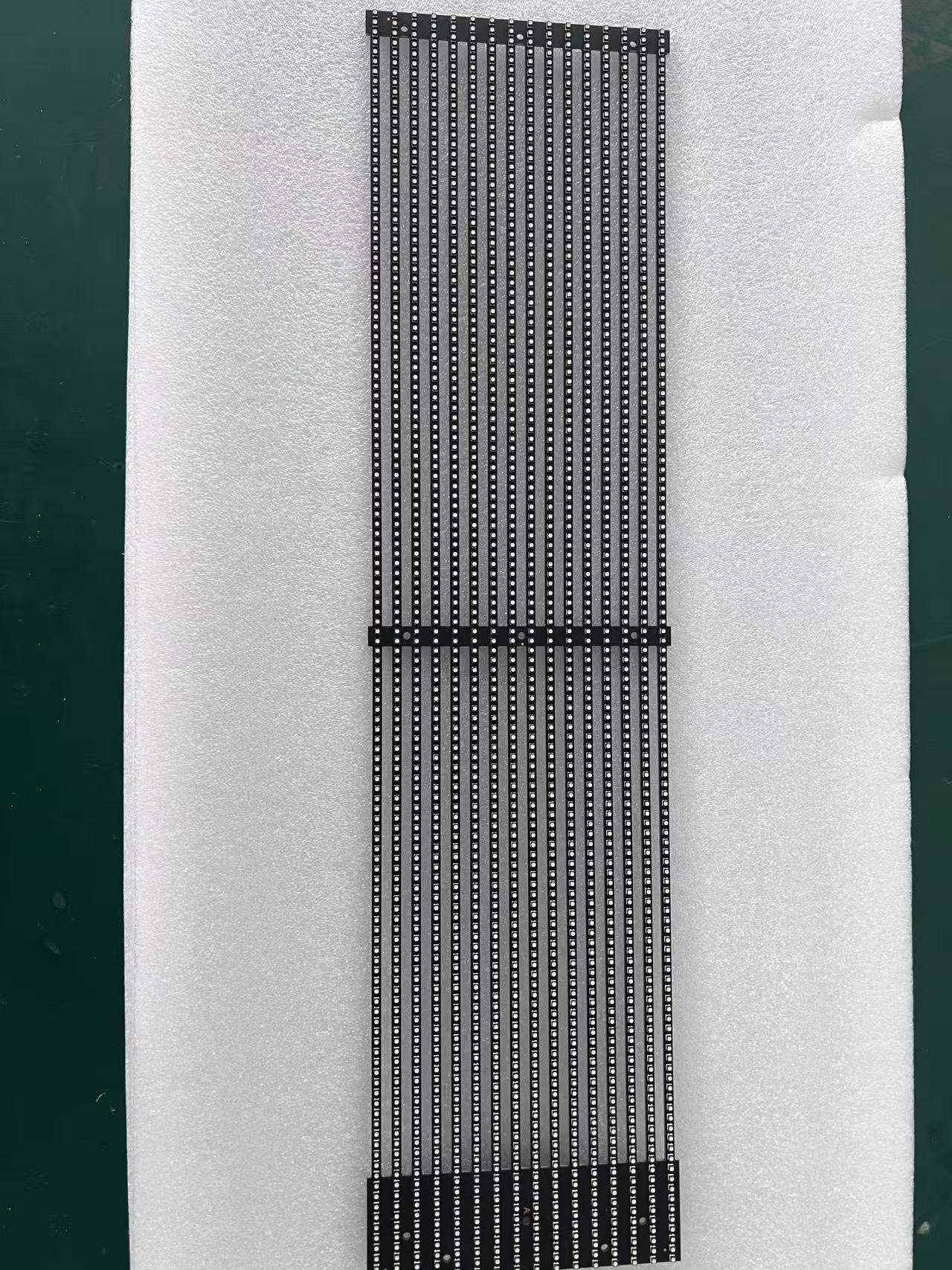

| module details |
| led lamp |
SMD1921 |
module resolution |
128x16=2048 dots |
| module size |
500x125mm |
pixel density |
32768 dots/sqm |
| view angle |
(H/V)140 /140 degrees |
nearest view distance |
>4m |
| scan mode |
16s |
refresh rate |
1920Hz |
| cabinet details |
| cabinet size |
1000x1000x80mm |
cabinet resolution |
256x128=32768 dots |
| brightness |
800-1500cd cd |
gray scale |
≥16.7M color |
| color processing |
R(1024)×G(1024)×B(1024) |
protection level(front/back) |
IP34 |
| receiving card |
by default, novastar A5s |
receiving card quantity (pcs) |
1 |
| power supply |
CE certified 200W power supply |
power supply quantity (pcs) |
2 |
| input voltage |
by default, 220V AC, 50/60Hz input, (if clients need 110V AC input, pls inform us to change power supply) |
| max/average power consumption |
(calculated according to power supply quantity) 600/200 W/sqm |
| working humidity |
10%～95% |
working temperature |
-20℃ ～ +50℃ |
| cabinets material |
diecasting aluminum |
cabinet GW |
<8KG/pcs |
| maintenance |
screen front service |
Malfunction Dot Rate |
less than 0.0001 |
| Life-span |
100,000 hours |
MTBF( mean time between failures) |
5000 hours |
| package data |
by default, woodencase package 9 in 1, L*W*H: 800x700x700 mm, GW: 90kg, Volume: 0.4 CBM |

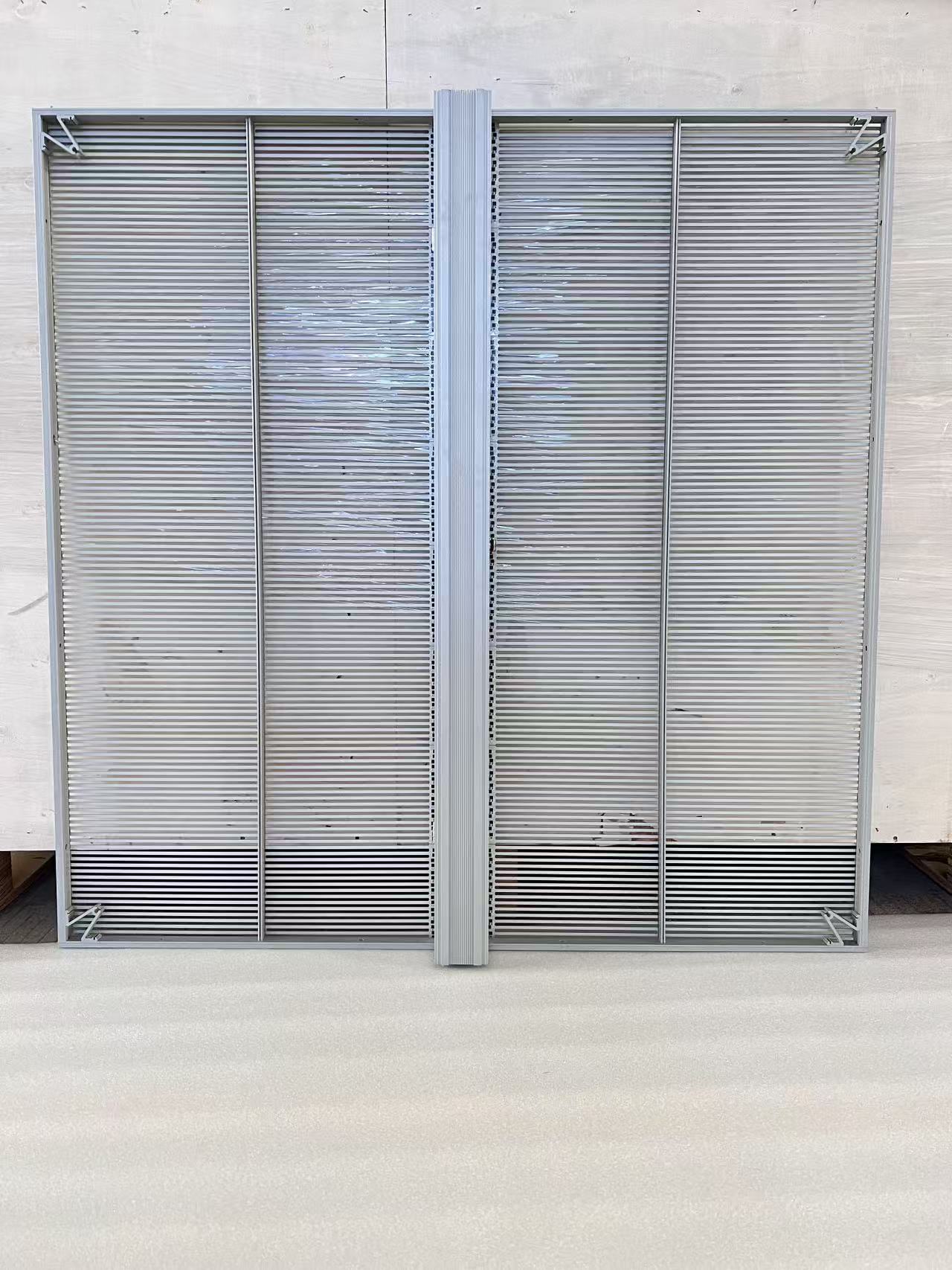

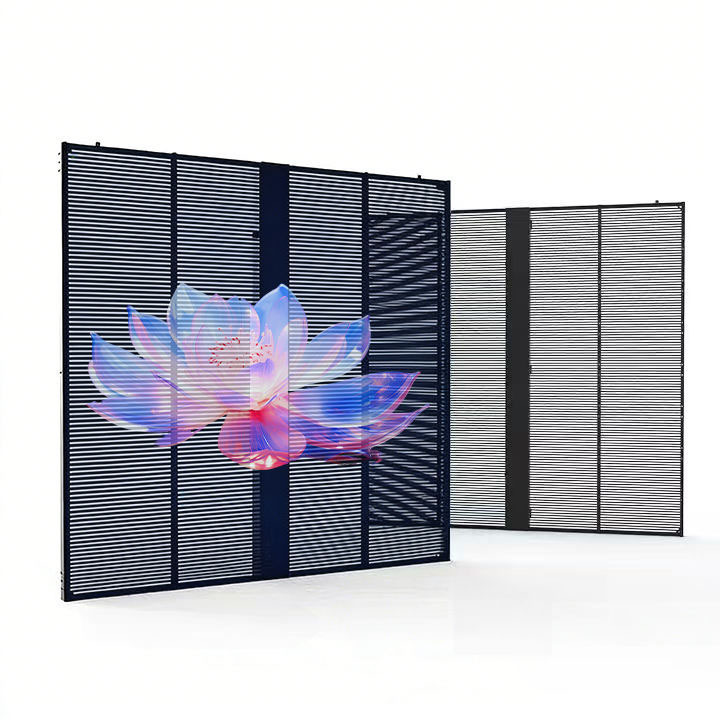

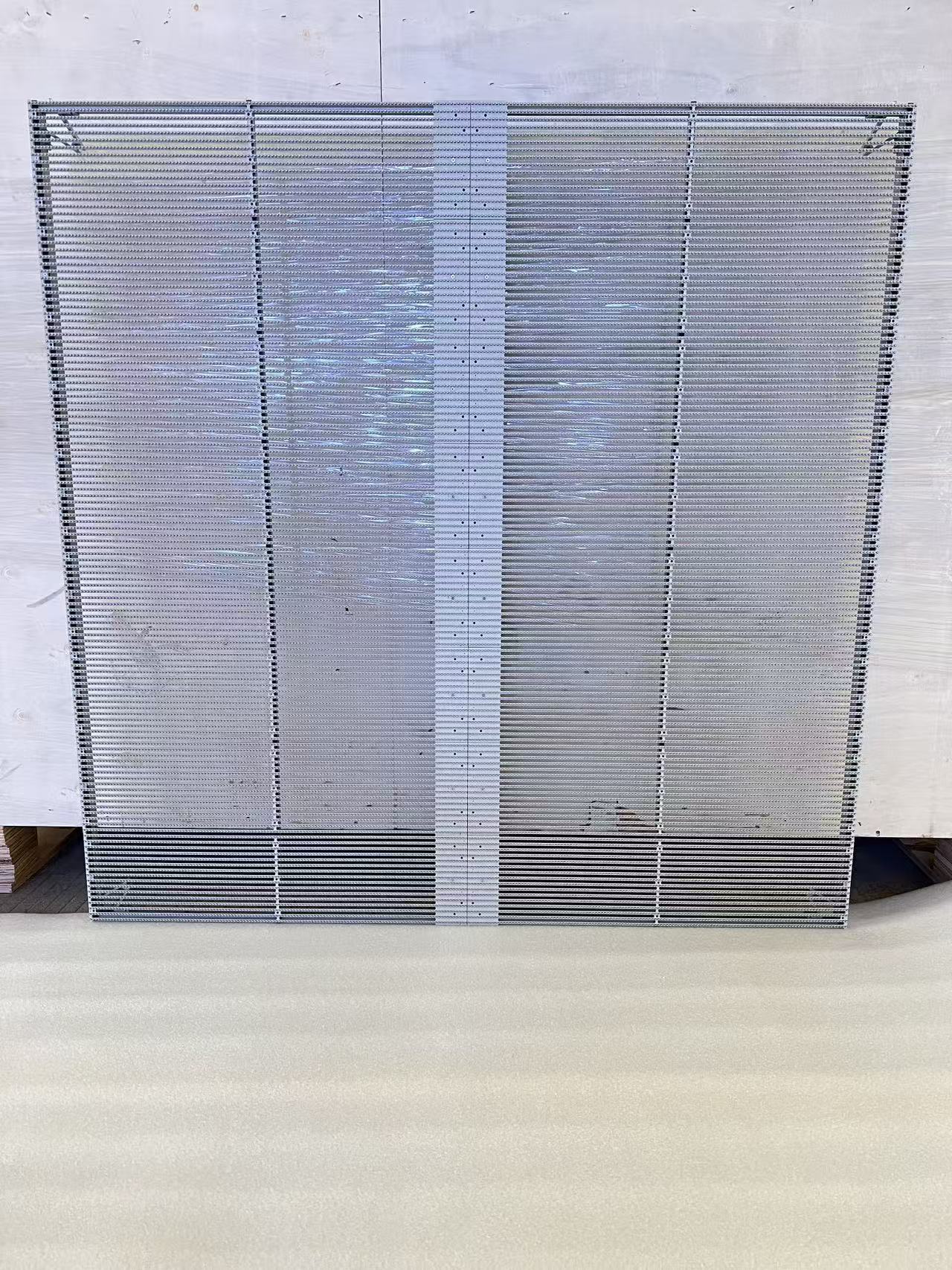

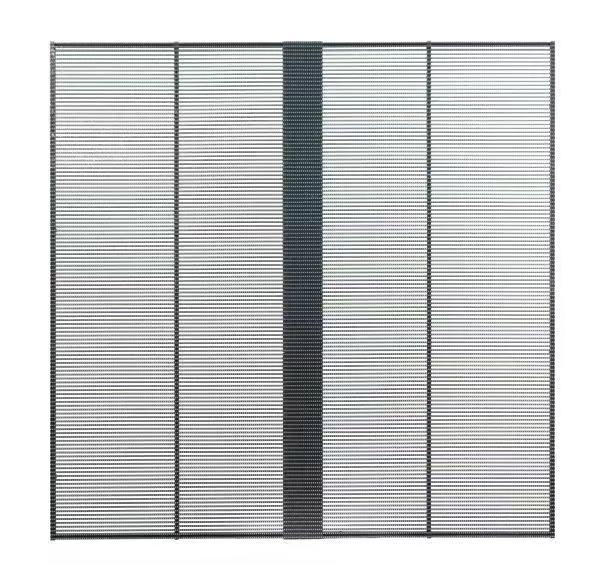

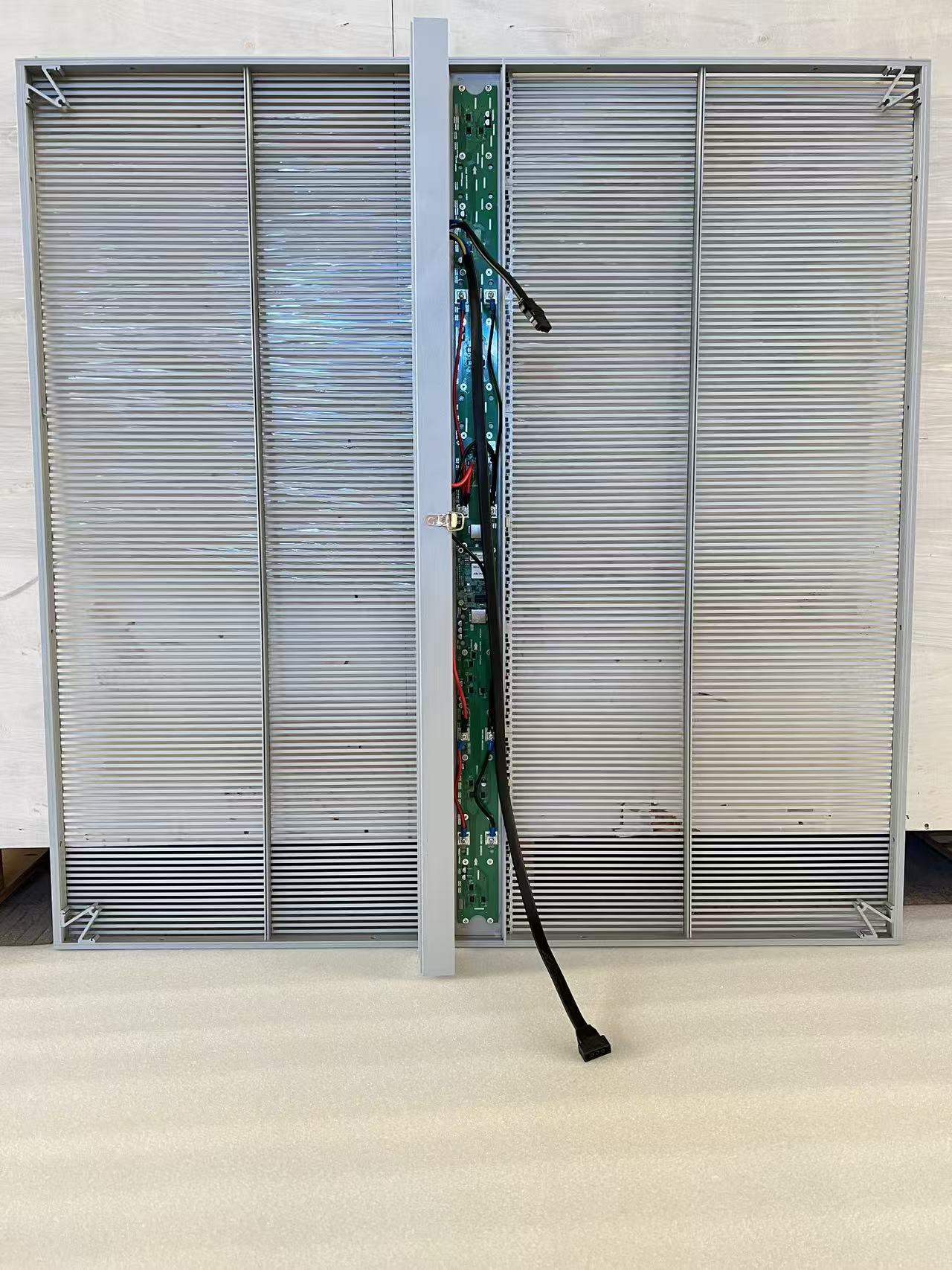

Introducing the Premier Transparent LED Display Solution: 800-1500cd cd Indoor P3.91-7.81 Transparent LED Display Cabinet (1000x1000 visual technology, our 800-1500cd cd Indoor P3.91-7.81 Transparent LED Display Cabinet redefines how enterprises engage audiences in modern architectural environments. Engineered for seamless integration with glass structures, this 1000x1000mm unit delivers exceptional visual performance while preserving architectural aesthetics.
Technical Specifications
- Panel Type: Transparent LED Screen
- Brightness: 800-1500cd /m²
- Pixel Pitch: P3.91 to P7.81 (customizable)
- Dimensions: 1000x1000mm
- Structural Design: Ribbon Bar Configuration
- Refresh Rate: High (≥3840Hz)
Key Advantages
:mag_right: Enhanced Visual Transparency
- High Light Permeability: Maintains up to 85% transparency ratio
- Preserved Viewlines: Sustains natural illumination and exterior visibility
- Architectural Integration: Ideal for glass curtain walls without obscuring building aesthetics
:dart: Advanced Engineering
- Ultra-Slim Profile: 10mm ribbon bar thickness
- Minimal Weight: Significantly reduces structural load requirements
- Front Service Access: Replacement of modules within 3 minutes without rear access
- Thermal Management: Passive cooling architecture extends panel longevity
- Energy Efficiency: <300W/m² power consumption
- Dynamic Imaging: 16-bit processing depth with 2000:1 contrast ratio
:building_construction: Adaptive Design
- Modular Matrix: Scalable cabinets enable arbitrary aspect ratios
- Shape Customization: Non-rectangular configurations available
- Environment Options: IP65-rated variant for semi-outdoor applications

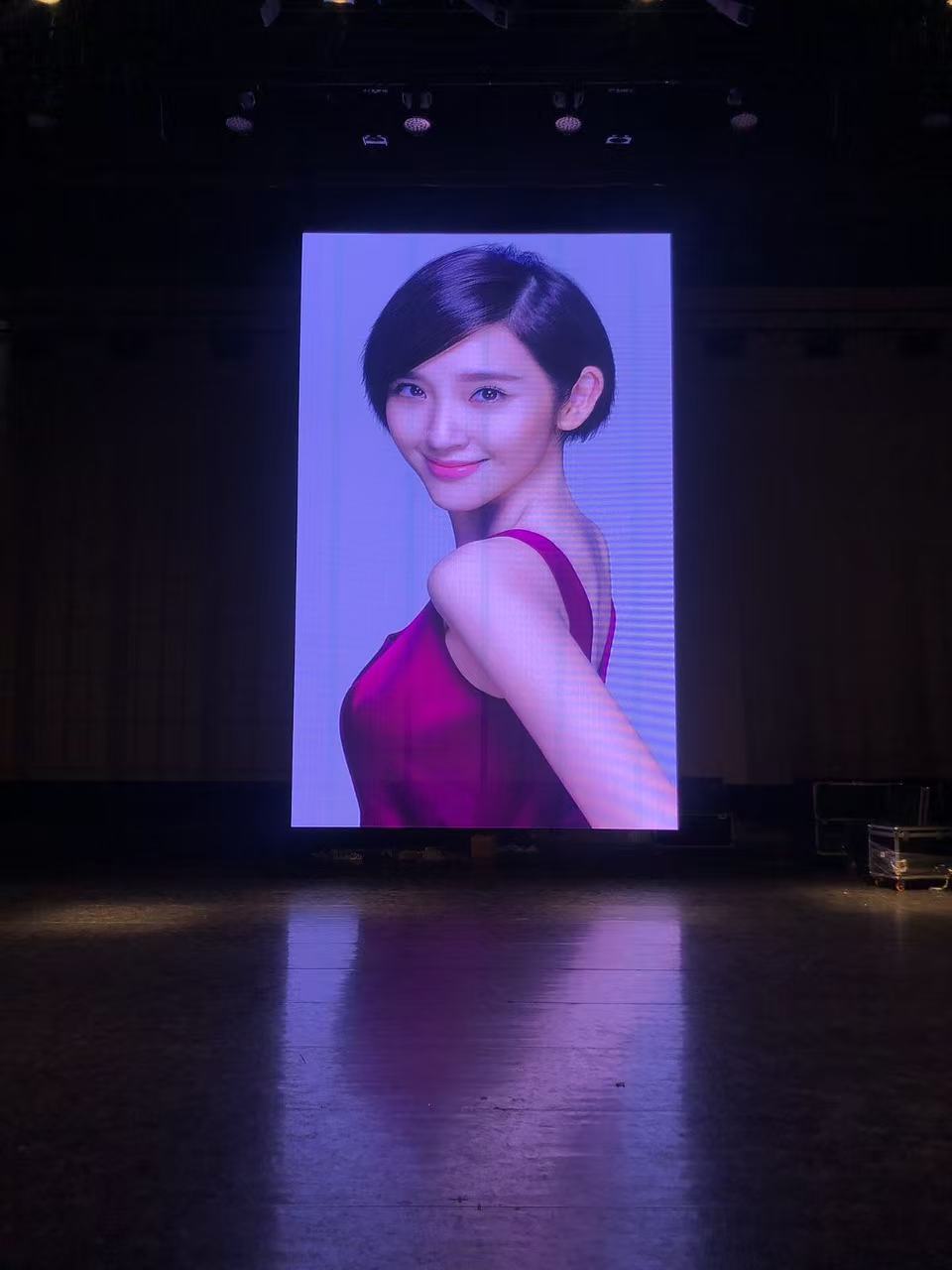

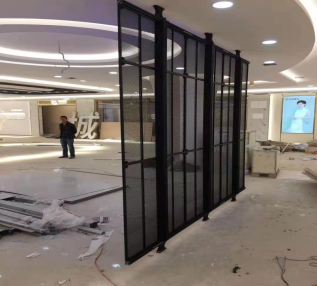

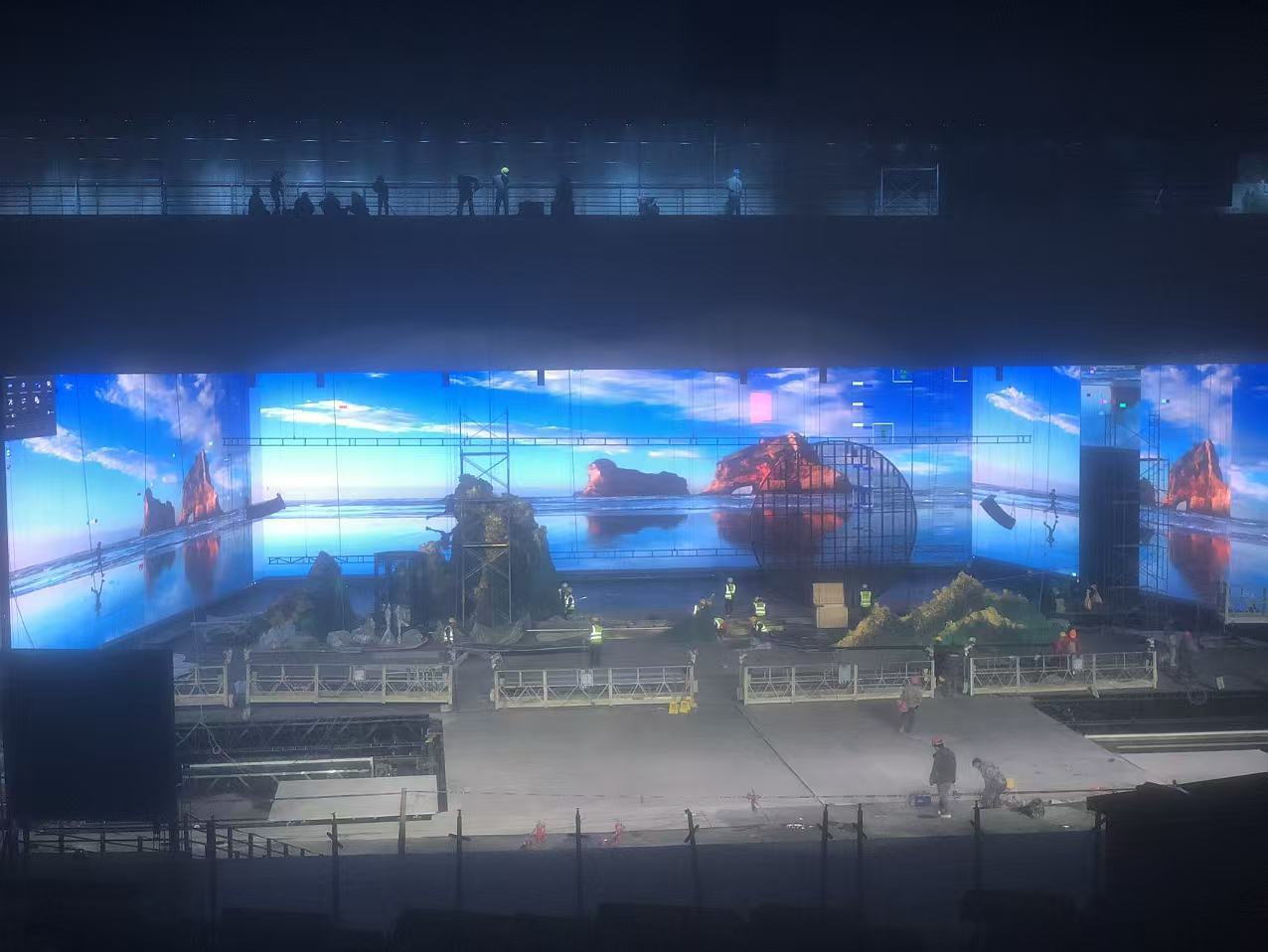

Application Scenarios
This advanced transparent LED platform excels in premium venues requiring pristine design integrity: luxury retail displays, corporate headquarters atriums, museum interactive exhibits, and airport information systems. Implementations have demonstrated over 25% engagement lift while maintaining architectural luminous coherence.
Ready to elevate your spatial experience? Secure your P3.91-7.81 LED cabinets today and transform transparent surfaces into dynamic visual platforms.
Document Revision: E774-2026-10 :: Compliant with IEC 62366 ergonomic standards
