Product Parameter

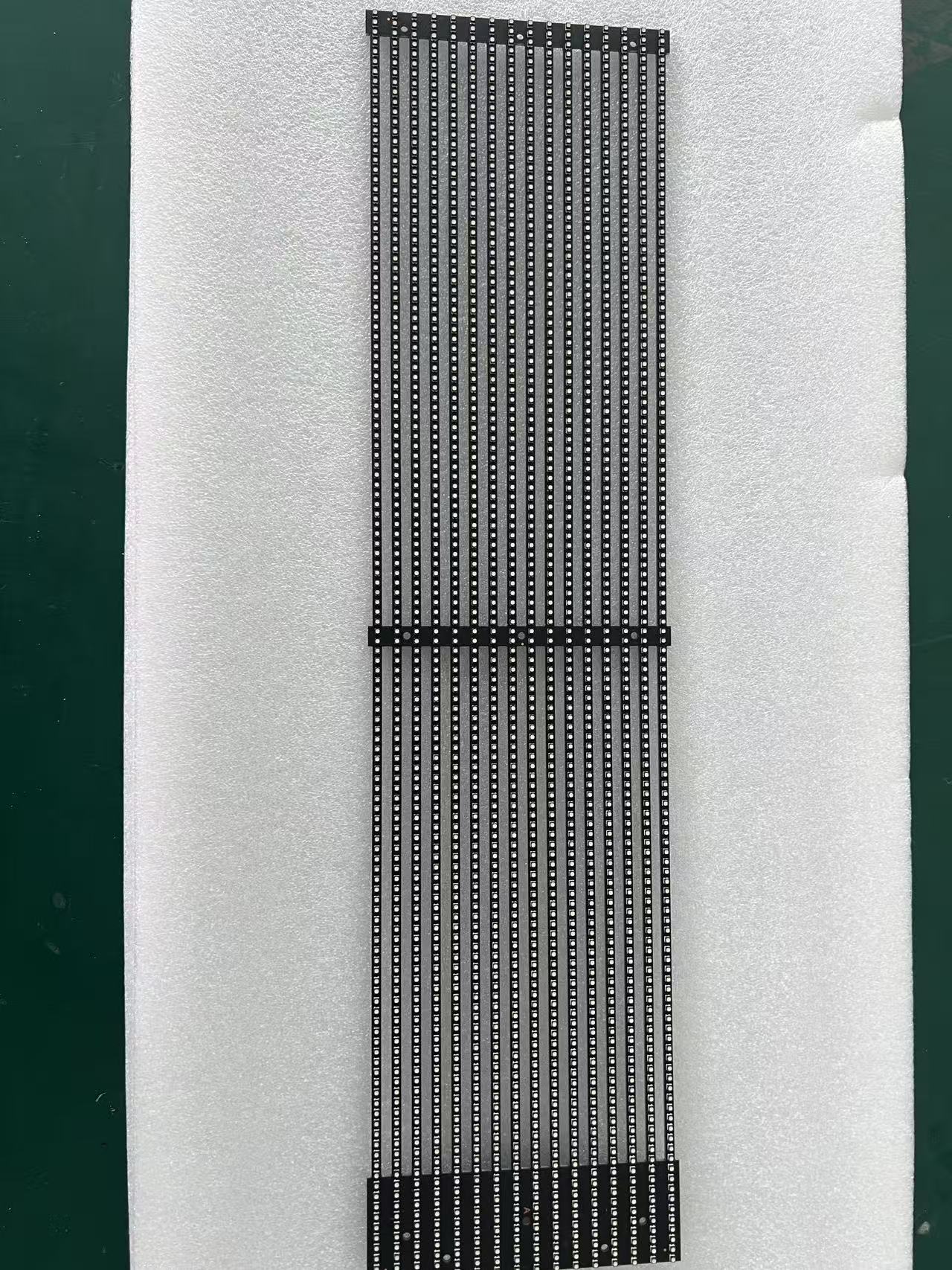

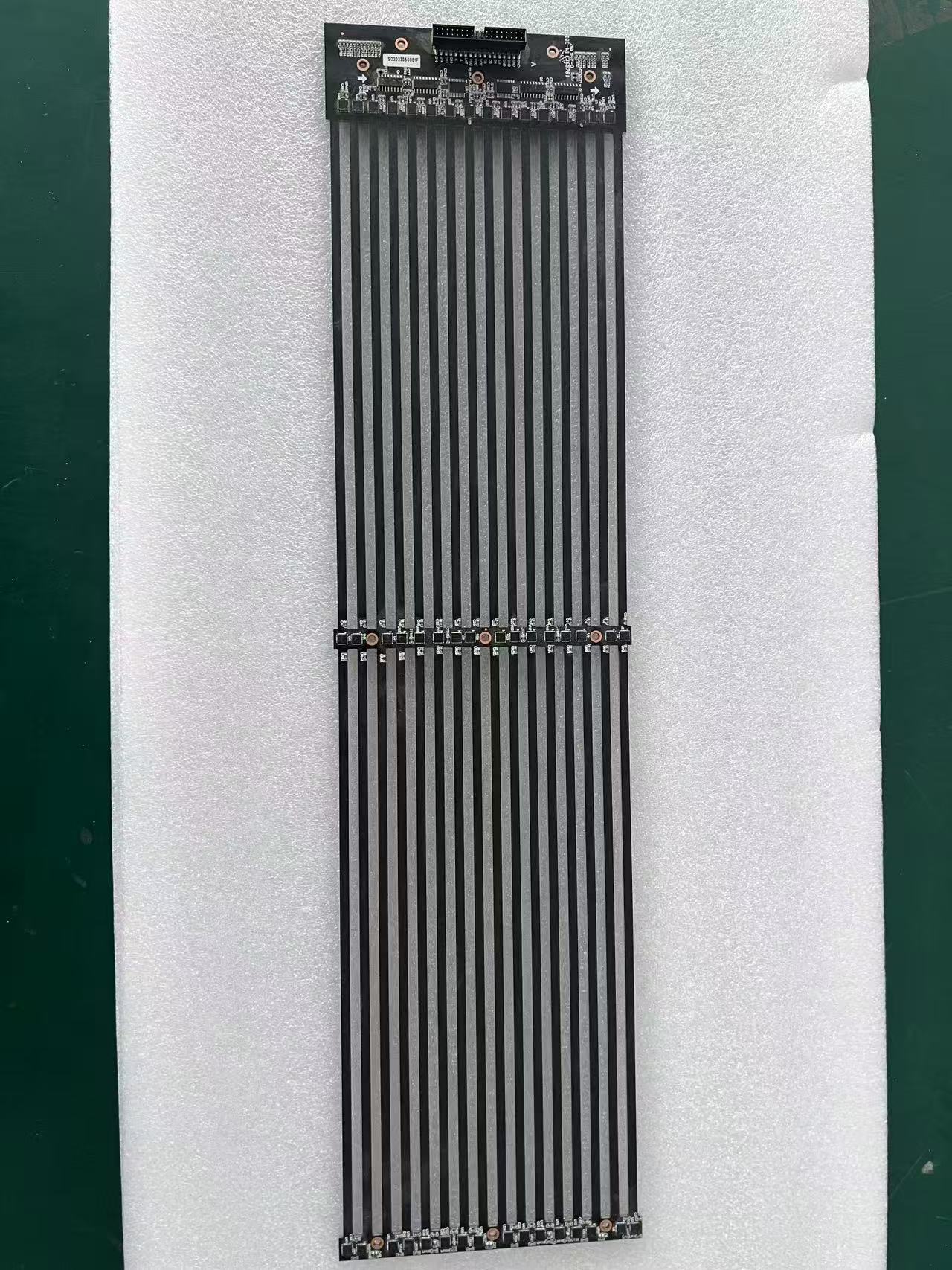

| module details |
| led lamp |
SMD1921 |
module resolution |
128x16=2048 dots |
| module size |
500x125mm |
pixel density |
32768 dots/sqm |
| view angle |
(H/V)140 /140 degrees |
nearest view distance |
>4m |
| scan mode |
16s |
refresh rate |
1920Hz |
| cabinet details |
| cabinet size |
1000x1000x80mm |
cabinet resolution |
256x128=32768 dots |
| brightness |
500-600cd |
gray scale |
≥16.7M color |
| color processing |
R(1024)×G(1024)×B(1024) |
protection level(front/back) |
IP34 |
| receiving card |
by default, novastar A5s |
receiving card quantity (pcs) |
1 |
| power supply |
CE certified 200W power supply |
power supply quantity (pcs) |
2 |
| input voltage |
by default, 220V AC, 50/60Hz input, (if clients need 110V AC input, pls inform us to change power supply) |
| max/average power consumption |
(calculated according to power supply quantity) 600/200 W/sqm |
| working humidity |
10%～95% |
working temperature |
-20℃ ～ +50℃ |
| cabinets material |
diecasting aluminum |
cabinet GW |
<8KG/pcs |
| maintenance |
screen front service |
Malfunction Dot Rate |
less than 0.0001 |
| Life-span |
100,000 hours |
MTBF( mean time between failures) |
5000 hours |
| package data |
by default, woodencase package 9 in 1, L*W*H: 800x700x700 mm, GW: 90kg, Volume: 0.4 CBM |

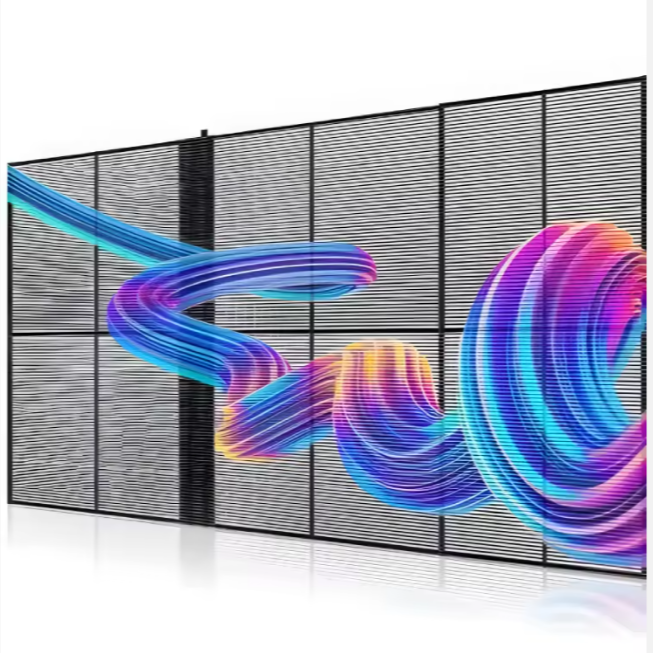

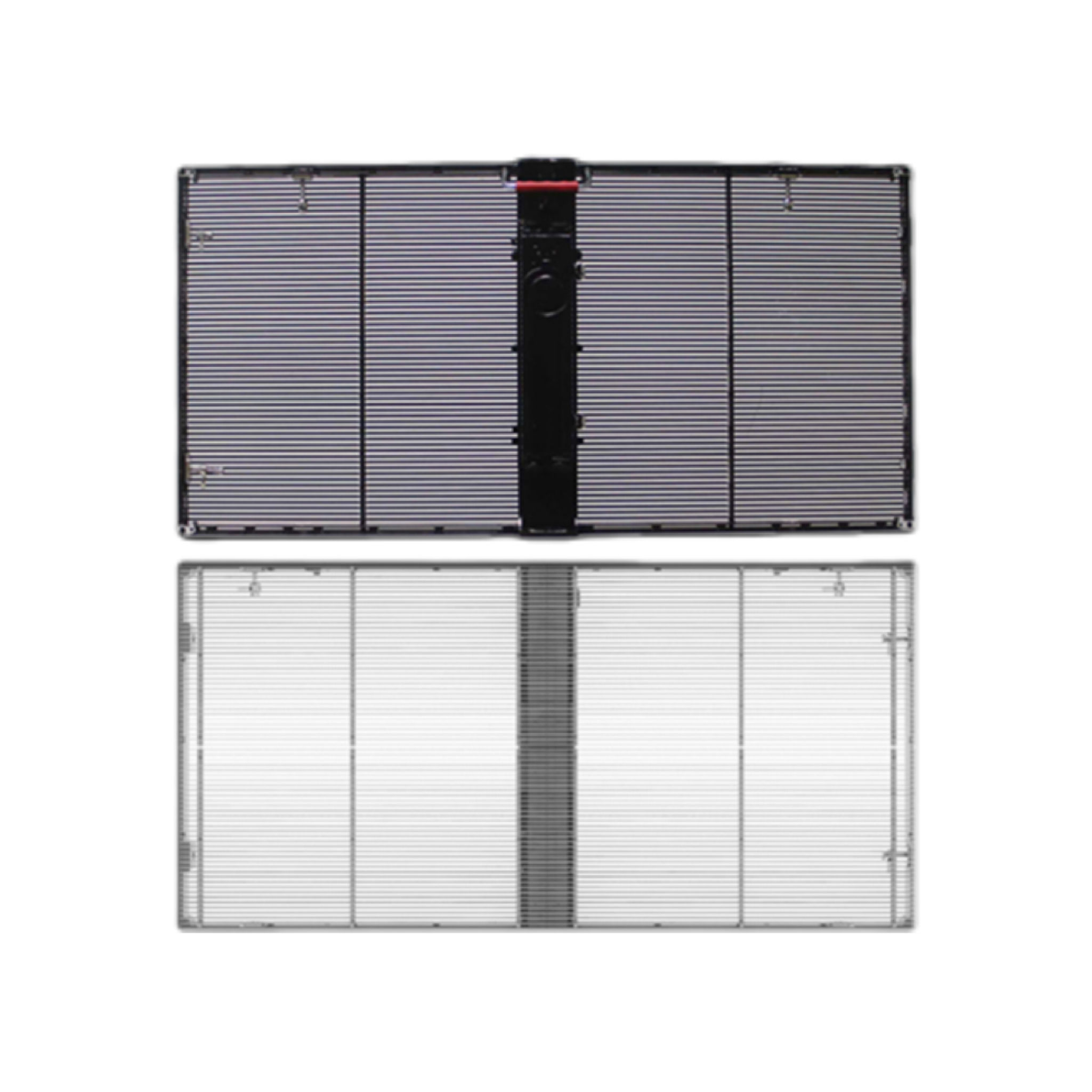

Introducing the Standard Indoor Transparent LED Display Solution: 600cd Indoor P3.91-7.81 Transparent LED Display Cabinet (1000×500mm). Designed for indoor glass applications, this 600cd/m² standard-brightness ribbon transparent LED screen delivers clear, energy-efficient visuals for everyday commercial environments. Perfectly integrated with glass walls, windows and architectural facades, the 1000×500mm standard cabinet balances transparency, lightweight structure and visual performance without compromising building aesthetics.
Technical Specifications
- Panel Type: Ribbon Bar Transparent LED Screen
- Brightness: 600cd/m² (Standard Indoor Grade)
- Pixel Pitch: 3.91mm (Horizontal) × 7.81mm (Vertical)

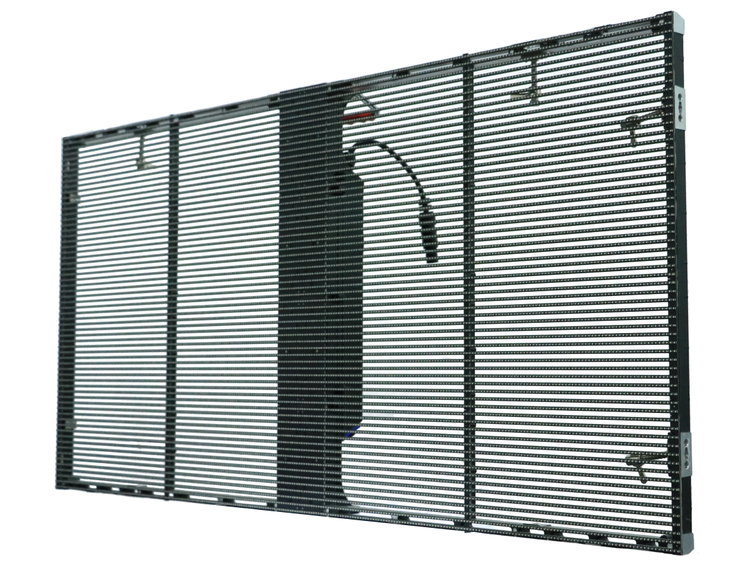

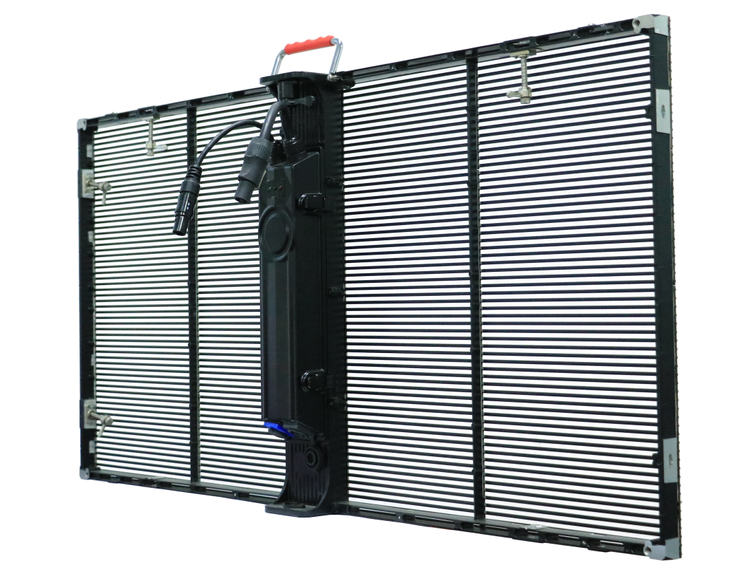

- Cabinet Size: 1000×500×80mm
- Structure: Hollow Ribbon Bar Design
- Refresh Rate: 1920Hz
- Cabinet Material: Die-casting Aluminum
- Protection Grade: IP34
- Weight: Ultra-light cabinet for easy installation
- Color Performance: 16.7M Full Color Gradient

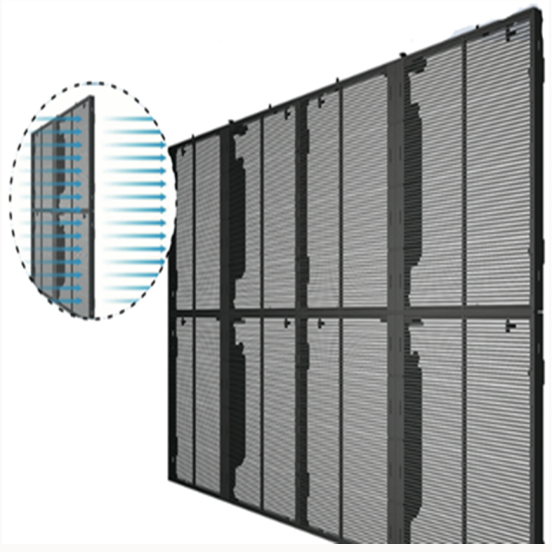

Key Advantages 🔍 True Transparency & Energy Efficiency The 600cd/m² standard brightness is ideally matched for normal indoor lighting, delivering crisp, vivid images in shopping malls, showrooms and display windows while keeping power consumption low. The unique horizontal and vertical dual-pitch structure retains excellent light permeability, preserving natural light and views.
🎯 Lightweight & Precise Structure 1000×500mm compact cabinet size enables flexible splicing for small-to-medium glass areas. Die-casting aluminum body is ultra-light, reducing building load pressure. Full front maintenance allows fast module replacement without removing the entire screen.
⚡ Stable Commercial Performance 1920Hz high refresh rate eliminates flicker for camera-friendly broadcasting. Optimized heat dissipation ensures long-term stable operation and extended service life. Low average power consumption keeps energy efficiency high for continuous commercial advertising.
🏗️ Strong Adaptability Modular 1000×500mm cabinets support flexible screen size combinations and irregular shape customization, adapted for a wide range of indoor commercial scenarios.
Application Scenarios Ideal for indoor commercial environments with normal ambient lighting: luxury store windows, shopping mall glass walls, exhibition booths, hotel lobbies, corporate exhibition halls and stage transparent background screens.
Ready to upgrade your glass advertising effect? This 600cd standard-brightness P3.91-7.81 transparent LED screen turns ordinary glass into high-end dynamic visual media.
Product Highlights

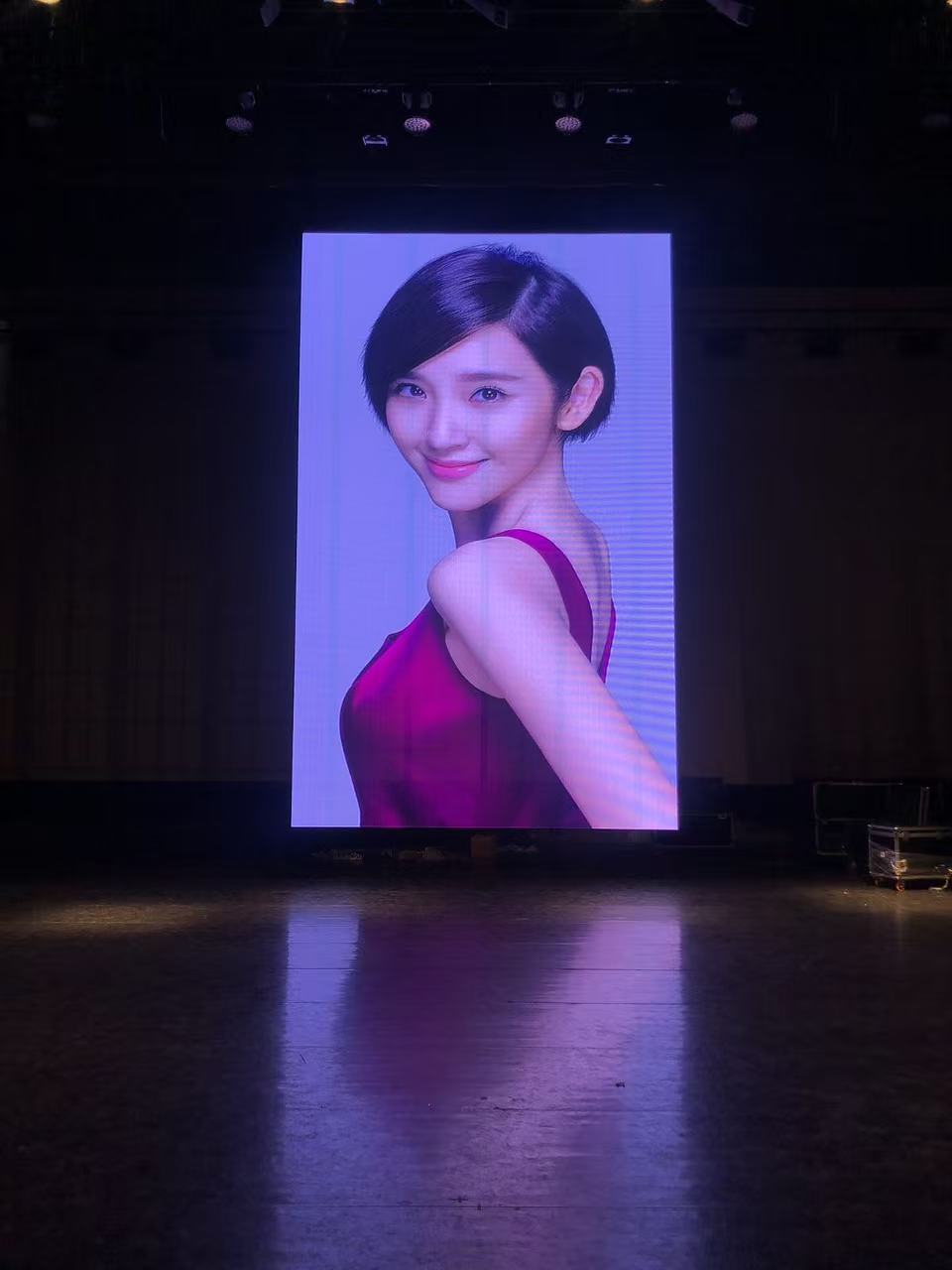

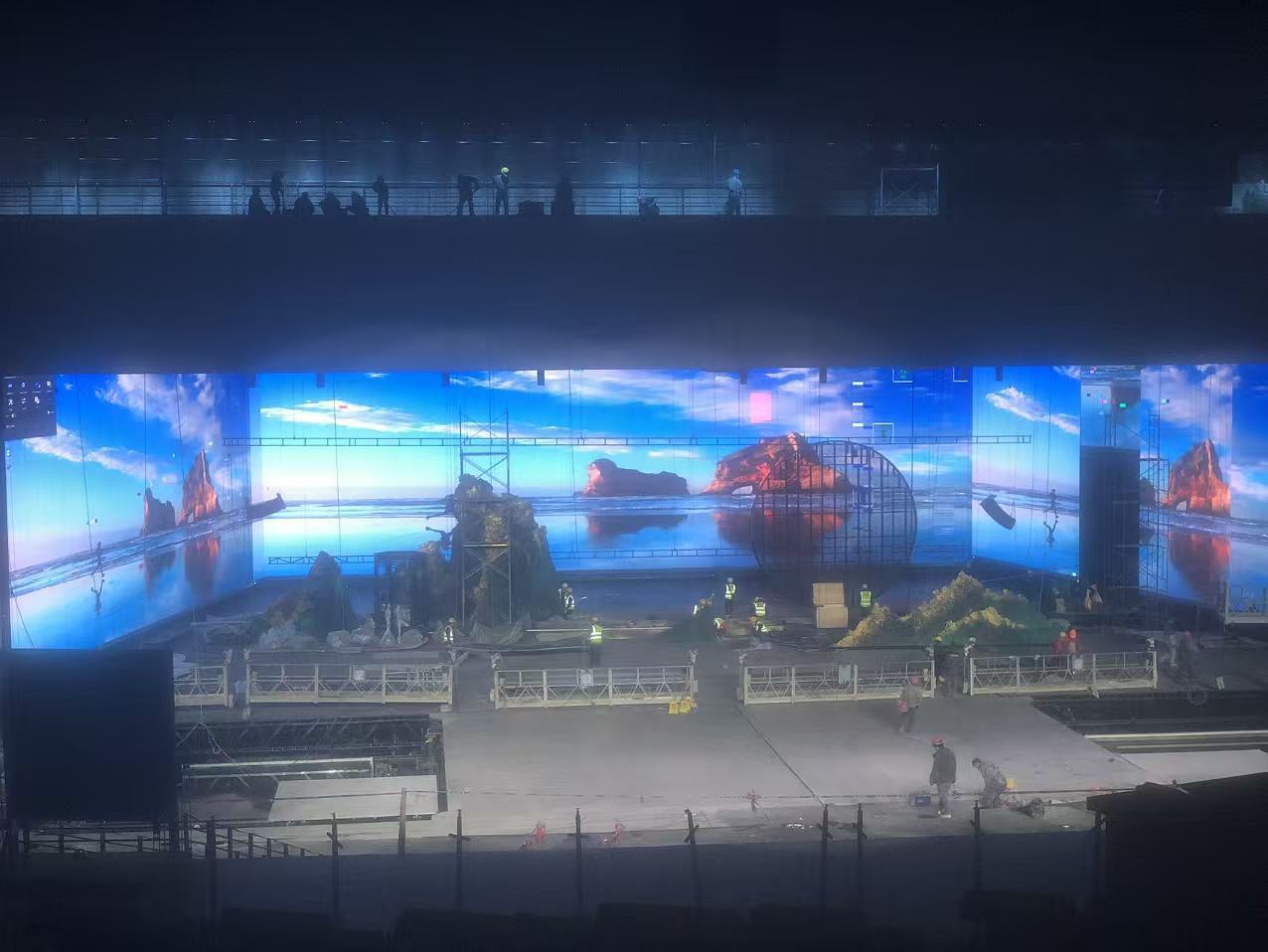

Product Case
