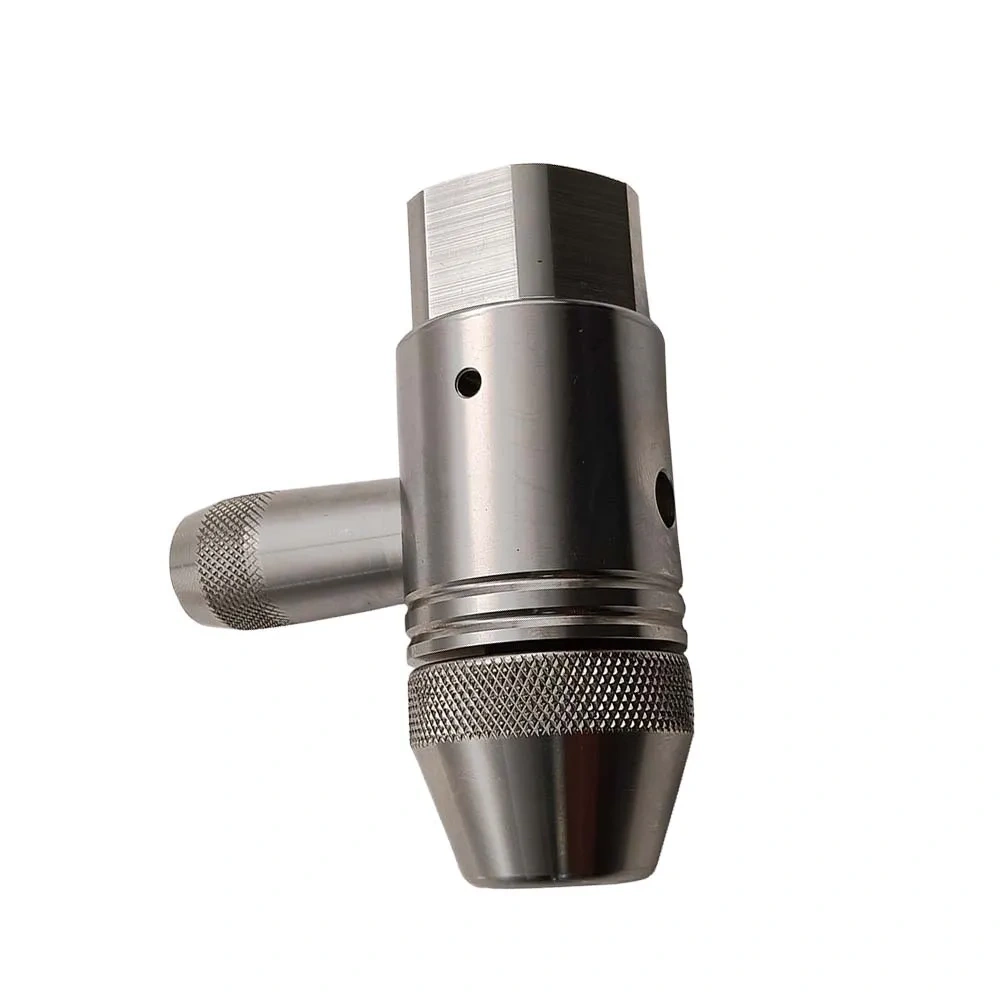

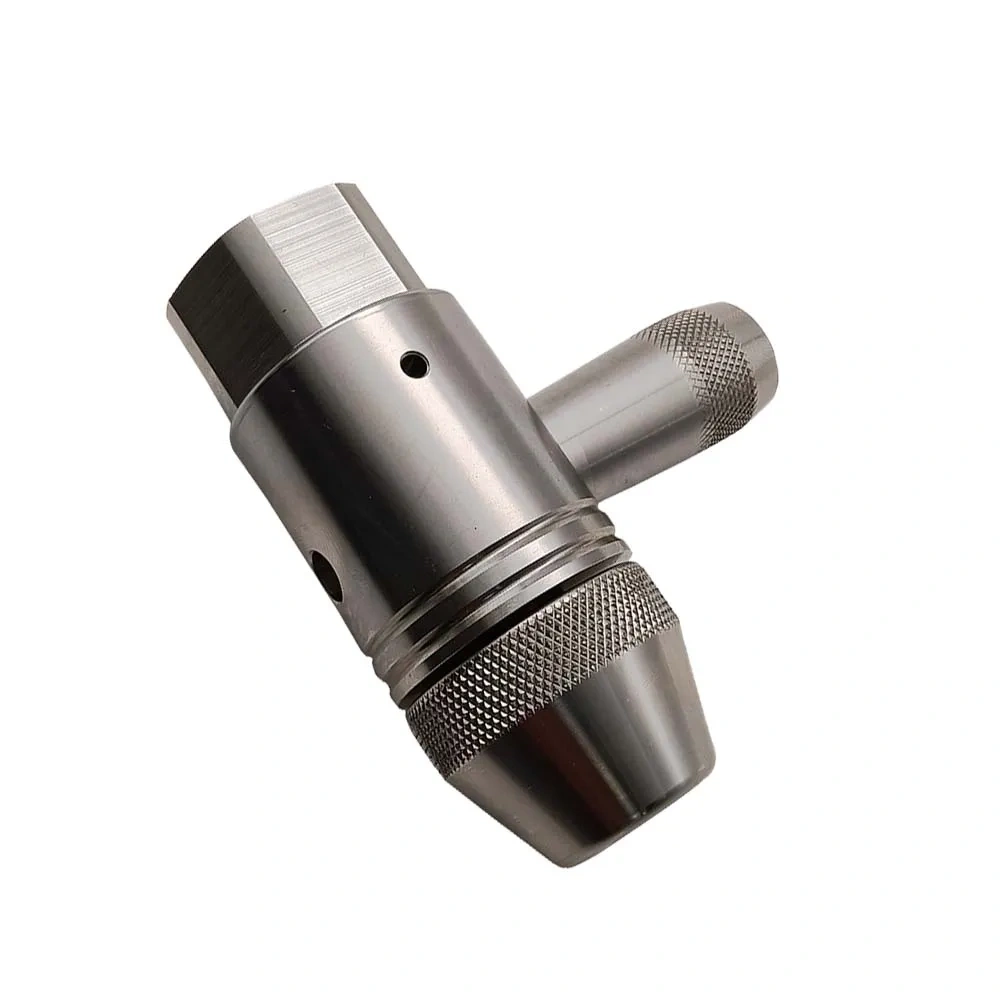

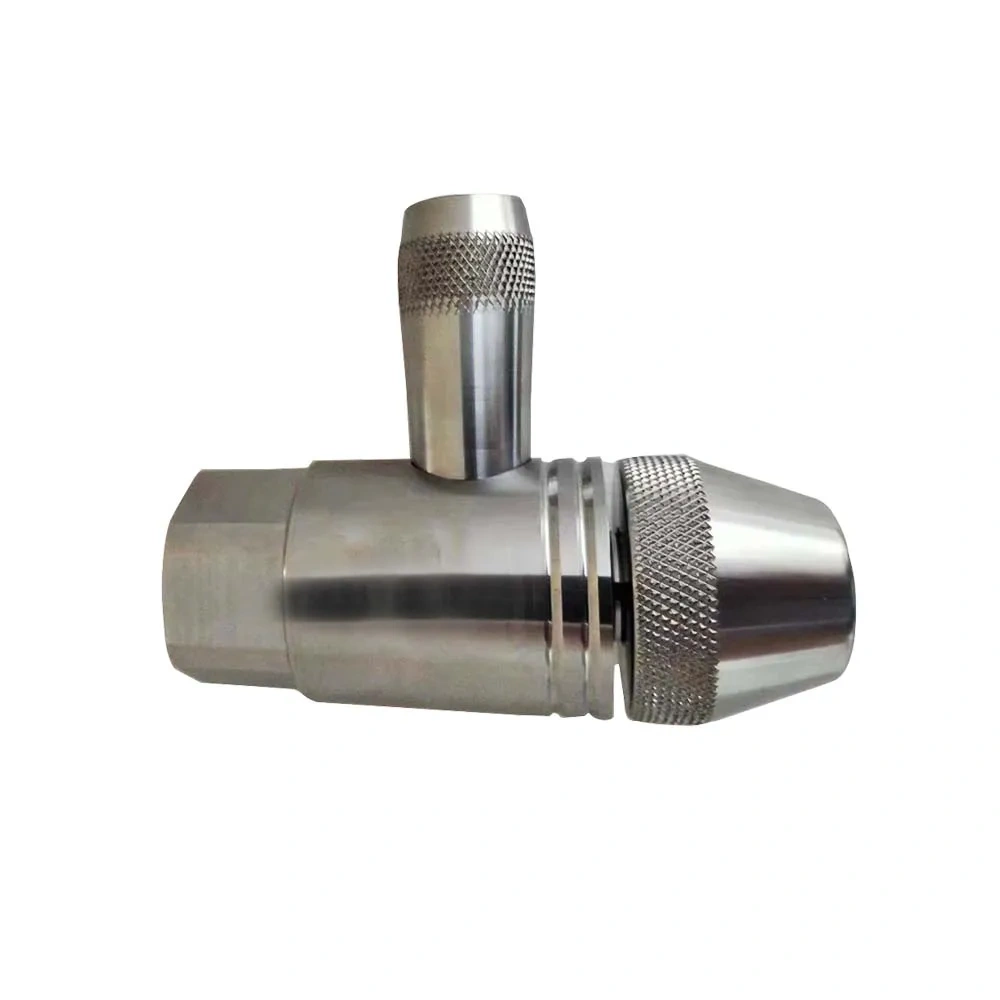

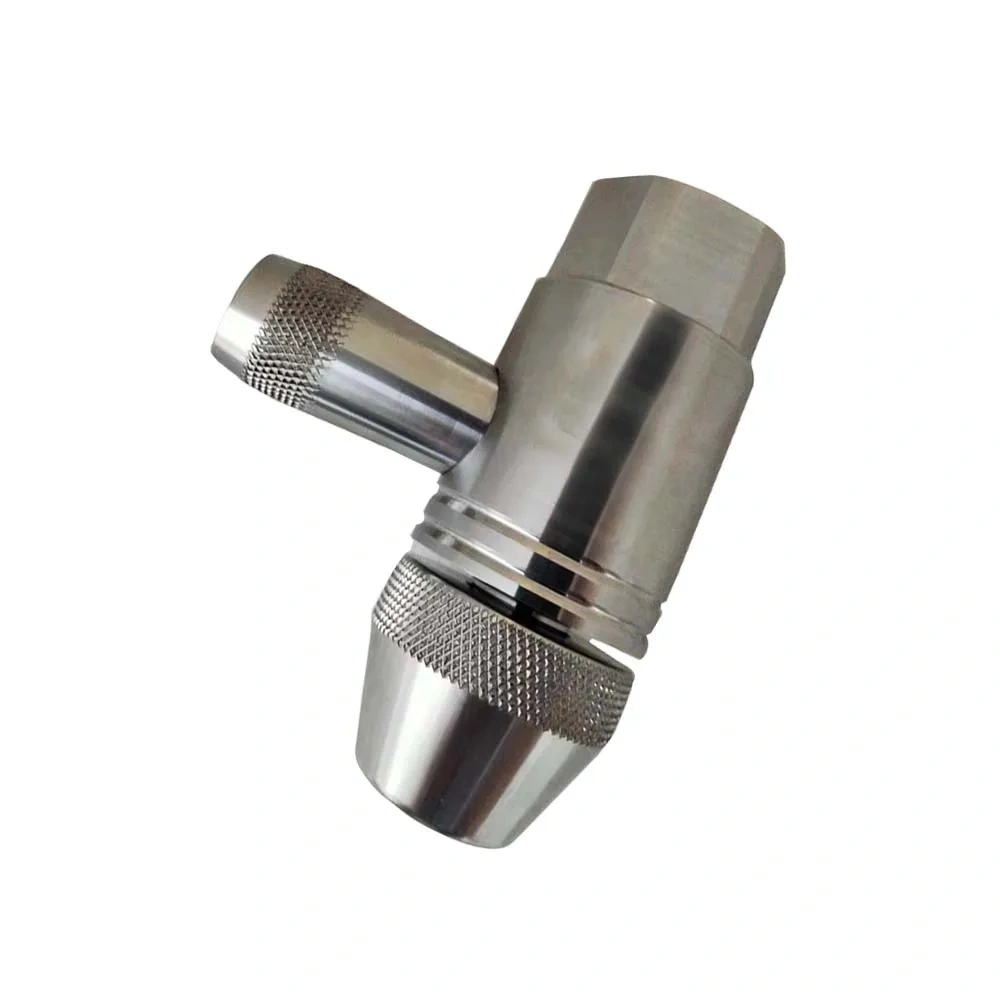

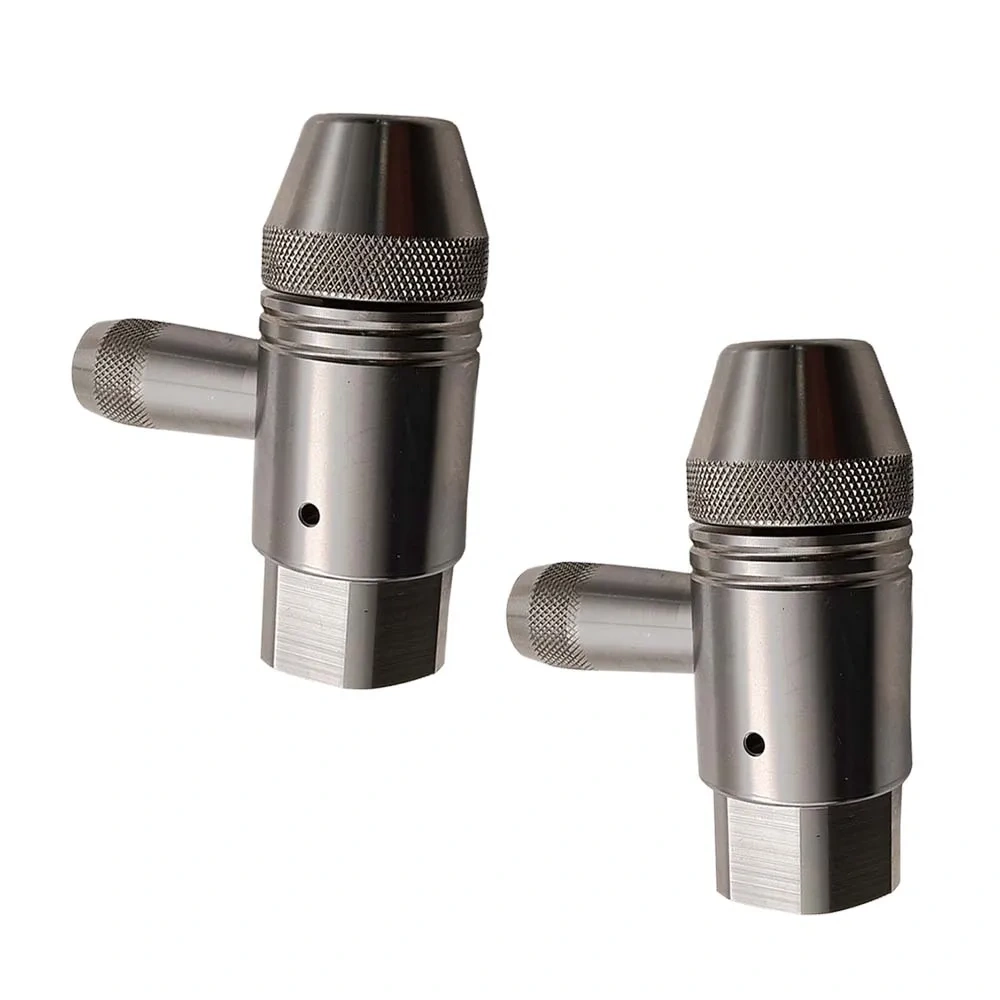

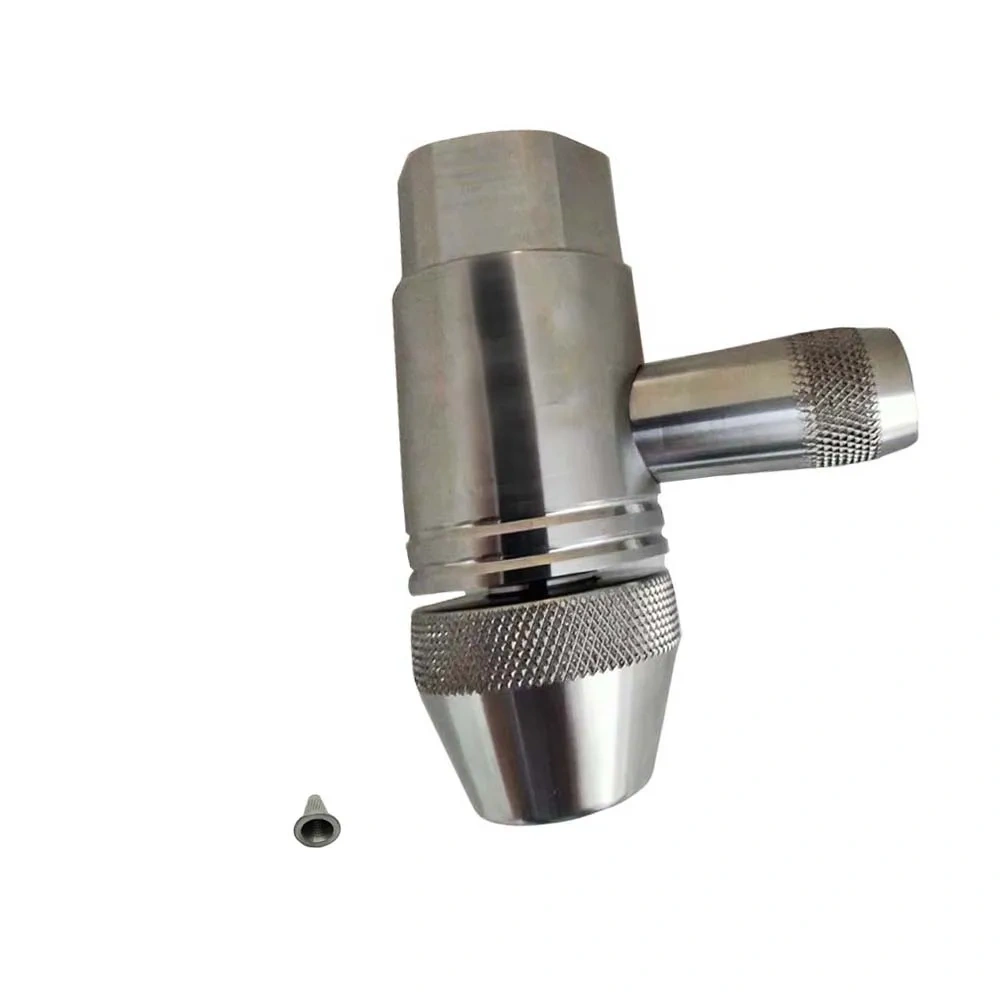

Water jet spare parts , Abrasive Nozzle Assembly, Single Port, LH , British Threading , SLPRO, 90K, Diamond Cutting Head [ (diamond from Italy Gardella) ] It use 9.45mm nozzle in cutting machine（ The working life depends on the pressure of the machine, water quality and other factors. The service life provided by the manufacturer is for reference only）
Details:
Replace model number : 204814xx
If you need other sizes, please contact customer service before order. Diamond Orifice size have 0.17mm,0.20mm,0.28mm,0.30mm,0.40mm,0.46mm and so on. Other IDE Assembly Diamond Orifice :
0.007" / 0.17 mm 20481407
0.010" / 0.25 mm 20481410
0.011" / 0.28 mm 20481411
0.012" / 0.30 mm 20481412
0.013" / 0.33 mm 20481413
0.014" / 0.35 mm 20481414
0.016" / 0.40 mm 20481416
0.018" / 0.46 mm 20481418......
MOQ : 1set
Product Size : standard production, status is 100%new
Warranty : available（All parts have been checked by our QC before ship out）
Compatible for : waterjet cutting head parts
IDE Diamond Heads Assy - The mixing chamber that changed the industry! This is the 1-piece body, diamond, mixing chamber that simplifies running a waterjet and reduces abrasive consumption. This version has 1 ports in the body - 1 port for abrasive feed or just for convenience to abrasive feed line (if not using the Adjustable Nozzle Body). Last 2-digits are orifice size. For example, 0.013" would be 20481413. This mixing chamber/cutting head will fit many standard nozzle body connection. Available as a Kit with Short Stop Filter for diamond protection or without; using the filter to protect the diamond is required for warranty protection and is just highly recommended as protection for the diamond.
Used for : waterjet cutting head machine
Application scenario : glass, plastic, paper, ceramic, stone and other fields
Characteristic : high hardness、excellent wear resistant
Highlight the advantages : long service life . Our factory prodoucts are made in high quality materials ....
Attention:
Warranty consideration for this diamond cutting head is void when used without a short-stop/thimble style cutting head filter.

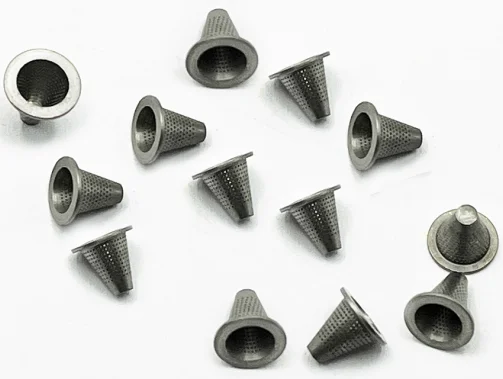

Short Stop Filter For Protect Diamond Orifice （Use with Short stop filter to better protect orifice, It makes water is filtered cleaner and purer and the orifices service life will be very longer）
