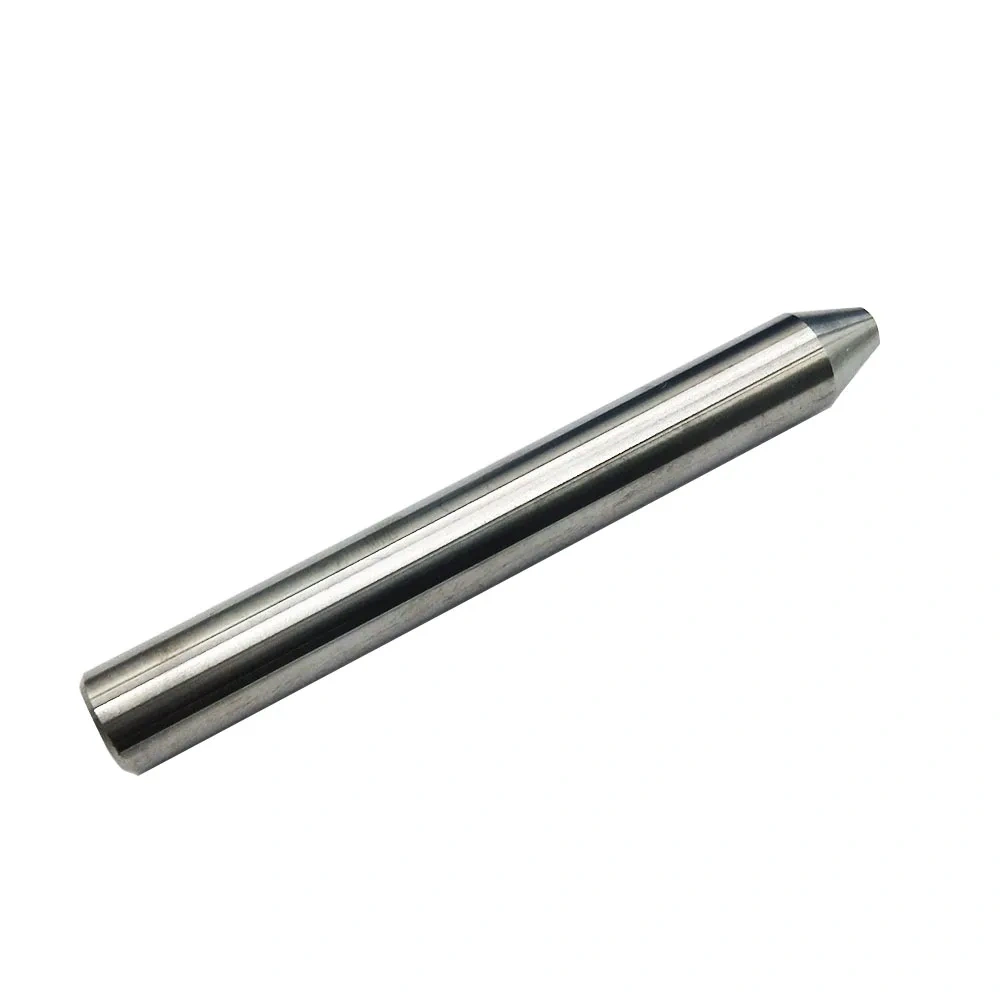

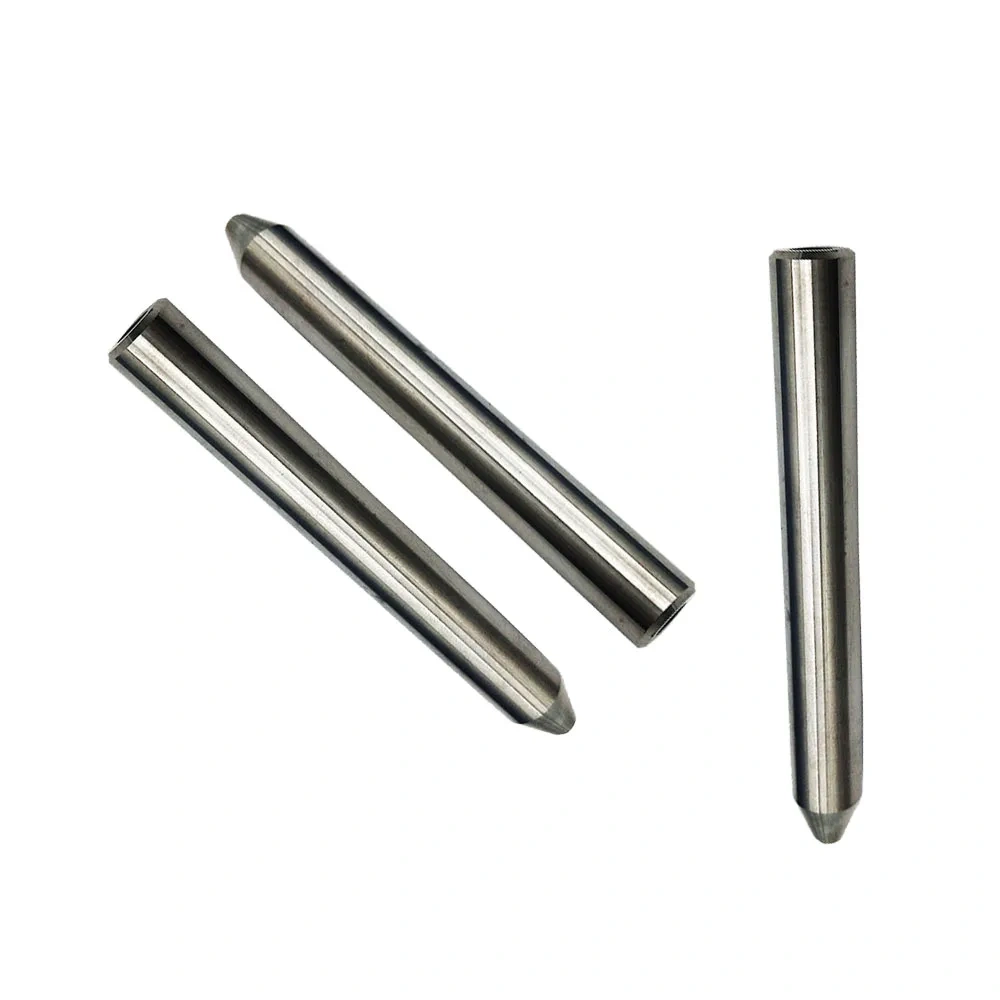

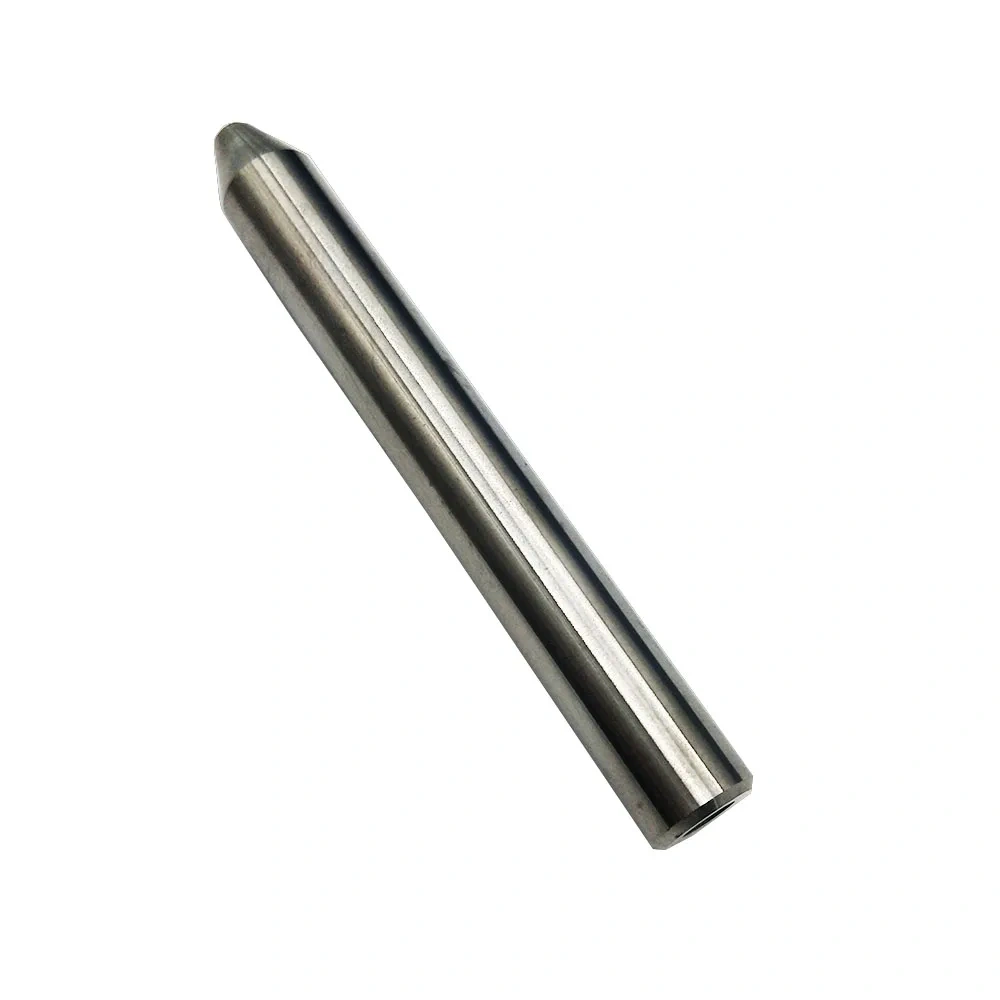

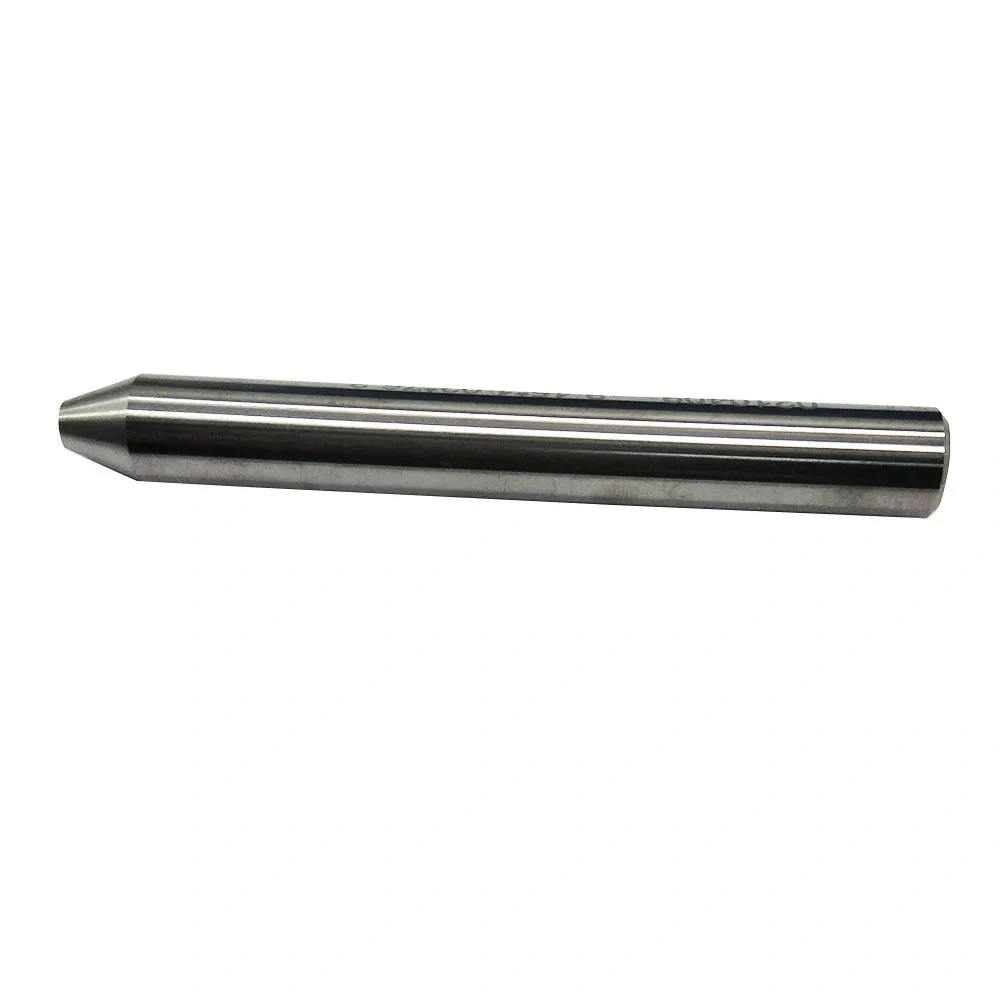

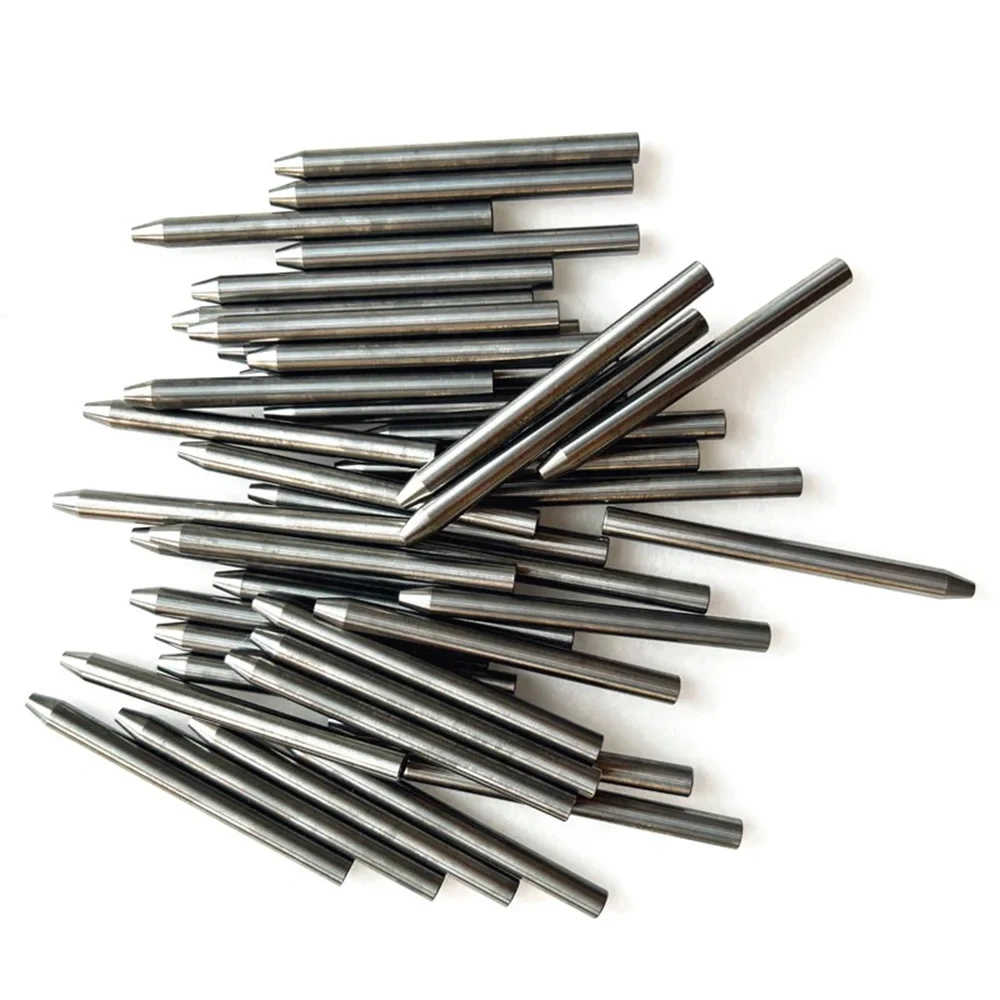

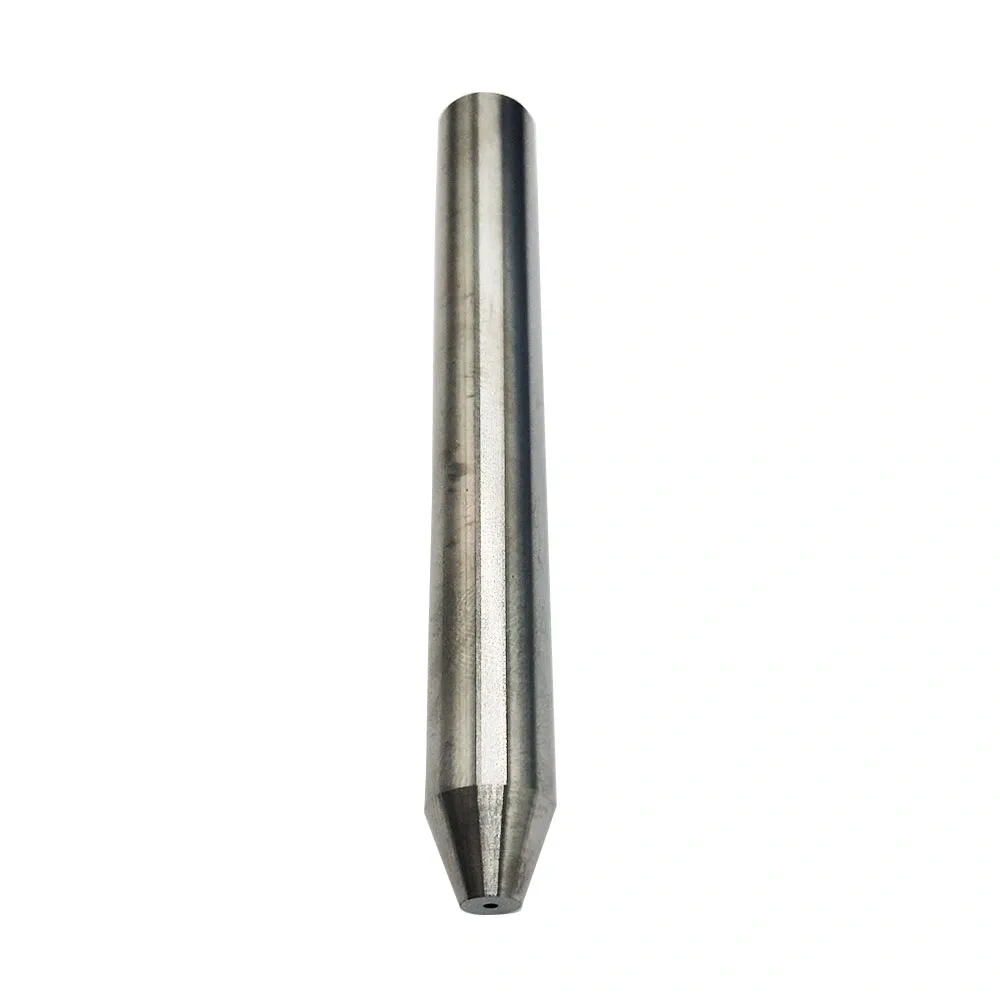

Water jet spare parts , water jet cutting head long life Nozzle .372 Focus Tube ( 9.45x0.76x76.2mm / 9.45x1.02x76.2mm ect)
High quality sand pipes of various sizes
Details:
Replace model number : K10126969, A12784-030-30
MOQ : 1pc
Product Size : standard production, status is 100%new
Compatible for : waterjet cutting head
Used for : waterjet cutting head machine
Application scenario : glass, plastic, paper, ceramic, stone and other fields
Characteristic : high hardness、excellent wear resistant
Highlight the advantages : long service life . Our factory prodoucts are made in high quality materials ...
Reminder:
1.Installation steps of sand pipe:
1. Ensure that the orifices nozzle seat and sand pipe jacket working face are clean and free of dust;
2. First install the gem nozzle to test the straight line of water column, and then install the sand pipe;
3. Debug with low-pressure sand free water until the ejected water column is straight without scattering, which proves that the sand pipe is concentric with the gem nozzle before normal cutting and pressurization;
4. After using the sand tube for 10-20 hours, please rotate the sand tube 120 degrees.
Describe waterjet Nozzles:
Waterjet cutting head Nozzle material is high-quality tungsten steel imported from Germany and the United States. Under normal pressure, the machine pressure is less than 320 MPa, and the working life of nozzle is about 200 hours; When the machine pressure is greater than 320 MPa and less than 380 MPa, the working life of nozzle is about 150 hours; When the machine pressure is 420 MPa, the working life of nozzle is about 120 hours.
For reference only, the working life of nozzle is determined according to the pressure of each machine, the working time of starting the machine, what the cutting material is and how thick the cutting material is.Waterjet cutting head nozzle also has 6.0mm, 6.35mm, 7.14mm, 7.62mm, 7.97mm, 9.45mm 101.6mm ect and supports customization. If you need any other size and types of nozzle, feel free to contact me please.
Related waterjet spare parts
If you are interested the parts in the pictures below shown then you can click the below picture directly , or please contact with us.
Our factory produces all kinds of water jet cutter machine accessories, including cutting head, on off valve repair kit, nuzzle, orifices, HP seal, check valve body, HP cylinder, high pressure ceramic plumber, bled down valve, intensifier, pump ect. The accessories of our waterjet cutting machine are high quality and wear-resistant. They are based on garnet abrasive cutting medium, rely on high pressure water jet cutting spare parts in basic and apply in oil (gas) cutting pipe,architecture, ceramics, glass cutting,steel etc. it is a new type, environmental protection, safe way to cut.
Packing & Delivery
Packing Details : For general parts,Industrial packege with standard carton box or wooden box+ pallent. For large objects , we can choose order cabinet or bulk-cargo by sea ship. If your country has a more favorable delivery,we will choose logistics according to your requirements else.
Delivery Details : We ship to worldwide, it will be ship within 2-15 days after payment.
We also can help you send it by DHL or FEDEX or TNT or EMS or UPS and so on ,if you requirement.
