Water jet spare parts , Abrasive Nozzle Assembly, IDE®-III, DP, (.281 ID DUAL PORT ) , Diamond Cutting Head [ It work about 800hours (diamond from Italy Gardella)
] It use 7.14mm nozzle in cutting machine （ The working life depends on the pressure of the machine, water quality and other factors. The service life provided by the manufacturer is for reference only）
Details:
Replace model number :301329-2-xx
If you need other sizes, please contact customer service before order. Diamond Orifice size have 0.17mm,0.20mm,0.28mm,0.30mm,0.40mm,0.46mm and so on. Other IDE Assembly Diamond Orifice :
0.007" / 0.17 mm 301329-2-07
0.010" / 0.25 mm 301329-2-10
0.011" / 0.28 mm 301329-2-11
0.012" / 0.30 mm 301329-2-12
0.013" / 0.33 mm 301329-2-13
0.014" / 0.35 mm 301329-2-14
0.016" / 0.40 mm 301329-2-16
0.018" / 0.46 mm 301329-2-18...
MOQ : 1set
Product Size : standard production, status is 100%new
Warranty : available（All parts have been checked by our QC before ship out）
Compatible for : waterjet cutting head parts

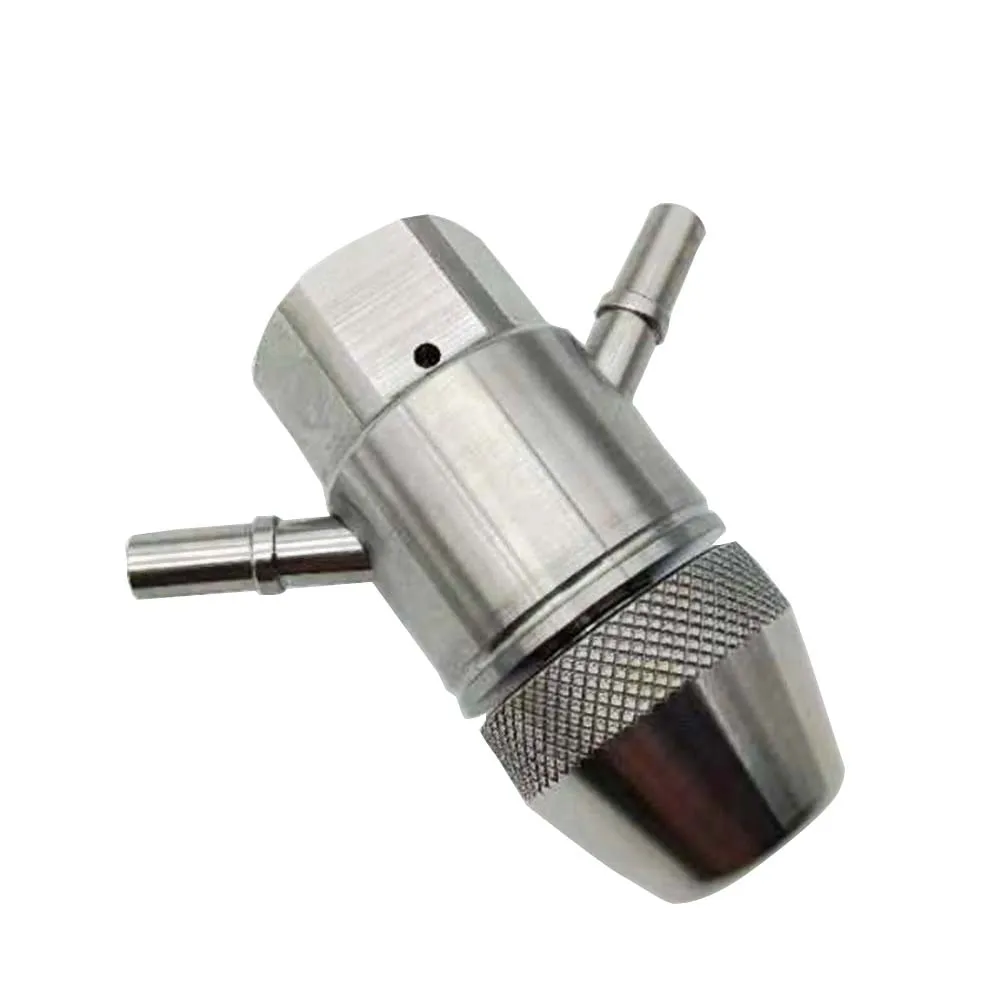

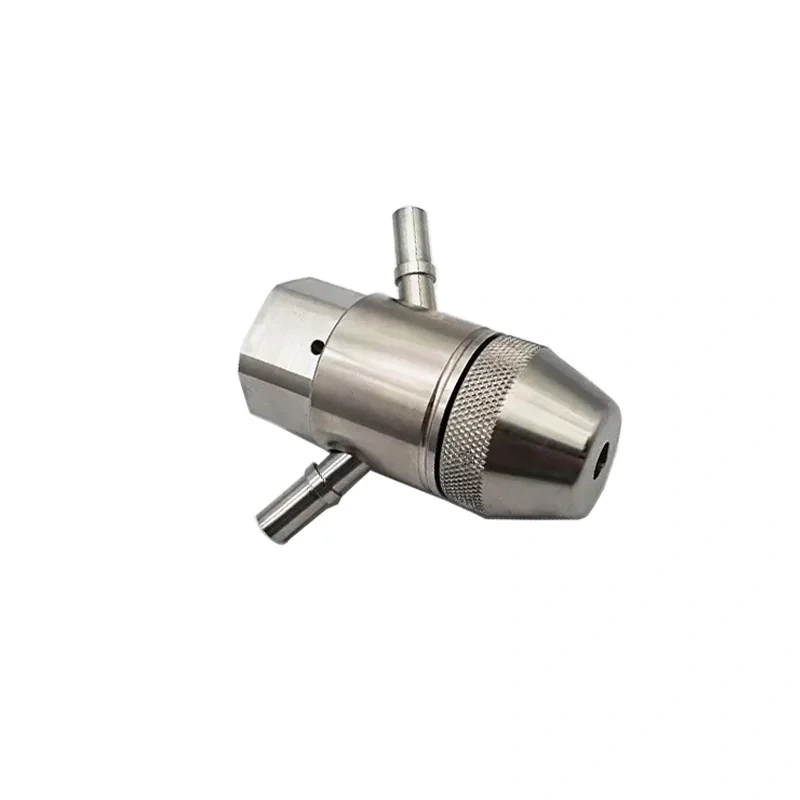

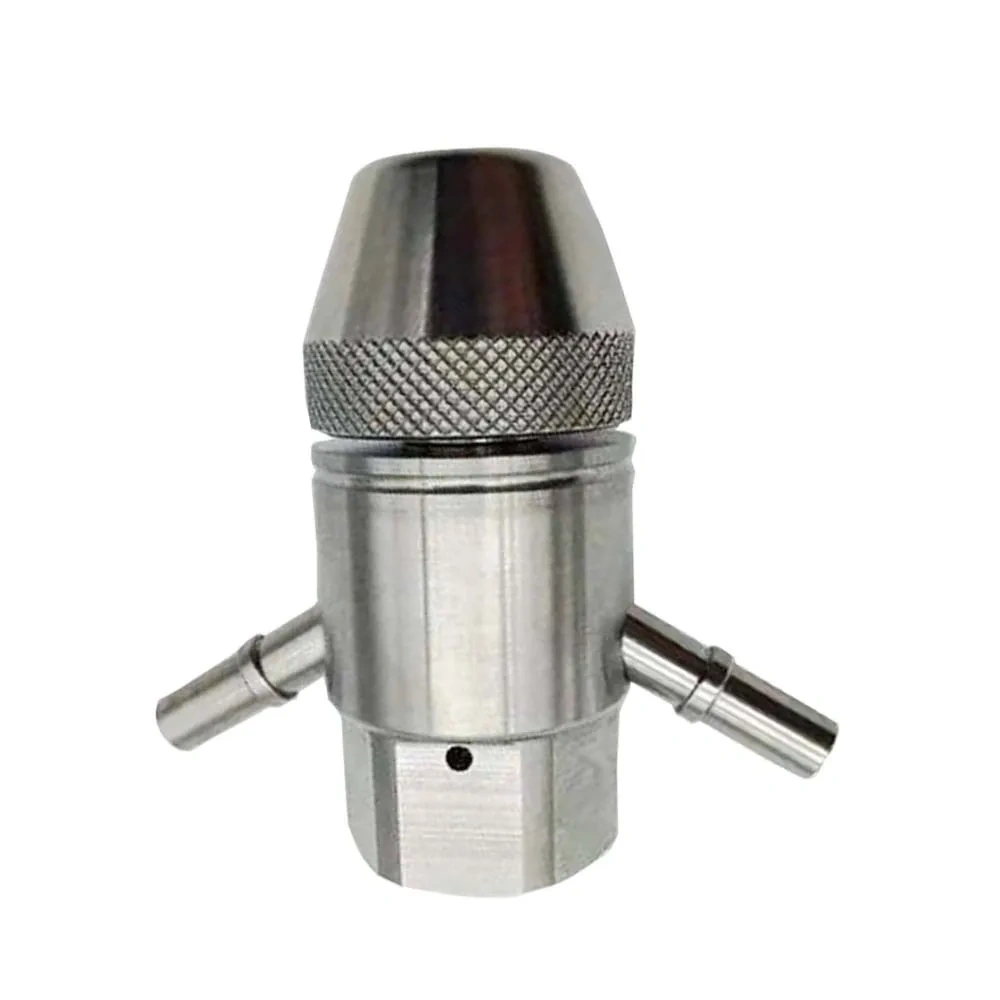

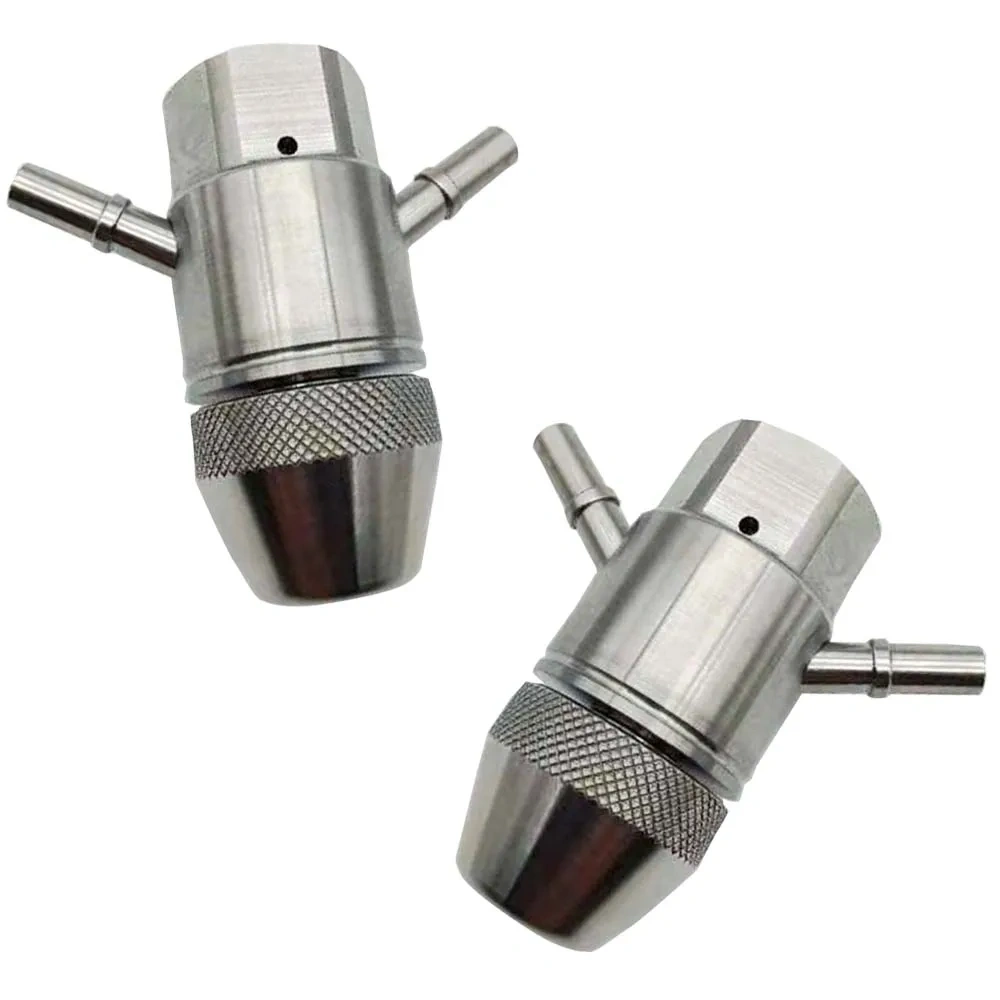

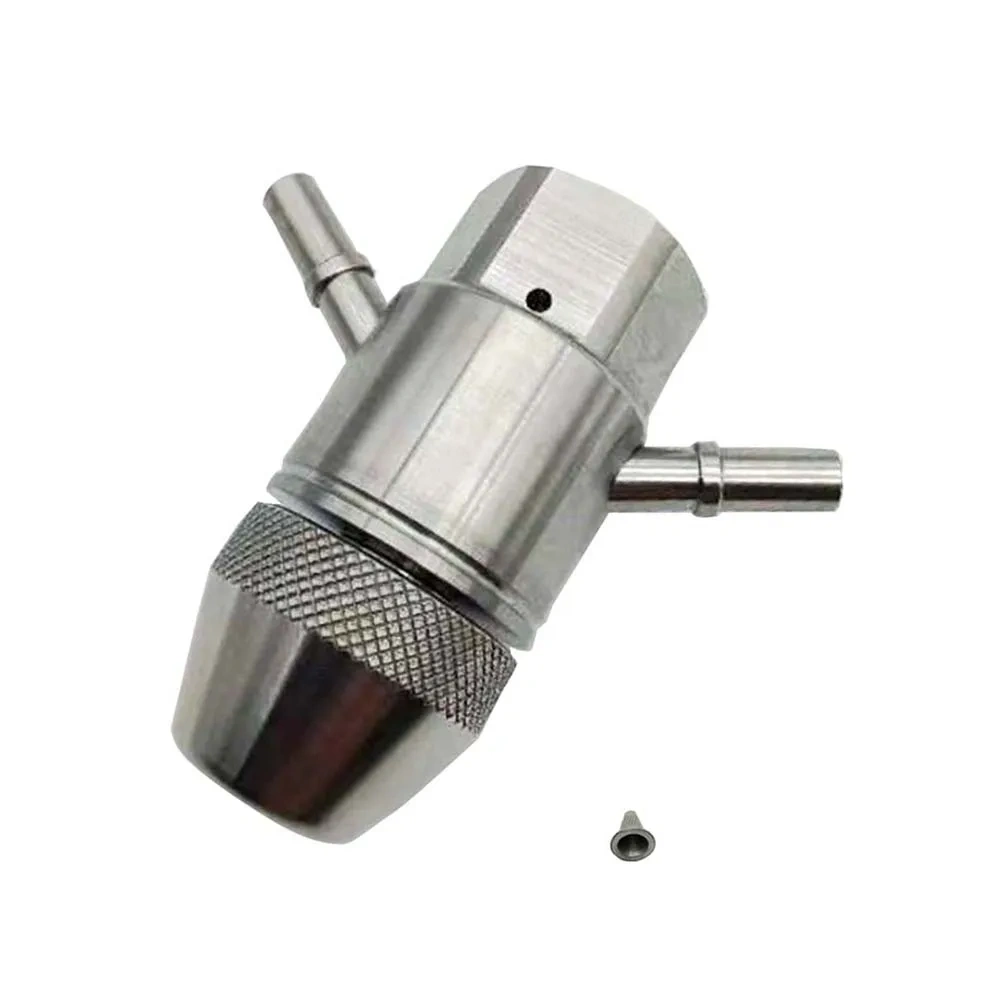

IDE III - The mixing chamber that changed the industry! This is the 1-piece body, diamond, mixing chamber that simplifies running a waterjet and reduces abrasive consumption. This version has 2 ports in the body - 1 port for abrasive feed, 1 port for vacuum assist or monitoring or just for convenience to abrasive feed line (if not using the Adjustable Nozzle Body). Last 2-digits are orifice size. For example, 0.010" would be 301329-2-10. This mixing chamber/cutting head will fit any standard P-III style nozzle body connection. Available as a Kit with Short Stop Filter for diamond protection or without; using the filter to protect the diamond is required for warranty protection and is just highly recommended as protection for the diamond
Used for : waterjet cutting head machine
Application scenario : glass, plastic, paper, ceramic, stone and other fields
Characteristic : high hardness、excellent wear resistant
Highlight the advantages : long service life . Our factory prodoucts are made in high quality materials ....
Attention:
Warranty consideration for this diamond cutting head is void when used without a short-stop/thimble style cutting head filter.
